Lorentz PV Disconnects

These are simple and cost effective units used as part of a professional system installation to allow connection of PV module strings and include appropriate DC rated disconnect switch in an IP54 weatherproof enclosure.

PV Disconnect LZ-440-40-1 & LZ-440-40-6

These have provision for optional lightning surge arrestors which connects through a mounting hole in the disconnect enclosure. (Lightning surge protectors must be ordered separately).

• Designed for PS150 – PS4000 pump systems.
• Max. voltage 440 V DC
• Output cable size 4 - 10mm²

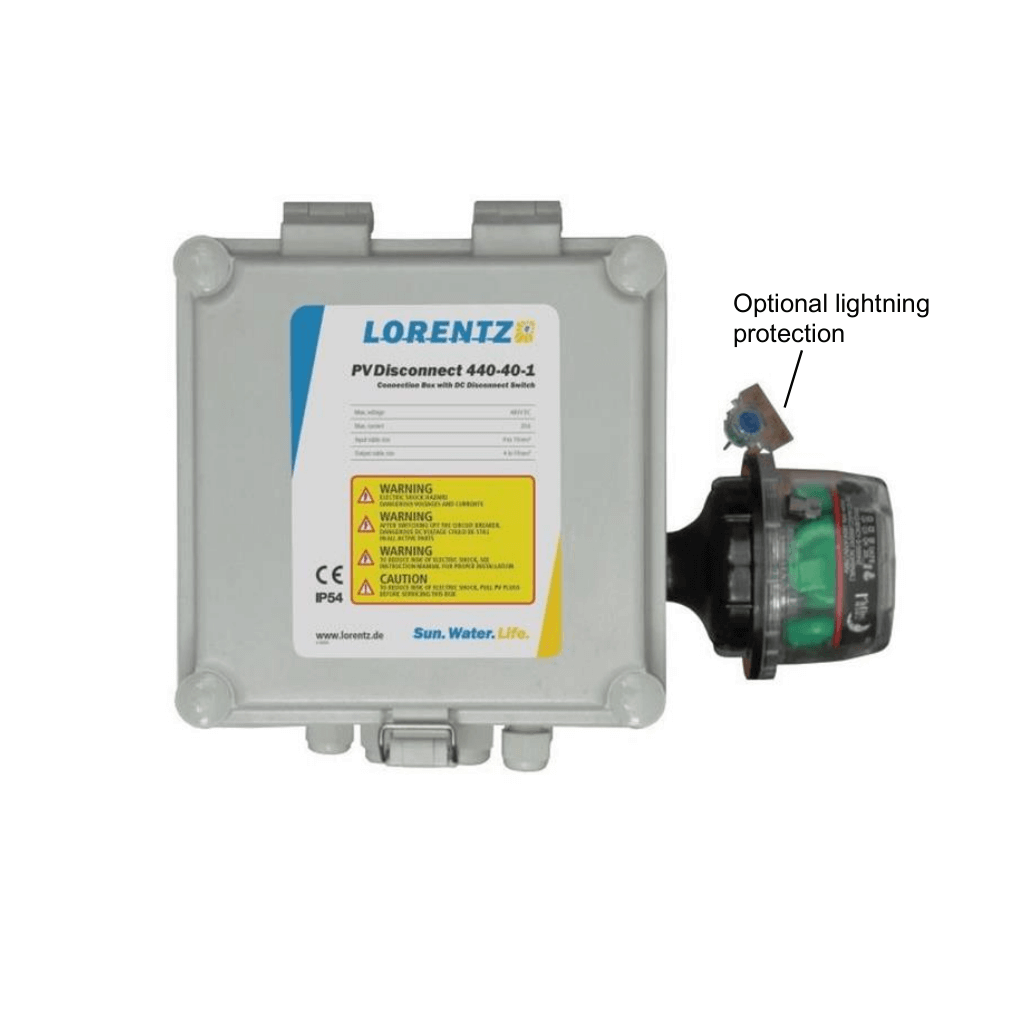

LZ-440-40-1

• For wiring up one PV-string.
• Max. current: 40 A
• String cable size: 4 - 10 mm²

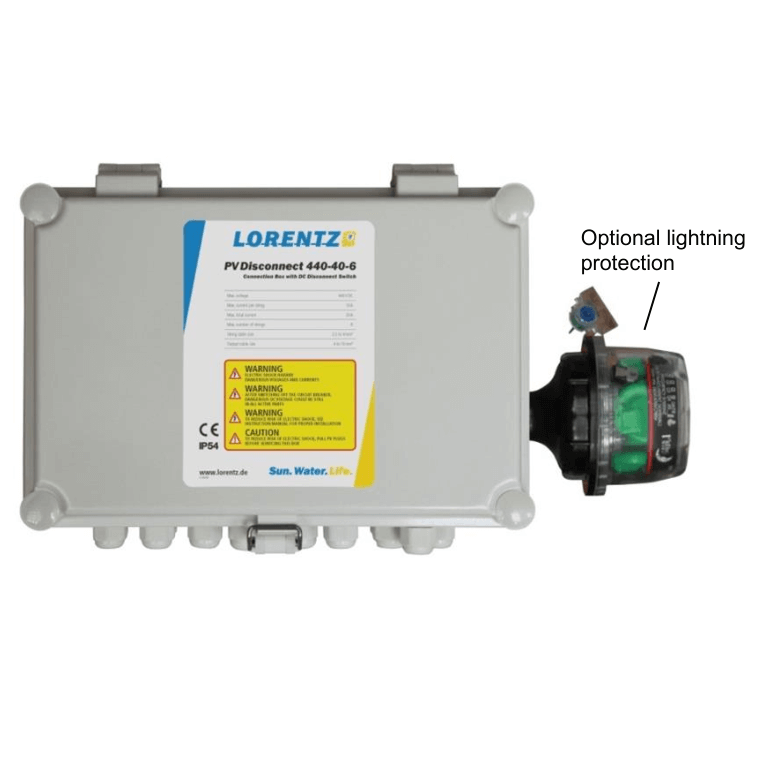

LZ-440-40-6

• For wiring up to 6 PV-strings in parallel
• Max. current per string: 10 A
• Max. total current: 40 A
• String cable size: 2,5 - 4mm²

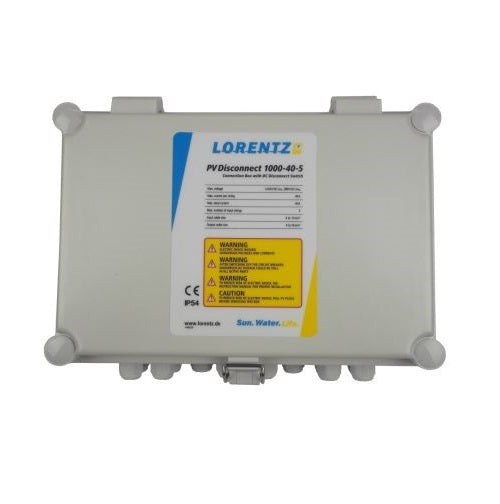

Lorentz PV Disconnect LZ-1000-40-5

• Designed for PSk2 / PSk pump systems
• Wiring of up to 5 PV-strings in parallel
• Max. voltage: 1,000 V DC (Voc); 880 V DC (Vmp)
• Max. current per string: 40 A
• Max. total current: 40 A
• Max. no. of strings: 5
• String cable size: 4 - 10mm²
• Output cable size: 4 - 16mm²
