REC TwinPeak 5 Black
REC TwinPeak 5 Black Series solar panels feature an aesthetically-pleasing full-black design with high panel efficiency and power output, enabling customers to get the most out of the space used for the installation. Combined with industry-leading product quality and the reliability of a strong and established European brand, these panels are ideal for residential and commercial rooftops worldwide.
- Module dimensions: 1899 x 1040 x 30 mm
- Weight: 21.6 kg
- Black frame & back-sheet
- 20 year product standard warranty (25 years if installed by certified REC Solar Professional)
- 25 year linear power output warranty
- Max. performance degradation of 0.5% p.a. from 98% in year 1
- 25 year labour warranty (when installed by an REC Solar Professional): gives added protection in case a panel needs to be serviced
- Made in Singapore
More Power Output per sq m
REC TwinPeak 5 panels are packed with the same advanced REC TwinPeak technologies that have won REC multiple awards. This p-type mono variant offers higher power output per square metre of panels installed.
More Performance in Shaded Conditions
Panels with REC TwinPeak technologies have a unique “twin” design, which enables them to generate electricity even when they are partially shaded. Over time, you get a higher yield from your installation.
More Cost Efficient
By delivering more power per square metre, you need fewer REC TwinPeak 5 panels to generate the same power. This means quicker installation times and the need for fewer components such as clamps and racks. All of which reduces your overall costs, shortening the payback time.
Features & Benefits
Half-cut mono cells (132 per panel) to give:
- Reduced resistance = reduced power loss
- Higher fill factor = better energy yield especially at times of high irradiance
- Better shading performance
PERC (Passivated Emitter Rear Cell, also known as Backside Passivation) for:
- Higher efficiency
- Less heat generated = more efficient conversion of light to electricity
- More infrared light absorbed
More bus bars provide;
- Lower cell resistance
- Increased light capture by the cells
- Improved efficiency and reliability
3 part split junction box design
- Reduced internal panel resistance
- Cooler panel temperature for increased reliability and greater power output
Super strong Frame Design

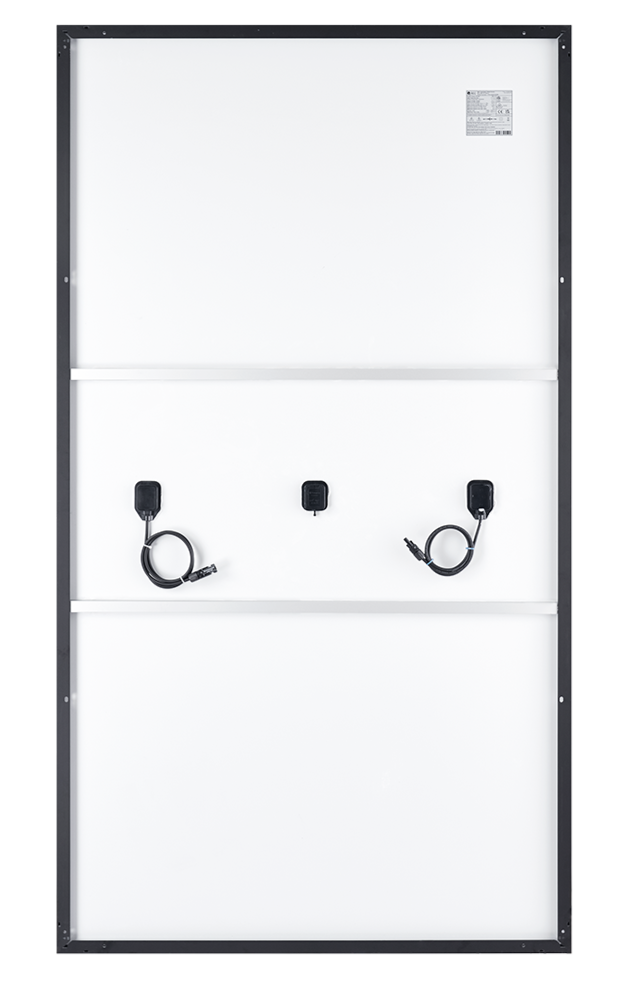

- REC TwinPeak 5 come with extra support bars across the rear of the panel, greatly boosting its strength and durability, and allowing loads of up to 7000 Pa – far exceeding the 5400 offered by conventional panels.
Good to know
Technical Specifications
SKU | REC-405TP5/BLK |
---|---|
Power Rating | 405Wp |
Cell Technology | Mono c-Si p-type |
Connection | Stäubli MC4 |
VOC | 45.1 |
VMPP | 38 |
ISC | 11.43 |
IMPP | 10.67 |
Height | 1899 |
Width | 1040 |
Depth | 30 |
Weight (kg) | 21.6 |
Full Pallet Quantity | 33 |
13.6m Truck Quantity | 858 |
Panels Per GP | 792 |
Warranty | 20/25 |
IP Rating | IP68 |
On Grid / Off Grid | On Grid, Off Grid |
Intrastat Commodity Code | 85414300 |
Downloads /
Documents
*see manufacturer's documentation for further information
