Collection: Solar Cable and Connectors

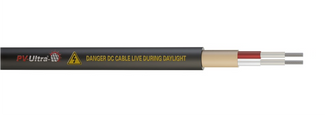

This TÜV approved solar PV (photvoltaic) cable is specifically designed for use in solar PV systems. Suitable for internal, external installations and conduit systems. Design life of 25+ years.

This cable is designed to meet the requirements of the DC interconnections between the solar panels and the other components of the photovoltaic system, such as the isolators and inverters.

PV-Ultra cable with galvanised steel wire armour (SWA) to provide mechanical protection, making it ideal for direct burial and installation in demanding environments.

Made by MultiContact and guaranteed for use with their connectors.

• Locking fit

• IEC 62852 DC voltage rating - 1000V
• IEC 62852 DC Current rating - 39A (4-6sqmm cable), 45A (10sqmm cable)


The Staubli MC4-Evo2 is latest version of the MC4 connector.

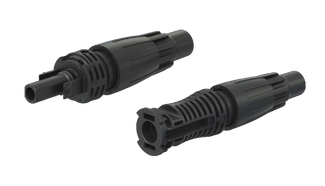

The MC4 is now available in an easy-to-use snap-in PV connector. The MC4-Evo Ready is quick to install as it enables crimp-free assembly without the need for special tools allowing savings in time whilst still ensuring Stäubli quality.

Stäubli MC4 branch connectors for parallel connections.

• Rating 1000V, 40 A (with 4 mm² cable)
• Compatable with conductors from 2.5 to 6 mm²
• Temperature rating: up to 85 °C ambient temperature

These cables have a male connector on one end and a female connector on the other. They can be used to extend PV module output cables or cut to provide a male & female cable from module to junction box.
