Solarport
Solarport is the UK’s leading manufacturer of solar ground mount systems. Designed and manufactured in the UK from high-quality structural grade steel, providing cost-effective and easy-to-assemble systems for Commercial and Residential projects.
- Unparalleled expertise across all scales and sectors – Utility-scale, Commercial & Residential
- Up to 25-year system warranty (warranty must be registered with Solarport directly)
- A range of foundation options available
- Available in 20°, 25° and 30° system angle
- All systems are fully structurally calculated
- Utilising cutting-edge design technology
Why Solarport
As a leading manufacturer specialising in ground solar mounting solutions, Solarport is the clear choice for installers seeking solutions for both commercial and residential projects. With manufacturing based in the UK, Solarport’s systems are dependable and easy to install.
Warranties
Solarport’s mounting systems come standard with a 25-year warranty when registered directly with Solarport. Corrosion warranty can be registered here: https://www.solarport.co.uk/modular-warranty-registration
Solarport Products
2-in-Portrait
The 2-in-Portrait system enhances energy generation with a 2-in-portrait panel configuration, increasing panel density. It is well-suited for commercial applications where maximising energy output is essential, particularly in locations with no significant space or height limitations.
1-in-Portrait
The 1-in Portrait system, available in a single or twin post option, optimises limited space with a low-profile design, making it ideal for height-restricted areas. Its vertical layout improves aesthetics and efficiency on narrow plots, while its simplified configuration helps reduce installation costs.

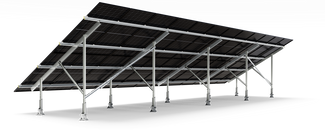

Solarport 2-in-Portrait Twin-Post Ground Mount Kit
Solarport’s 2-in-Portrait (2 rows of panels) ground mount is ideal for commercial and residential solar installations, and the most popular offering.
Solarport Ground Mount - Foundation Sets
Foundation sets for the Solarport ground mount system. Choose your foundation type and order 1 set per upright.

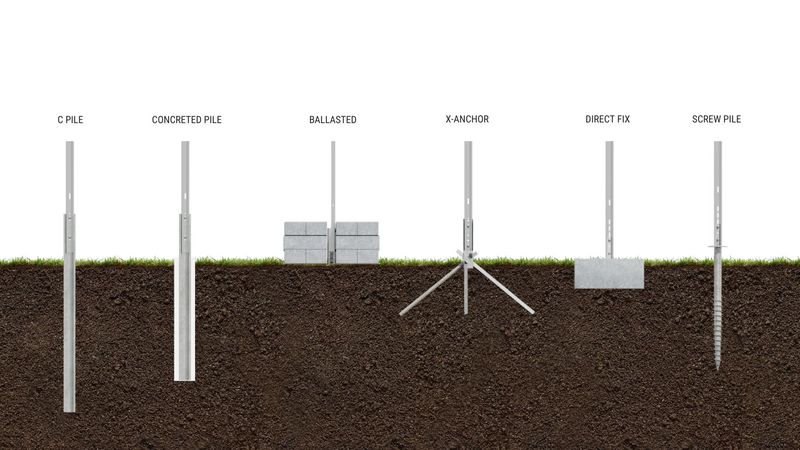

Foundation Options

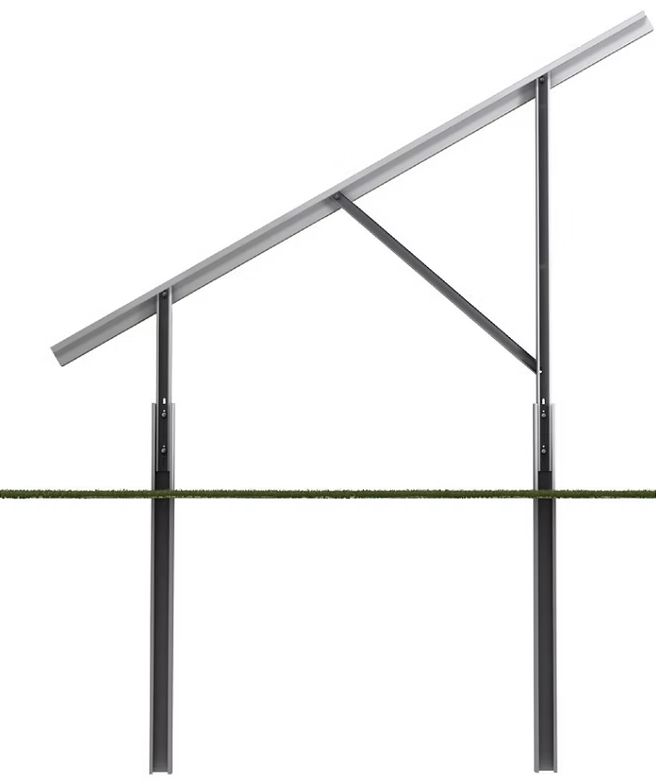

C Pile
The most common foundation, the C Pile, can be used for most projects where a piling rig is accessible. Our piles are all made using structural grade steel guaranteed to make installation stress-free and stand the test of time.

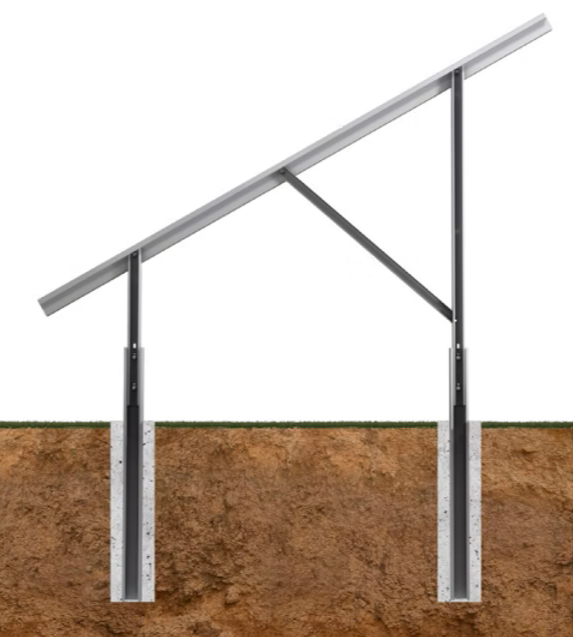

Concrete Pile
For sites where ground penetration is feasible, and a shorter pile is needed and/or suitable machinery is available, the piles are concreted into the ground.

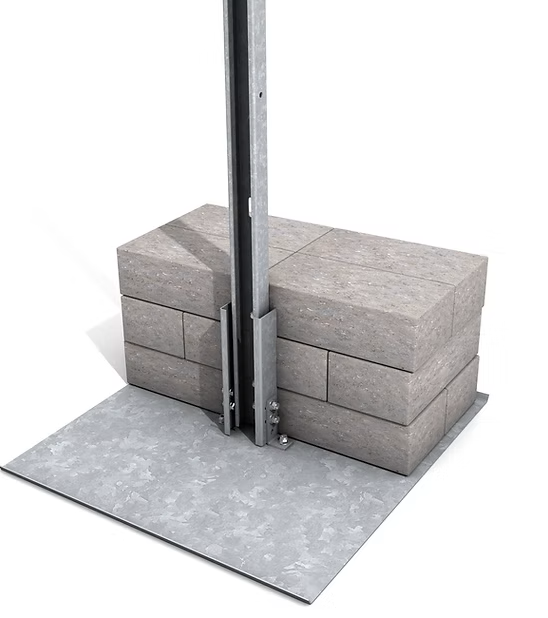

Ballasted
Where the site is flat and ground penetration is not possible due to underground utilities, archaeological significance or exhibits very low cohesive resistivity/high corrosivity, Solarport’s ballast system is an ideal solution. Utilising readily available materials such as high-density concrete blocks and pre-cast concrete mono-blocks, the ballast system is not only straightforward to install but also exceptionally versatile in its application.

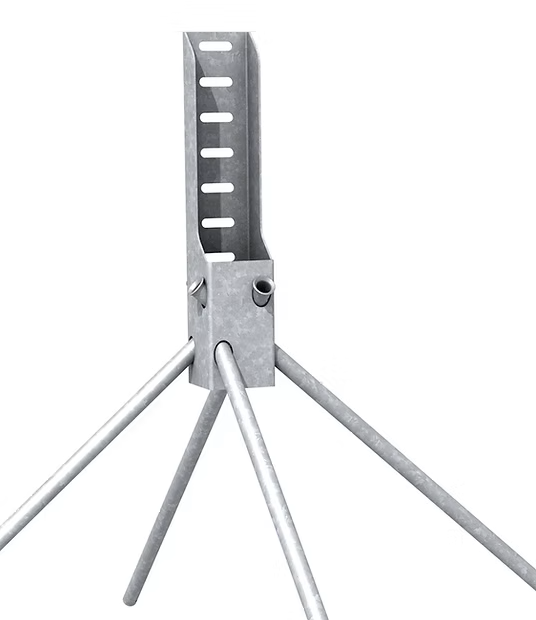

X Anchor
The X Anchor is Solarport’s patented foundation solution that makes it possible to install large and small-scale ground-mounted solar PV systems with the use of only hand tools, an SDS drill or a post-knocker. Perfect option for sites where access is restricted by large machinery.

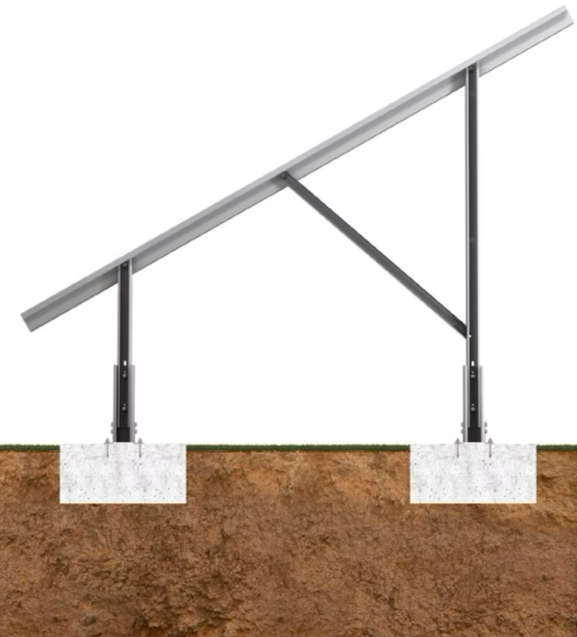

Direct Fix
Designed for both concrete blocks and non-cracked concrete, the Direct Fix minimises material use, adapts easily to existing conditions, and performs exceptionally in demanding environments.

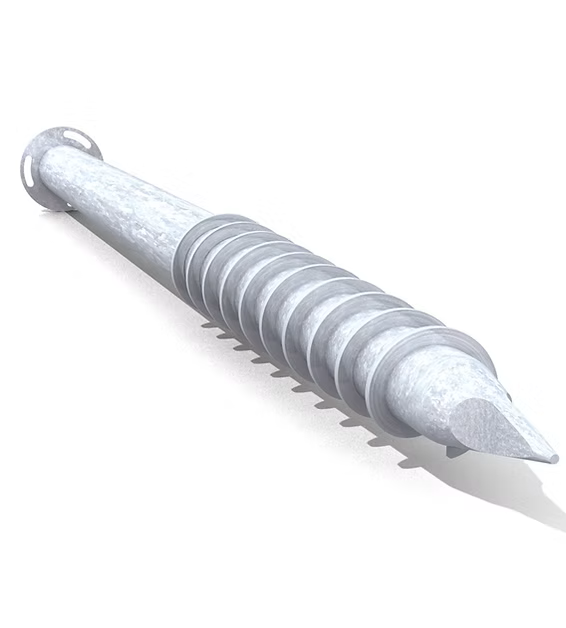

Screw Pile
For smaller-scale installations, or in areas that are inaccessible with heavy machinery the screw pile can be installed with minimal disruption to the soil and the surrounding environment.
