Collection: Solar Cable Assembly Tools

The Staubli tool belt puts all your MC4 and MC4-Evo 2 tools at hand. Made from a heavy-duty waterproof material. Tool belt includes:

The torque toolset enables consistent correct tightening of Staubli MC4 and MC4-Evo 2 connectors. Set includes: torque tool (incl. extra tool integrated into the handle to set the torque), adapter and socket wrench insert. Designed for easy one-handed use.

This set contains all the tools specifically designed for professional field installation of the entire Original MC4 product family. The assembly of PV connectors can make or break a project, by using the Stäubli toolset for PV connector field installation you will improve the quality and reliability of the PV DC connection. Supplied with crimp die-set suitable for 4, 6 and 10 sq mm connectors.

Specially adapted for the Flex-Sol PV cable, for stripping small cable quantities on the roof. With length stop to ensure correct length of insulation is stripped. Two die cutter inserts. One for conductor cross sections 1.5 mm², 2.5 mm², 4 mm² and 6 mm²; and one for 4 mm², 6 mm² and 10 mm².

Crimping pliers for crimping both MC4 and MC4-Evo 2 connectors

Complete tool for the assembly of the original MC4 connectors.

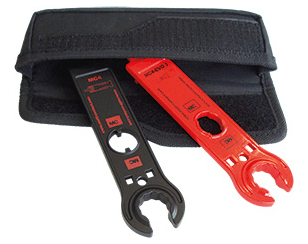

Assembly and unlocking tool, for use with MC-4 connectors to tighten and unscrew the cable gland and to open the locking device of the connection.

Assembly and unlocking tool, for use with MC4-Evo ready connectors to tighten and unscrew the cable gland and to open the locking device of the connection.

Stäubli recommend the this slotted socket wrench insert to ensure correct assembly of connectors.

This test plug is used to check the correct location of the MC4 contact in the insulation.

This test plug is used to check the correct location of the MC4 EVO 2 contact in the insulation.

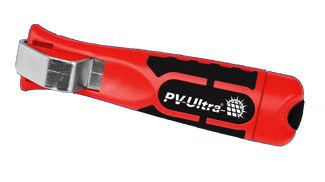

Specially designed for use with Doncaster Cables PV-Ultra range.
