Collection: Victron Energy

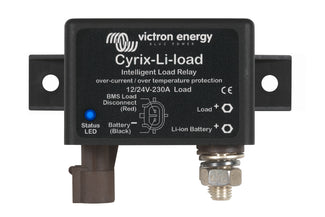

The Cyrix-Li-load will disengage when its control input becomes free floating. If the battery voltage recovers after disconnection (which will happen when no other loads are connected to the battery), the output of the BMS will become high and the Cyrix will reengage after 30 seconds. After 3 attempts to reengage, the Cyrix will remain disengaged until battery voltage has increased to more than 13 V (resp. 26 V or 52 V) during at least 30 seconds (which is a sign that the battery is being recharged).

The Cyrix-Li-Charge will connect a battery charger with 3 seconds delay: – if the Charge Disconnect output of the VE.Bus BMS is high, and – if it senses 13,7V (resp. 27,4V or 54,8V) or more on its battery charger connection terminal, and – if it senses 2V or more on its battery terminal (the Cyrix will remain open, if not connect to the battery).

Wi-Fi dongle to connect Colour Control to WEP, WPA and WPA2 secured networks where running a network cable to router or access point is unsuitable.

The Victron Battery Protect disconnects the battery from loads before the battery is completely discharged, this prevents damage to the battery and will leave some charge in the battery e.g. to start an engine.

This cable translates the remote on/off driver logic from the VE.Bus BMS (normally high, and open circuit in case of alarm) to the logic needed by the Skylla TG battery chargers: active pull down to switch off.
