Battery/Inverter Fuse Switch Disconnects
Fuse carriers for NH type fuses, suitable for protecting and isolating cables between the battery and inverter. Integrated handle enabling use as an isolator.
Select model
| Variant | Price (exc tax) | ||
|---|---|---|---|
|

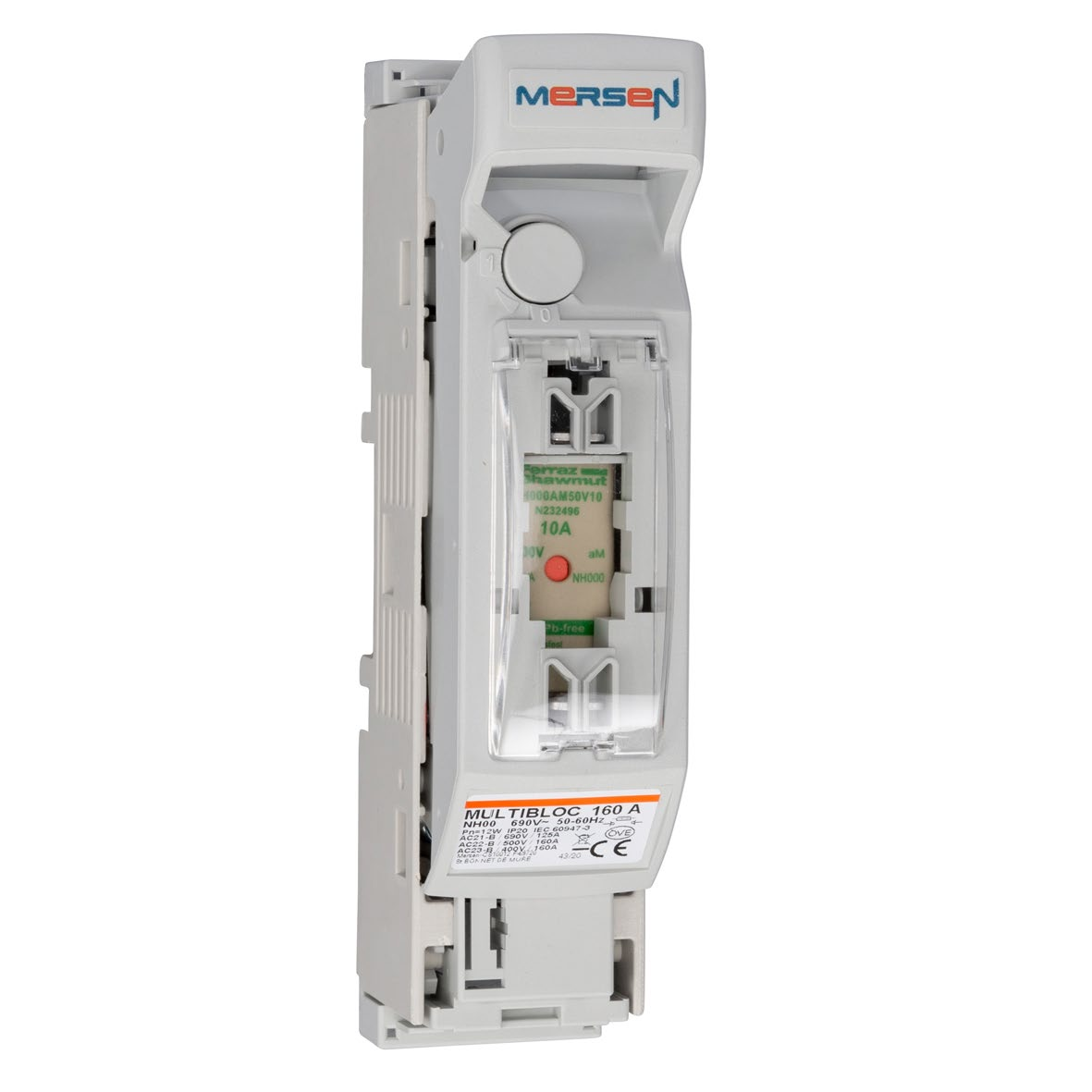

FB-NH00-1
1- pole NH00 fused disconnect, M8 fixings 220VDC, 160ADC max |
Regular price
£33.01
Regular price
Unit price
per
|
||
|

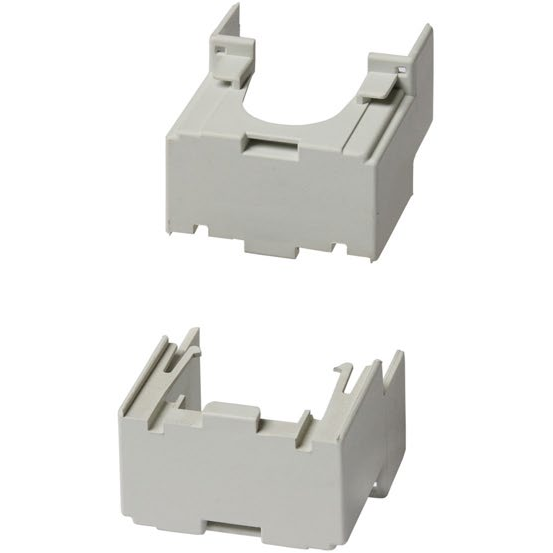

FB-NH00-1S
1 Pole shroud for NH00 fits Top and Bottom(boxed pair) |
Regular price
£4.18
Regular price
Unit price
per
|
||
|
FB-NH00-2

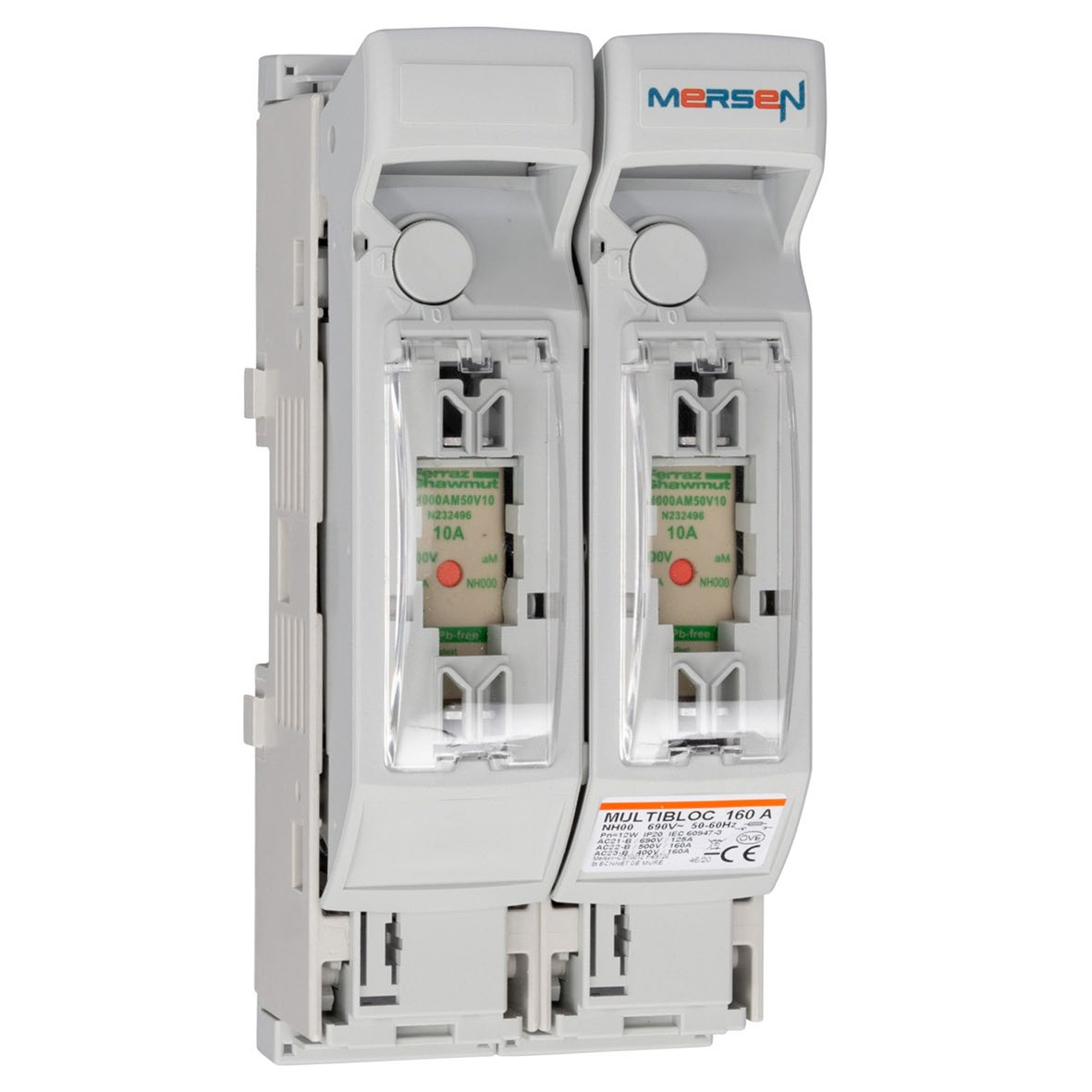

2- pole NH00 fused disconnect, M8 fixings 220VDC, 160ADC max |
Regular price
£51.34
Regular price
Unit price
per
|
||
|

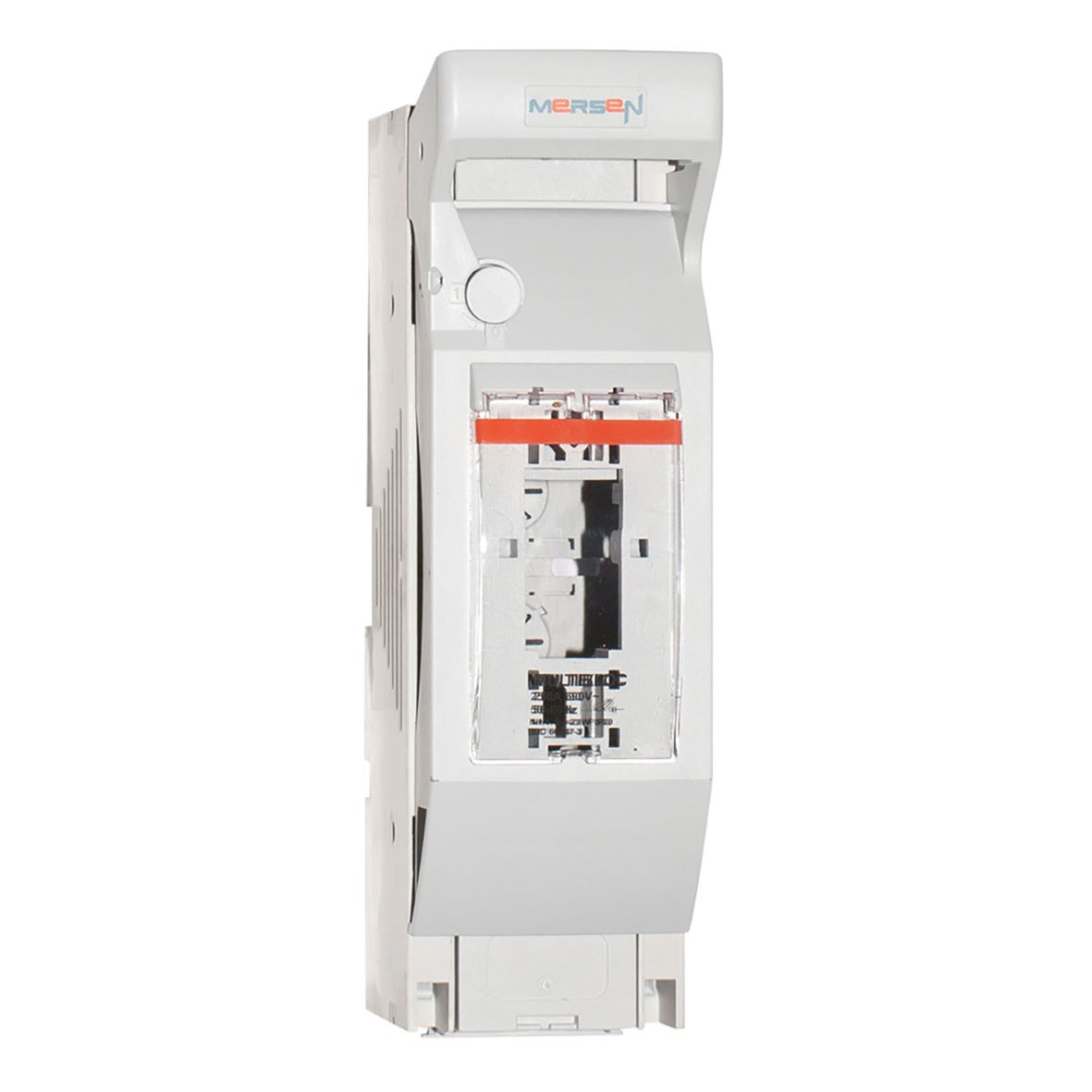

FB-NH1-1
1-pole fused battery disconnect c/w M10 fixings, 250ADC |
Regular price
£78.48
Regular price
Unit price
per
|
||
|
FB-NH1-1S

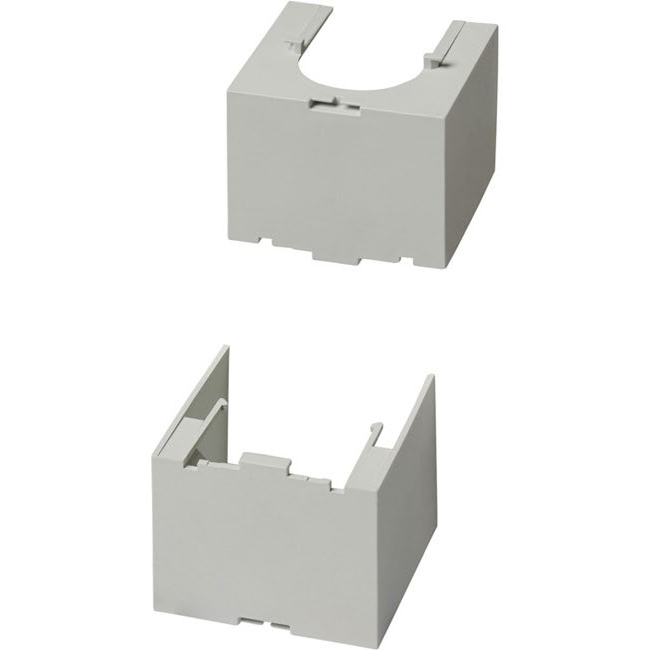

1 Pole Shroud fits Top or Bottom (Boxed pair) |
Regular price
£5.60
Regular price
Unit price
per
|
||
|

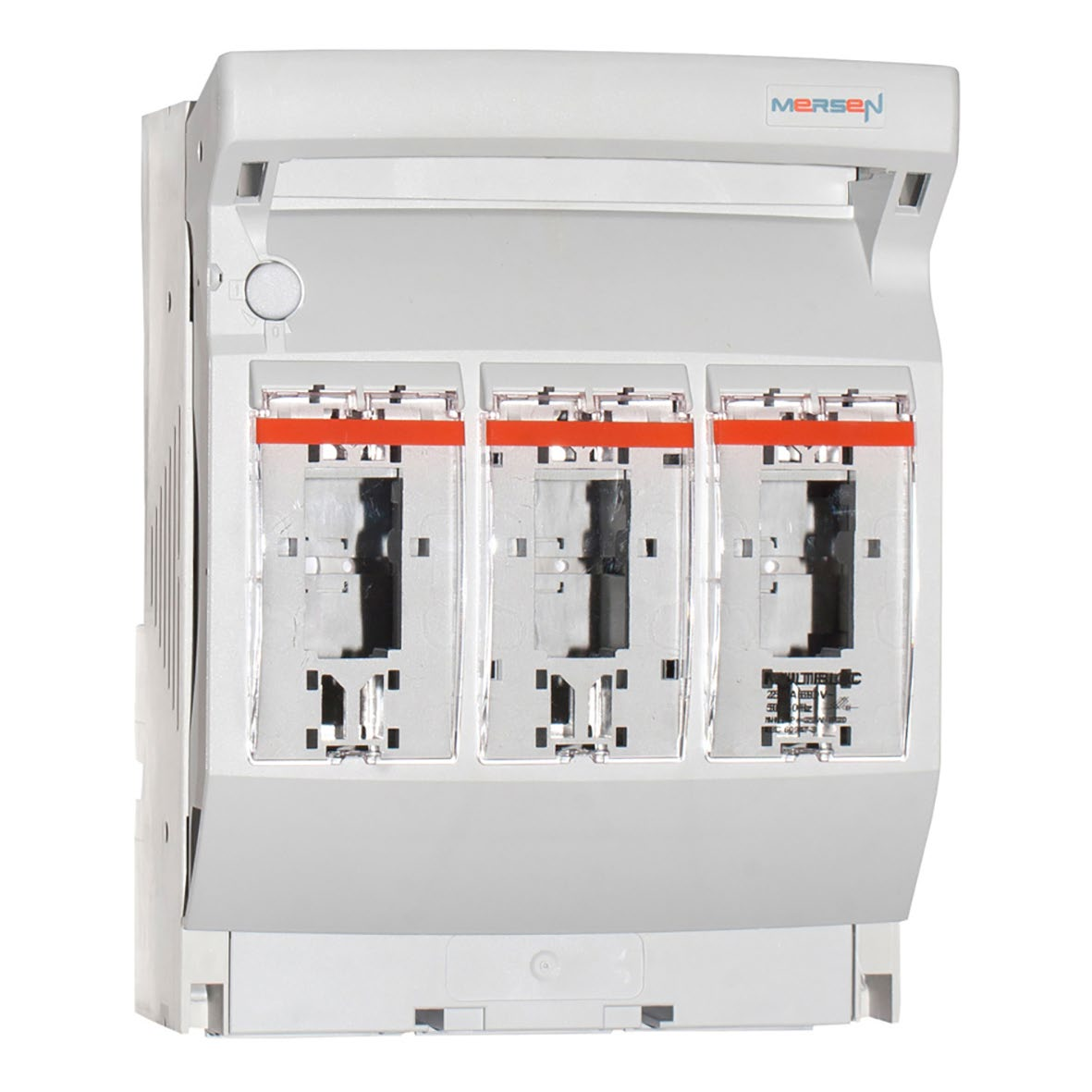

FB-NH1-3
3-pole NH1 fused battery disconnect, M10 fixings, 250ADC |
Regular price
£113.22
Regular price
Unit price
per
|
||
|
FB-NH1-3SB
3 Pole Shroud Top & Bottom (boxed pair) |
Regular price
£12.22
Regular price
Unit price
per
|
||
|

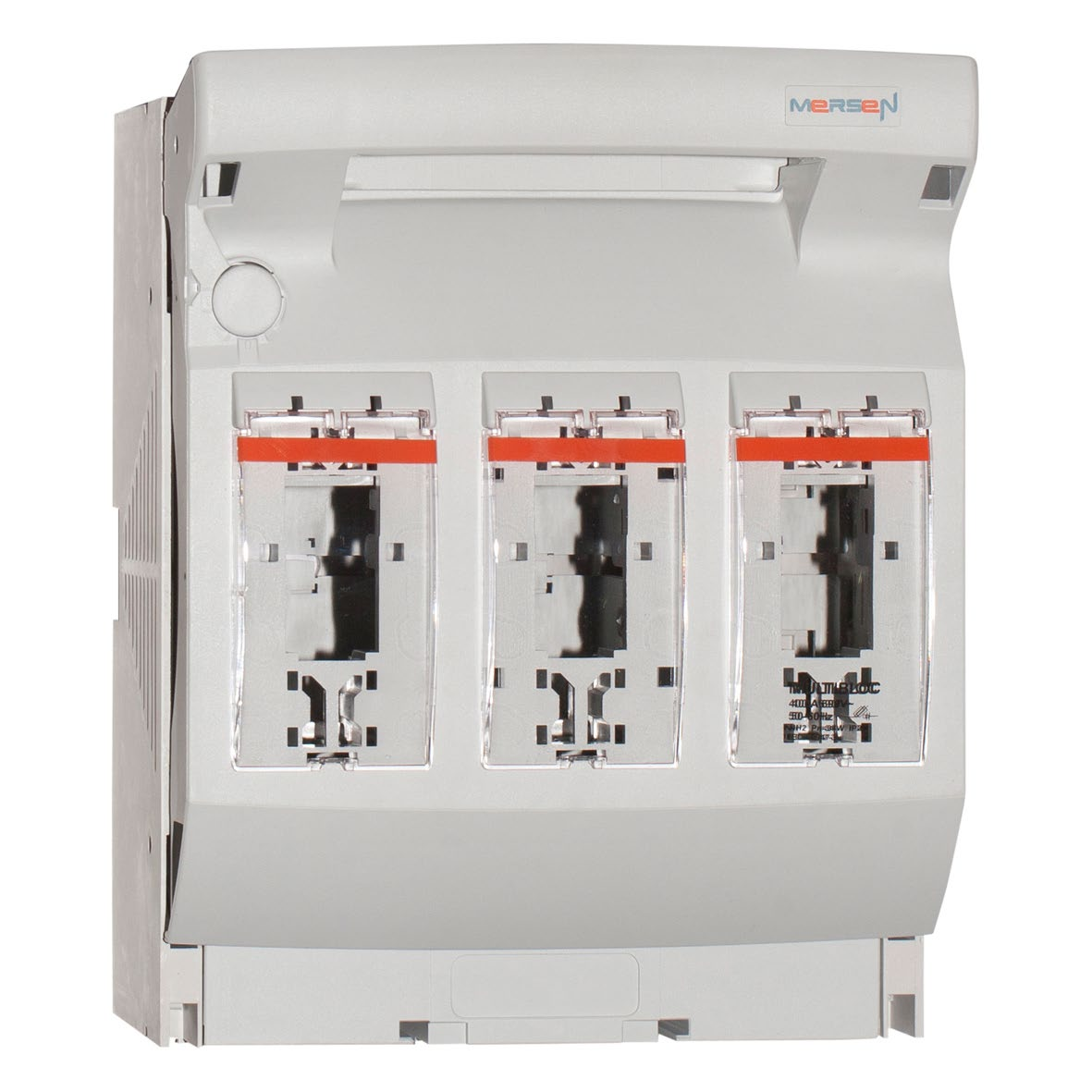

FB-NH2-3
3-pole NH2 fused battery disconnect M10 fixings, 400ADC max |
Regular price
£173.73
Regular price
Unit price
per
|
||
|

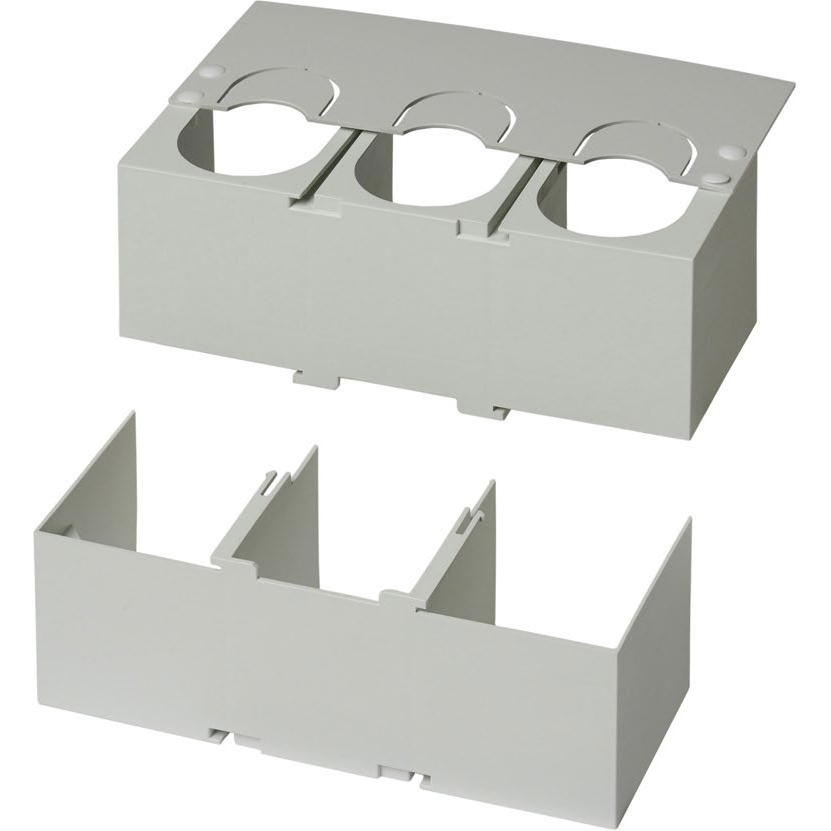

FB-NH2-3S
3-pole shroud for NH2 disconnect top & bottom |
Regular price
£16.11
Regular price
Unit price
per
|
||
|

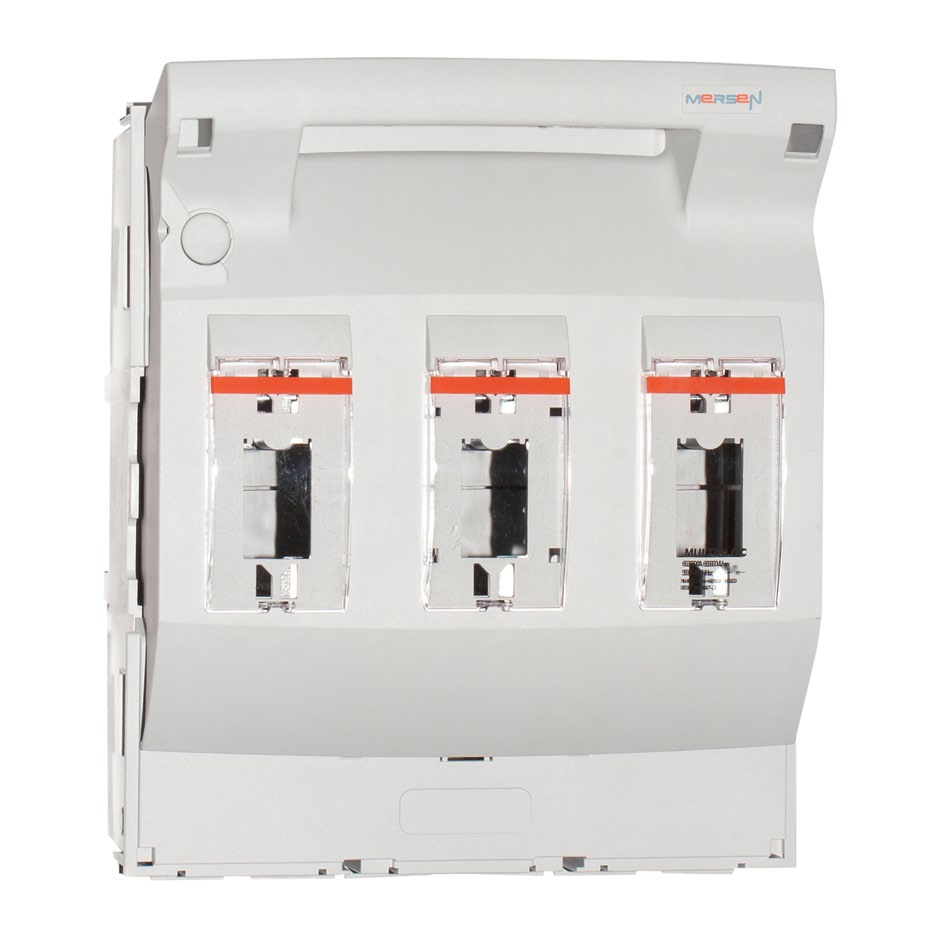

FB-NH3-3
3-pole NH3 fused battery disconnect M12 fixings, 630ADC max |
Regular price
£249.98
Regular price
Unit price
per
|
||
|

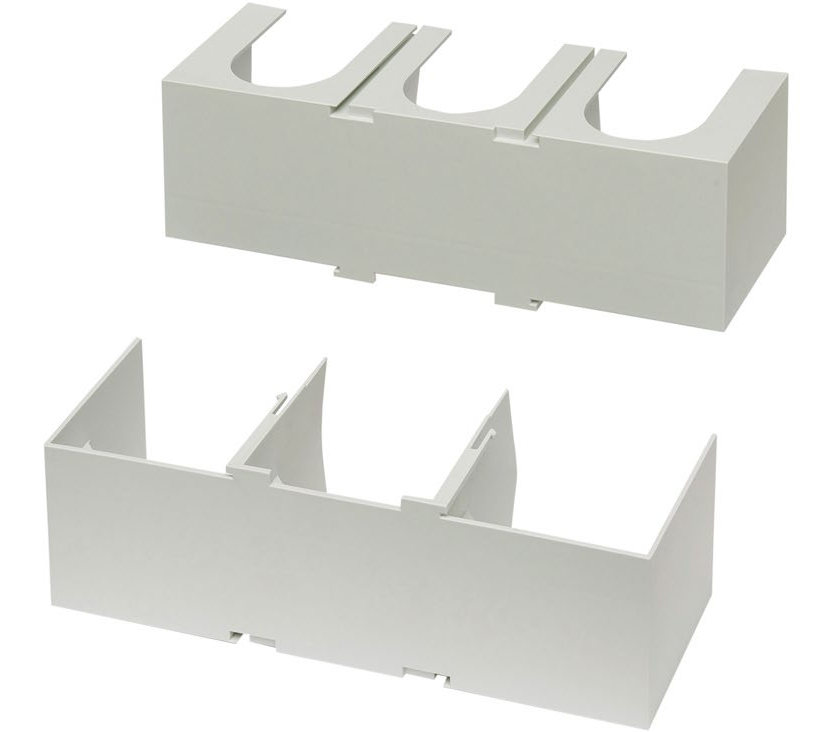

FB-NH3-3S
3-pole shroud for NH3 disconnect top & bottom |
Regular price
£20.06
Regular price
Unit price
per
|
||
Battery/Inverter Fuse Switch Disconnects
Fuse carriers for NH type fuses, suitable for protecting and isolating cables between the battery and inverter. Integrated handle enabling use as an isolator.
2 poles of the 3-pole carrier carrier can be used to fuse and isolate both positive and negative at the same time, all in the same device.
NH00 rated at 220VDC, 160A - for NH00 and NH000 fuses
NH1 rated at 250VDC, 250A - for NH1 fuses
NH2 rated at 440VDC, 400A - for NH2 fuses
Shrouds provide terminal protection.
Good to know
Technical Specifications
| SKU | FB-NH00-1 | FB-NH00-1S | FB-NH00-2 | FB-NH1-1 | FB-NH1-1S | FB-NH1-3 | FB-NH1-3SB | FB-NH2-3 | FB-NH2-3S | FB-NH3-3 | FB-NH3-3S |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Weight (kg) | 0.4 | 0.03 | 0.62 | 1.5 | 0.35 | 3 | 0.83 | 3.5 | 0.7 | 0.1 | 0.1 |
| Intrastat Commodity Code | 85361090 | 85363090 | 85363090 | 85363090 | 85363090 | 85363090 | 85363090 | 85363090 | 85363090 | 85363090 | 85363090 |
Related Products
Battery/Inverter NH Fuses
NH000, NH1, NH2 & NH3 high capacity fuses suitable for protection of cables from batteries to inverters or charge controllers.
*see manufacturer's documentation for further information
