BYD Battery-Box HVS+/HVM+

BYD Battery-Box HVS+/HVM+

The BYD Battery-Box HVS+ and HVM+ are modular high voltage lithium iron phosphate (LFP) battery packs for use with an external inverter.

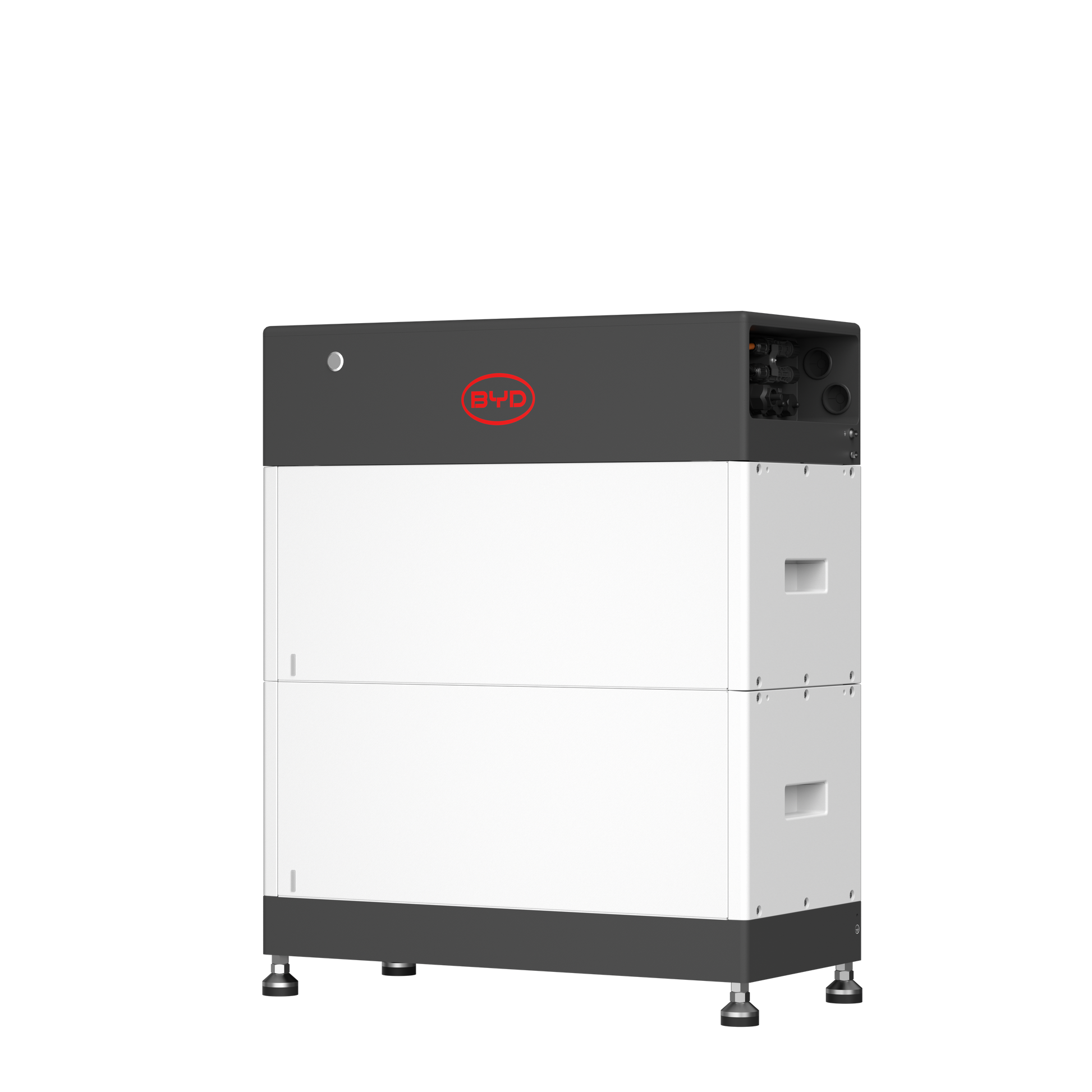

Battery-Box HVS+

One Battery-Box HVS+ is composed of 2 to 5 HVS battery modules, together with a BCU and Base, that are connected in series to achieve a usable capacity of 5.1 to 12.8 kWh*. Additionally, direct parallel connection of up to 3 identical Battery-Box HVS+ allows a maximum capacity of 38.4 kWh*.

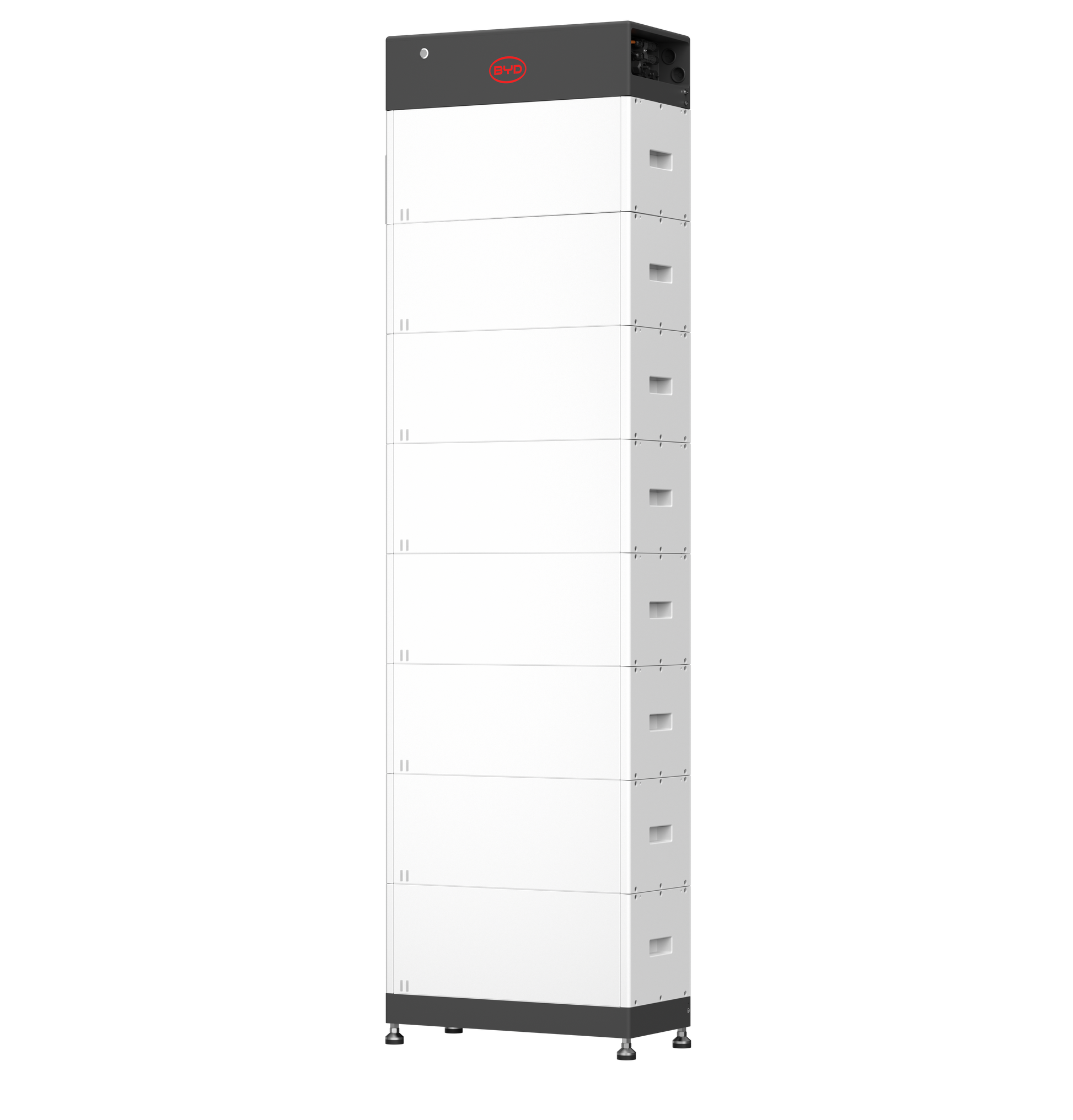

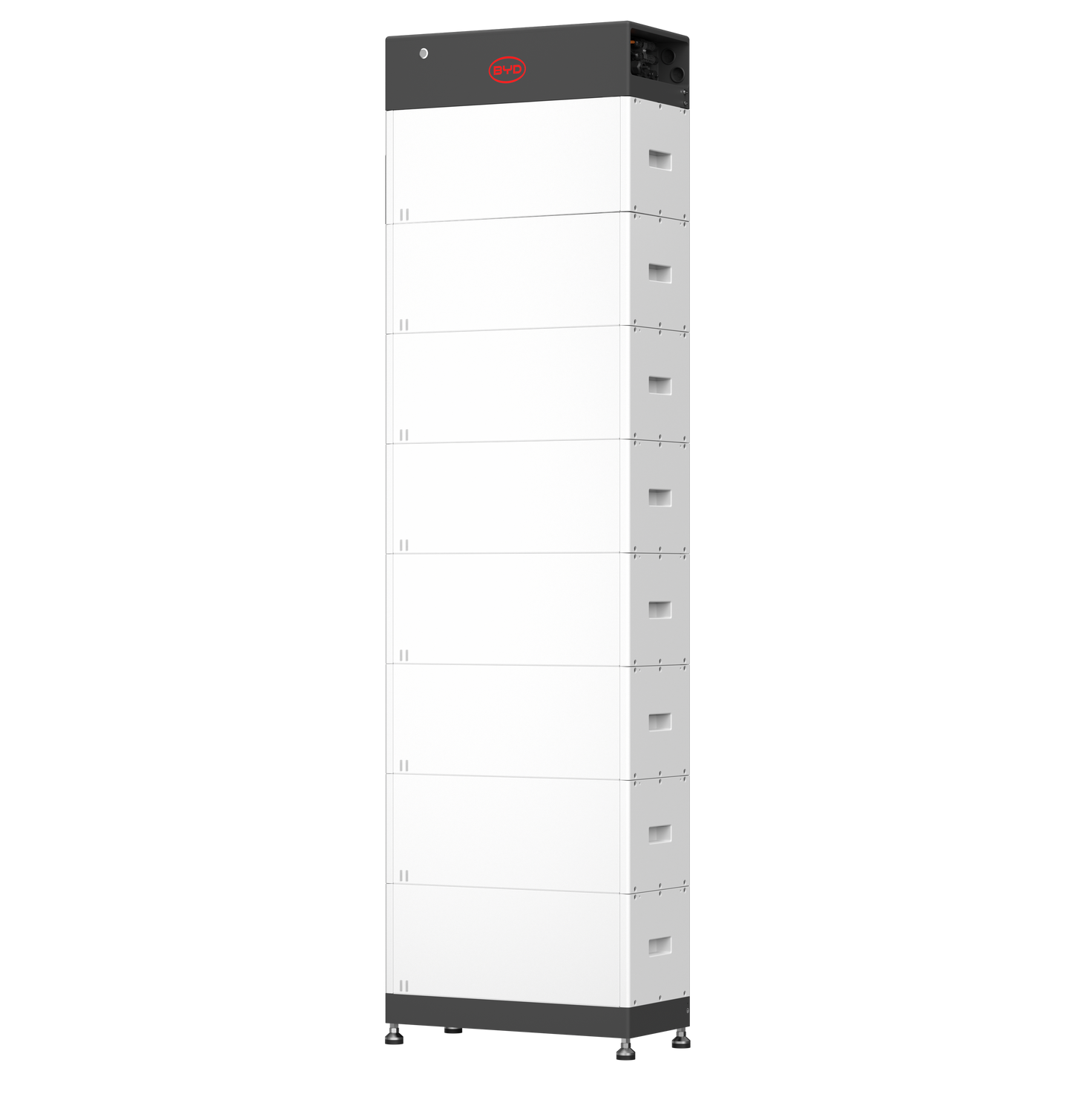

Battery-Box HVM+

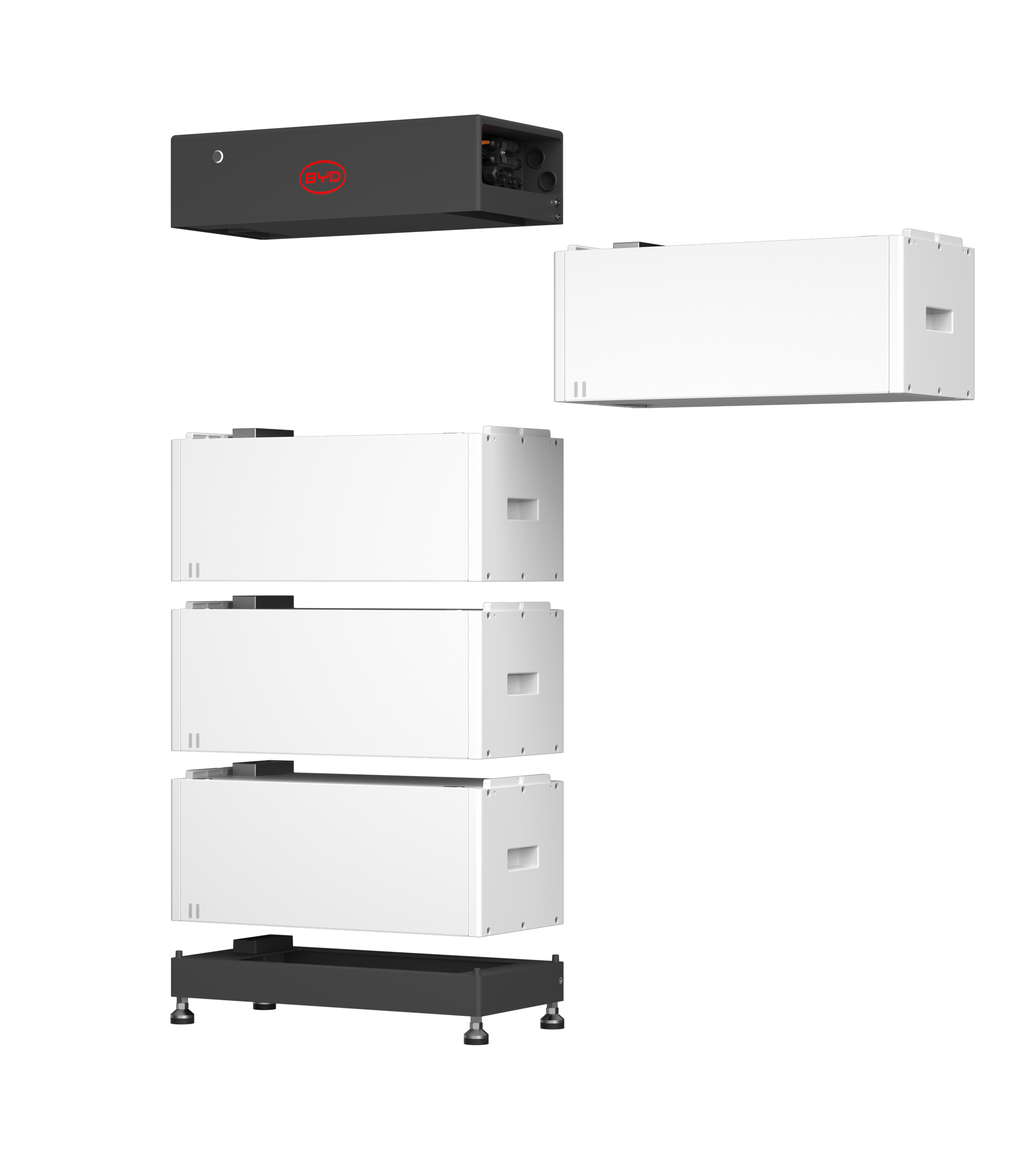

One Battery-Box HVM+ is composed of 3 to 8 HVM battery modules, together with a BCU and Base, that are connected in series to achieve a usable capacity of 8.3 to 22.1 kWh*. Additionally, direct parallel connection of up to 3 identical Battery-Box HVM+ allows a maximum capacity of 66.2 kWh*.

• Capable of High-Powered Emergency-Backup and Off-Grid Functionality
• Highest Efficiency Thanks to a Real High-Voltage Series Connection
• The Patented Modular Plug Design Requires no Internal Wiring and Allows for Maximum Flexibility and Ease of Use
• Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life Cycle, and Power
• Compatible with Leading 1 and 3 Phase High Voltage Battery Inverters
• Two Distinct Modules to Cover the Complete Range of System Sizes
• Highest Safety Standards like VDE 2510-50
• IP55
• Operating temperatures between -10°C to +50°C. Power derating will occur between -10°C and +5°C.
