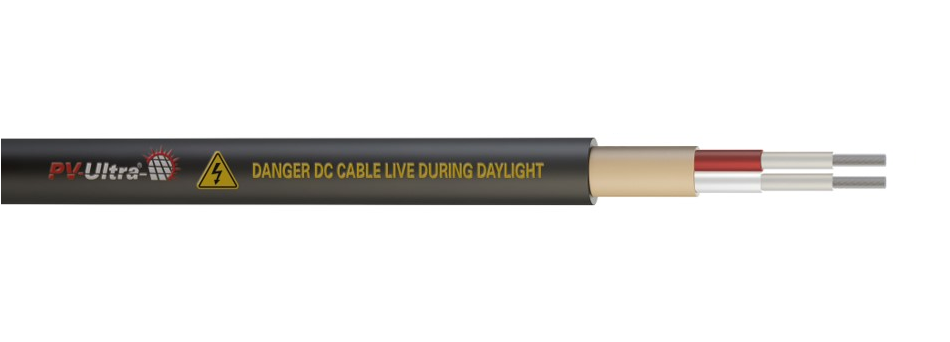

Doncaster Cable PV-Ultra Double Insulated Multicore DC Solar Cable
This cable is designed to meet the requirements of the DC interconnections between the solar panels and the other components of the photovoltaic system, such as the isolators and inverters.
PV-Ultra provides excellent mechanical properties, can be installed both internally and
externally, and has been designed with high quality materials to achieve an anticipated
lifespan of circa 25 years.
The cables are designed to operate at a normal maximum conductor temperature of 90°C,
but for a maximum of 20,000 hours a max. conductor temperature of 120°C at a max.
ambient temperature of 90°C is permitted.
Features and Benefits
- Easier to handle
- Saves installation time and costs
- Neater installation
- Easy polarity identification - with red and white cores to comply with BS7671
- Easier to route along/through buildings or walls
- Reduces risk of damage
- Pre-marked 'LIVE DC' warning message to improve safety
- Can be installed using normal cable accessories, cleats and/or clips and gives additional protection without the need for conduit.
- Incorporates a built-in high-tensile rip cord to aid the stripping of the inner bedding, removing the risk of causing damage to the inner cores
- Standard MC4 connectors can be terminated to the cores meaning that the termination and connection to panels is the same as when using traditional single core PV cables.
- Made in UK
Good to know
Technical Specifications
SKU | PV-ULTRA2C4.0-50 | PV-ULTRA2C4.0-100 | PV-ULTRA2C4.0-500 | PV-ULTRA2C6.0-50 | PV-ULTRA2C6.0-100 | PV-ULTRA2C6.0-500 | PV-ULTRA4C4.0-50 | PV-ULTRA4C6.0-50 |
---|---|---|---|---|---|---|---|---|
Size | 4 sqmm | 4 sqmm | 4 sqmm | 6 sqmm | 6 sqmm | 6 sqmm | 4 sqmm | 6 sqmm |
Number of Cores | 2 | 2 | 2 | 2 | 2 | 2 | 4 | 4 |
Weight (kg) | 7 | 0.07 | - | 0.08 | 35 | 8 | 20 | 40 |
Intrastat Commodity Code | 85449910 | 85449910 | 85449910 | 85449910 | 85449910 | 85449910 | 85449910 | 85449910 |
Downloads /
Documents
*see manufacturer's documentation for further information
