Edge Fastening Cable Clips
Regular price
£43.05
Regular price
Sale price
£43.05
Unit price
per
Shipping calculated at checkout.

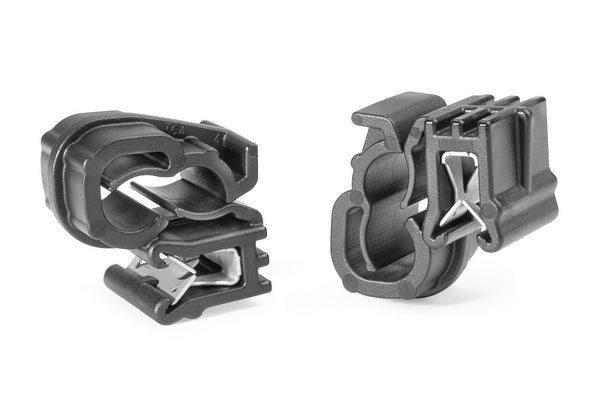

These Cable Clips enable simple, durable cable management on solar PV systems. They can be easily attached directly to the solar panel frame by hand and have a high extraction force to provide secure fixing. Rounded edges protect cable insulation from damage.
Select model
| Variant | Price (exc tax) |
|---|---|
|
HT-EC1-3SPDHC6-7
EC1 Solar cable frame clip - for 1 or 2 cables (box of 100) |
Regular price
£43.05
Regular price
Unit price
per
|
Edge Fastening Cable Clips
These Cable Clips enable simple, durable cable management on solar PV systems. They can be easily attached directly to the solar panel frame by hand and have a high extraction force to provide secure fixing. Rounded edges protect cable insulation from damage.

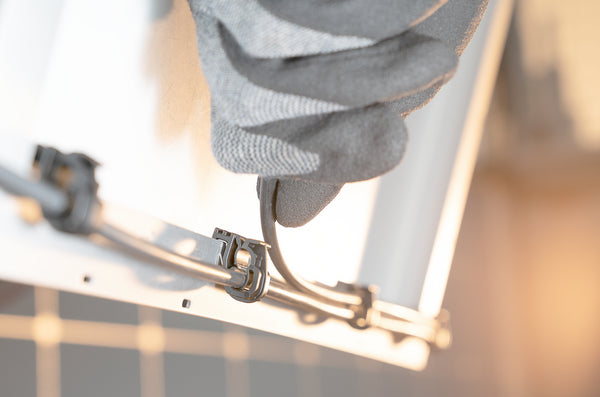

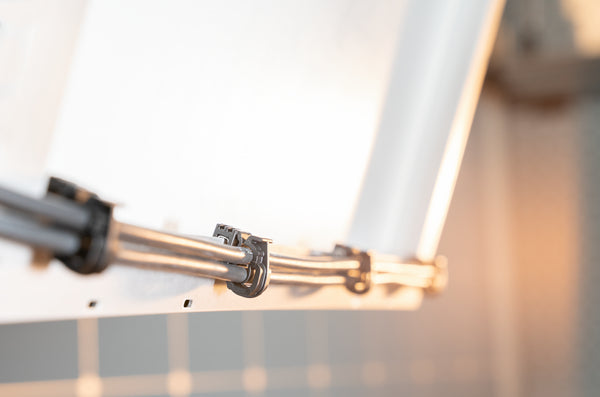

Can be easily attached to solar modules and accommodates up to two cables by simply pressing them in.
- Panel thickness: 1.0 - 3.0mm
- Cable ∅: 5.8 - 6.8 mm
- Material: Polyamide 6.6, heat and UV stabilised
- Accommodates up to two cables (4 - 6 sq mm)
- Pack of 100 black clips
Good to know
Technical Specifications
| SKU | HT-EC1-3SPDHC6-7 |
|---|---|
| Intrastat Commodity Code | 39269097 |
*see manufacturer's documentation for further information
