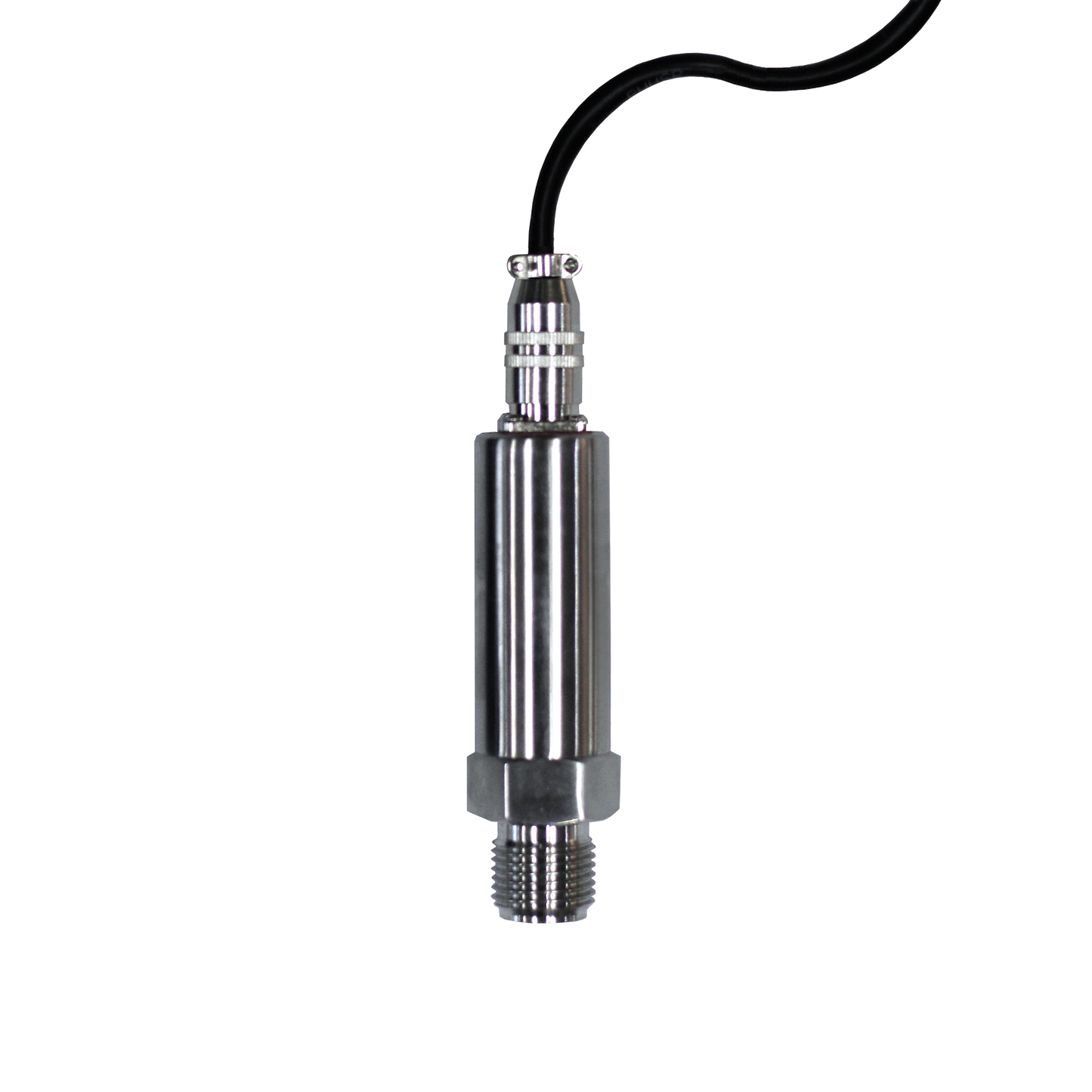

Lorentz Liquid Pressure Sensor

Lorentz Liquid Pressure Sensor

Commonly used to measure the pressure in the delivery pipeline or in a vessel. The pressure signal is used with a suitable LORENTZ pump controller to measure pressure and for pressure switching or constant presure applications.

• Gauge pressure sensor, pressure measurement relative to atmosphere
• For measuring pressure in a pipe or vessel
• Accurate, robust sensor
• For use with LORENTZ PumpScanner and pumpMANAGER

• Requires LORENTZ PS2 controller , LORENTZ PSk2 controller or PS Controller equipped with a licensed PS DataModule
• Care must be taken to position the sensor without turbulent water
• to ensure accurate measurement
• G1/4” or G1/2” female threaded filling / air vent hole is required to mount the sensor

• Sensor type: 2 wire gauge sensor
• Enclosure class: IP65
• Sensor housing : stainless steel
• Connects to LORENTZ PS DataModule
• 1m (3 ft) cable length
• Overpressure: 1.5x full scale
• Output signal : 4-20 mA
• Voltage : 11-28 VDC
• Application temp.: -30 to 80°C -22 to 176°F
• Accuracy class : 0.5% full scale
• Thread type: G1/2” male (G1/4” with adapter)
• Meets the requirements for CS
