MC4 Solar Connector Holder
Regular price
£57.72
Regular price
Sale price
£57.72
Unit price
per
Shipping calculated at checkout.

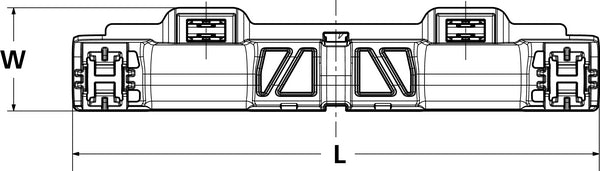

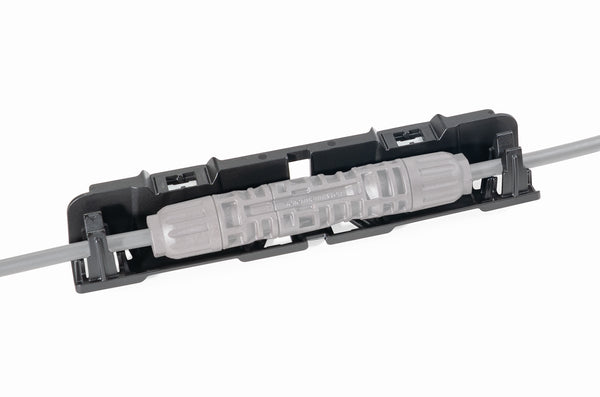

These clips are designed to securely hold an MC4, MC4 EVO2 or comparable solar connectors with an outer diameter of 21.5 mm and a maximum length of 122.0 mm, without the use of cable ties.
Select model
| Variant | Price (exc tax) |
|---|---|
|
HT-SPC-DEC1-3SP
MC4 Connector Holder - clips to frame (box of 60) |
Regular price
£57.72
Regular price
Unit price
per
|
MC4 Solar Connector Holder
These clips are designed to securely hold an MC4, MC4 EVO2 or comparable solar connectors with an outer diameter of 21.5 mm and a maximum length of 122.0 mm, without the use of cable ties.
- Supports solar cable to ensure cable exits directly from the cable connectors without
bending or stress. - The solar connector can be easily installed and removed at any time.

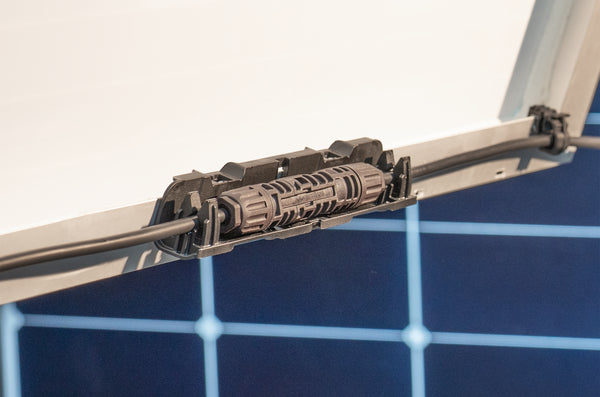

- Easily attached directly to the solar panel frame by pushing into place by hand onto a module frame edge

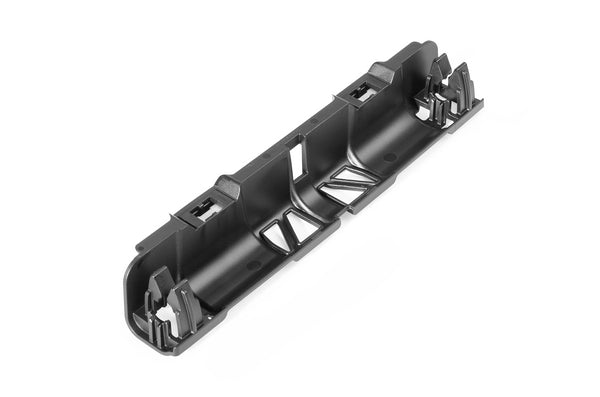

- Integrated metal clamp holds clip firmly in place with high extraction force to provide secure fixing.
- Ideal for applications where cable ties, holes or adhesives are not suitable
- Panel thickness: 1.0 - 3.0 mm
- Cable ∅: 5.8 - 6.8 mm
- Material: Polyamide 6.6, heat and UV-stabilised, steel.
- Pack of 60 holders
Good to know
Technical Specifications
| SKU | HT-SPC-DEC1-3SP |
|---|---|
| Intrastat Commodity Code | 39269097 |
*see manufacturer's documentation for further information
