Mersen DC Surge Protective Devices

Mersen
From £34.05
From £34.05
Sale Sold out
Shipping calculated at checkout.

Modular DC Surge Protective Devices (SPD) suitable for a wide range of photovoltaic applications.

See full details

Retail customers
Many of the products we supply require training and experience to install, we recommend seeking the assistance of a professional to help you with your project.

Find the right installer for you

Trade customers
Please login or apply for a trade account for trade pricing, check stock and order online.

Log in / Apply for a trade account

Select model

Variant Price (exc tax)
SPD-T1/2-1060V-1/1
DC SPD Type 1+2, 1060V, 1+ 1- 1PE
£147.70
£147.70
SPD-T1/2-1060V-1/1-R
DC SPD Type 1+2, 1060V, 1+ 1- 1PE, Remote
£155.46
£155.46
SPD-T1/2-1060V-2/2-R
DC SPD Type 1+2, 1060V, 2+ 2- 1PE, Remote
£267.38
£267.38
SPD-T1/2-1060V-3/1-R
DC SPD Type 1+2, 1060V, 3+ 1- 1PE, Remote
£259.87
£259.87
SPD-T2-1060V-1/1
DC SPD Type 2, 1060V, 1+ 1- 1PE
£97.46
£97.46
SPD-T2-1060V-1/1-R
DC SPD Type 2, 1060V, 1+ 1- 1PE, Remote
£34.05
£34.05
SPD-T2-660V-1/1
DC SPD Type 2, 660V, 1+ 1- 1PE
£90.26
£90.26
SPD-T2-660V-1/1-R
DC SPD Type 2, 660V, 1+ 1- 1PE, Remote
£105.58
£105.58

Mersen DC Surge Protective Devices

Modular DC Surge Protective Devices (SPD) suitable for a wide range of photovoltaic applications.

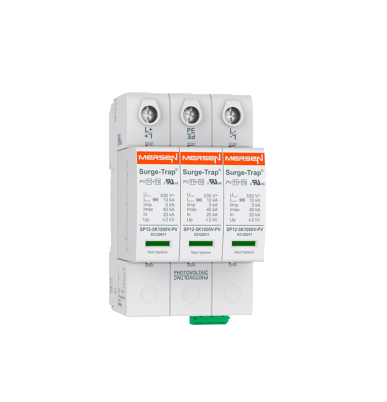

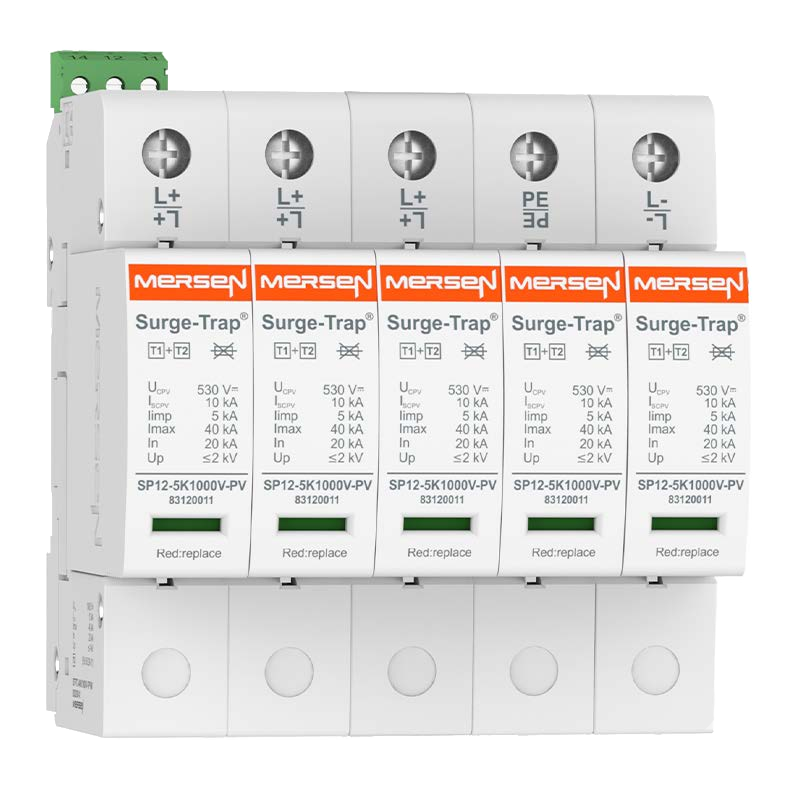

Type 1+2 SPDs:

  • Lightning impulse current (10/350 μs): 5 kA
  • Maximum discharge current (8/20 μs): 40 kA
  • Nominal discharge current (8/20 μs): 20 kA
  • Ucpv: 1060 Vdc and 1500 Vdc
  • Iscpv: 10 kA (EN 50539-11), no back-up fuse required in PV
  • SCCR: 50-65kA (UL 1449 4th Ed)

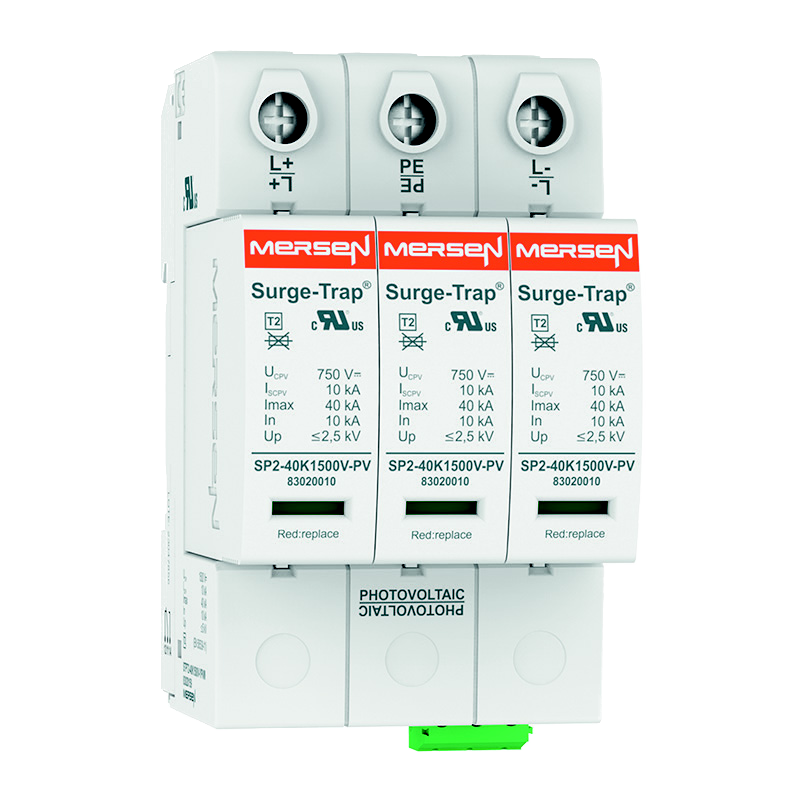

Type 2 SPDs:

  • Maximum discharge current (8/20μs): 40kA
  • Nominal discharge current (8/20μs): 20kA
  • Ucpv: 65, 80, 660, 1060 Vdc and 1500Vdc
  • Iscpv: 10kA (EN 50539-11), no back-up fuse required in PV
  • SCCR: 50-100kA (UL 1449 4th Ed)

All models feature:

  • Plug-in DIN rail format
  • Visual and remote end of life indication
  • Reversible chassis to allow cable entry from above or below
  • Mechanically coded cartridges to avoid replacement errors
  • Dynamic thermal disconnection system
  • with high breaking capacity, optimised for DC voltages.

Quick Links

Technical Specifications

Downloads

Related Products

Good to know

Technical Specifications

SKUSPD-T1/2-1060V-1/1SPD-T1/2-1060V-1/1-RSPD-T1/2-1060V-2/2-RSPD-T1/2-1060V-3/1-RSPD-T2-1060V-1/1SPD-T2-1060V-1/1-RSPD-T2-660V-1/1SPD-T2-660V-1/1-R
Intrastat Commodity Code 85354000 85354000 85354000 85354000 85354000 85354000 85354000 85354000

Downloads / Documents

*see manufacturer's documentation for further information
