Morningstar Communication Adaptors

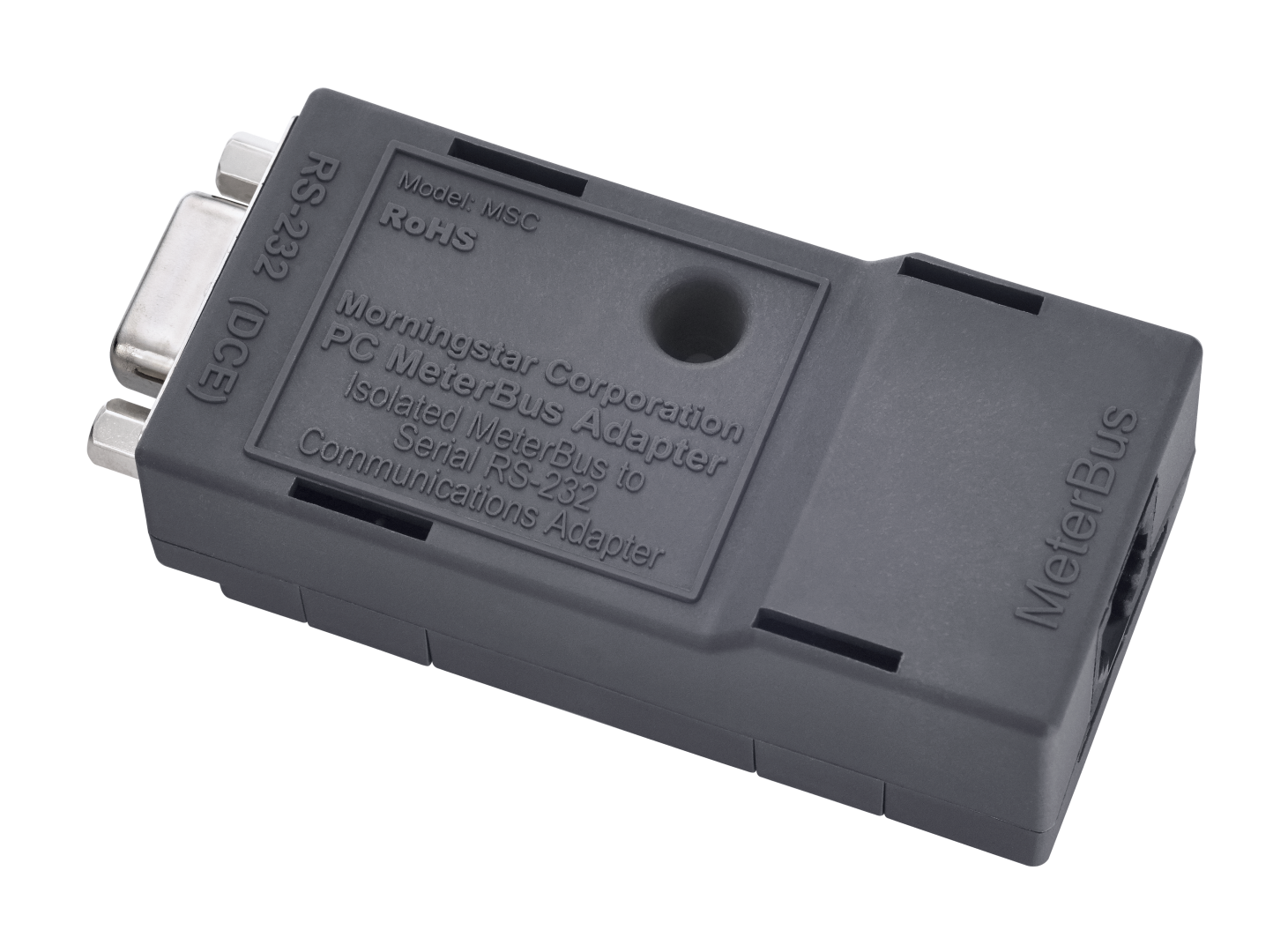

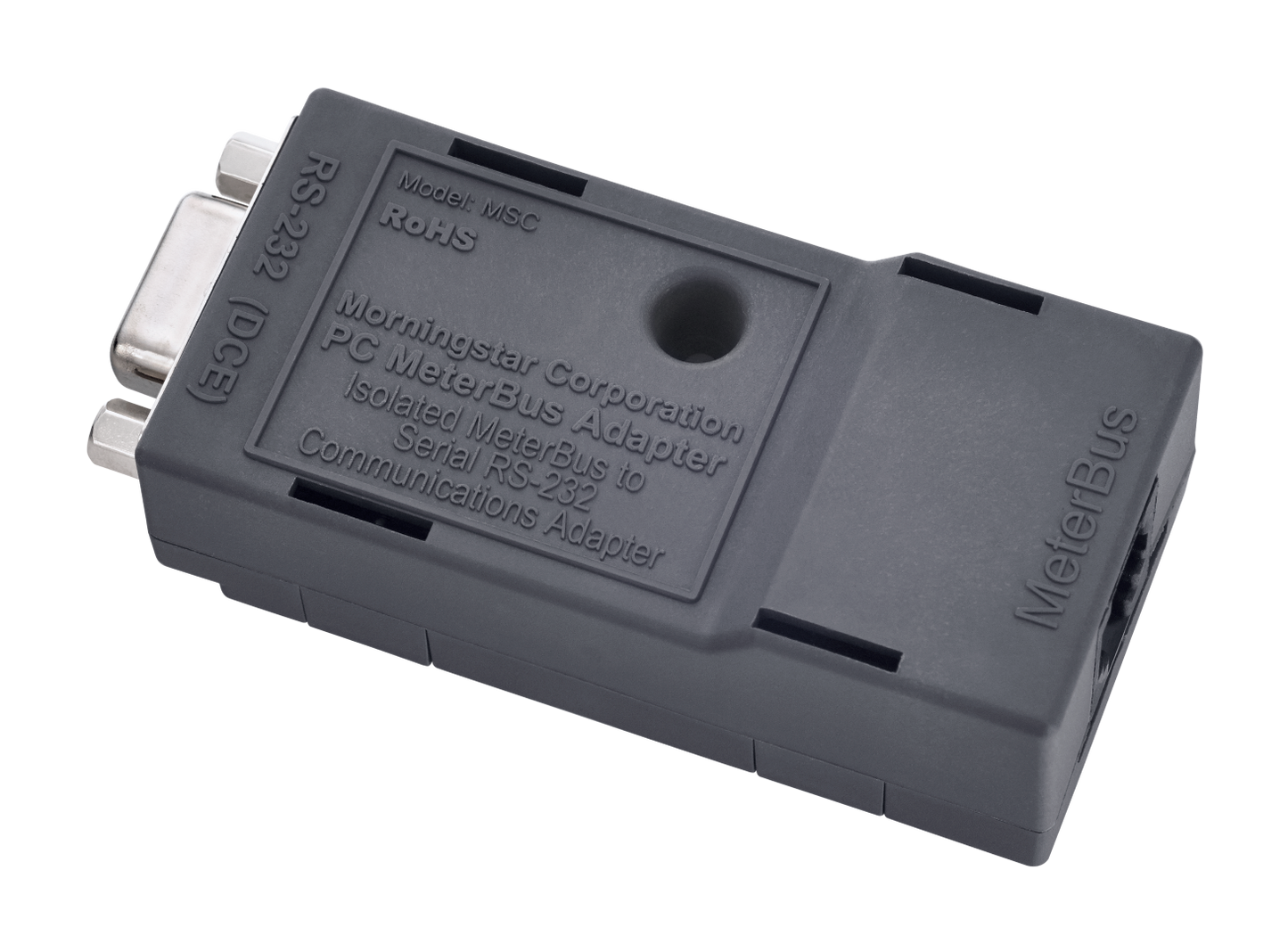

MS-MSC Morningstar’s PC MeterBus Adapter converts a controller’s MeterBus RJ-11 to a standard RS-232 serial connector for connection to a PC or other equipment. It may be used with any Morningstar controller or inverter equipped with a meter connection that does not also already have a RS-232 port. Communications link enables monitoring and logging of data as well as customizing of set points.

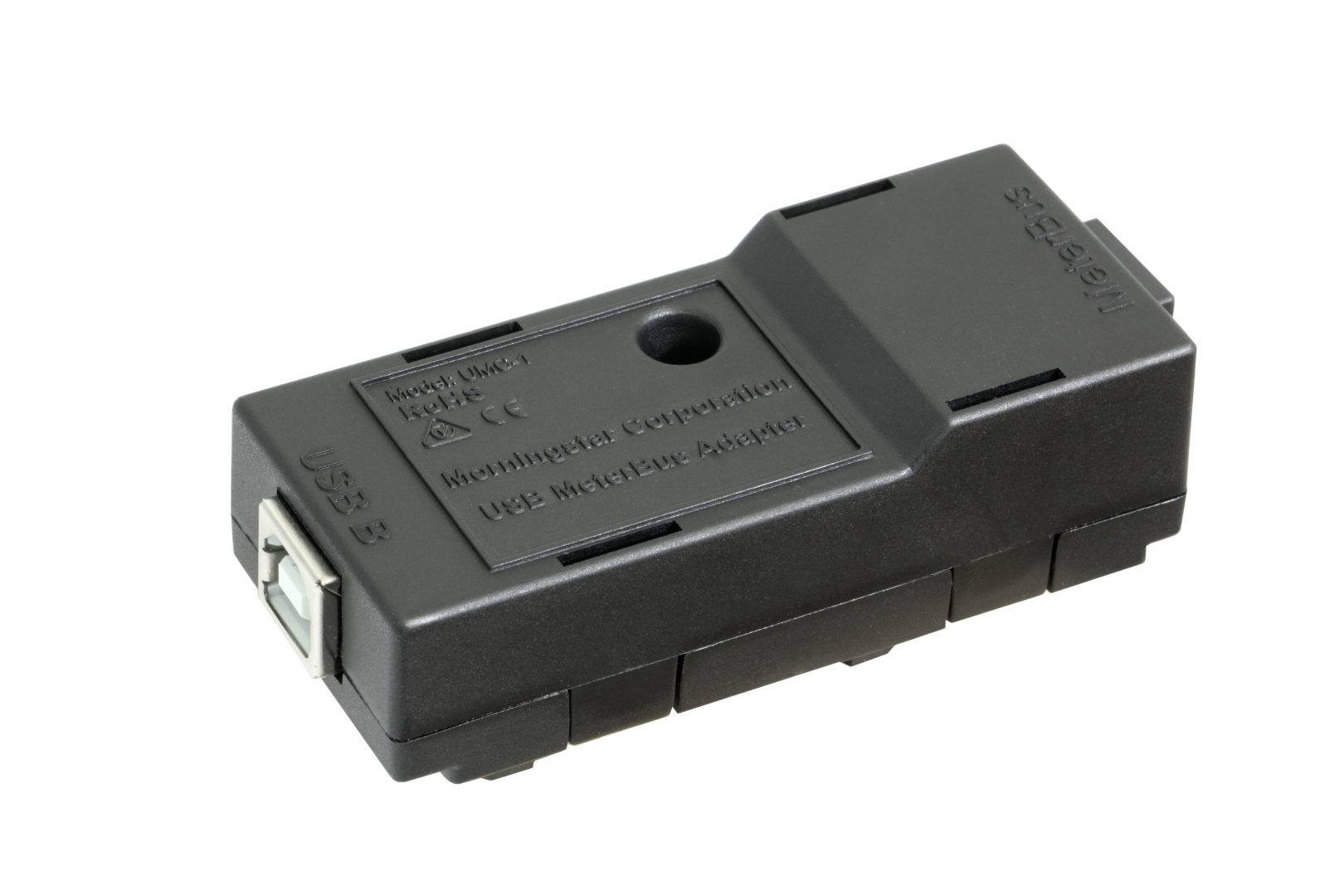

MS-UMC-1 The USB MeterBus Adapter converts the Morningstar MeterBus RJ-11 electrical interface to a standard USB 2.0 interface which allows communication between a PC and a Morningstar charge controller or inverter. It may be used with any Morningstar controller or inverter equipped with a meter connection that does not also already have a RS-232 port.

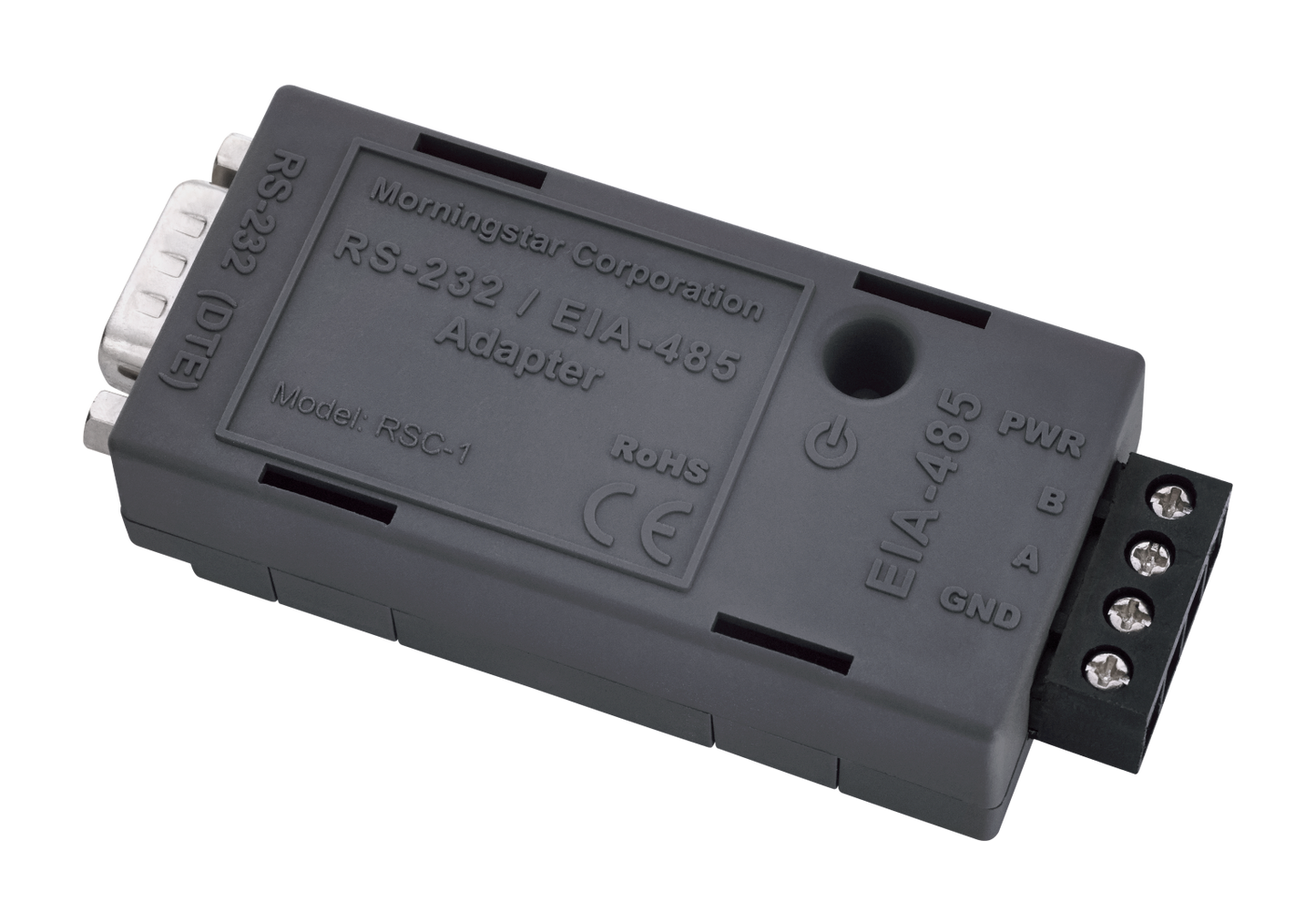

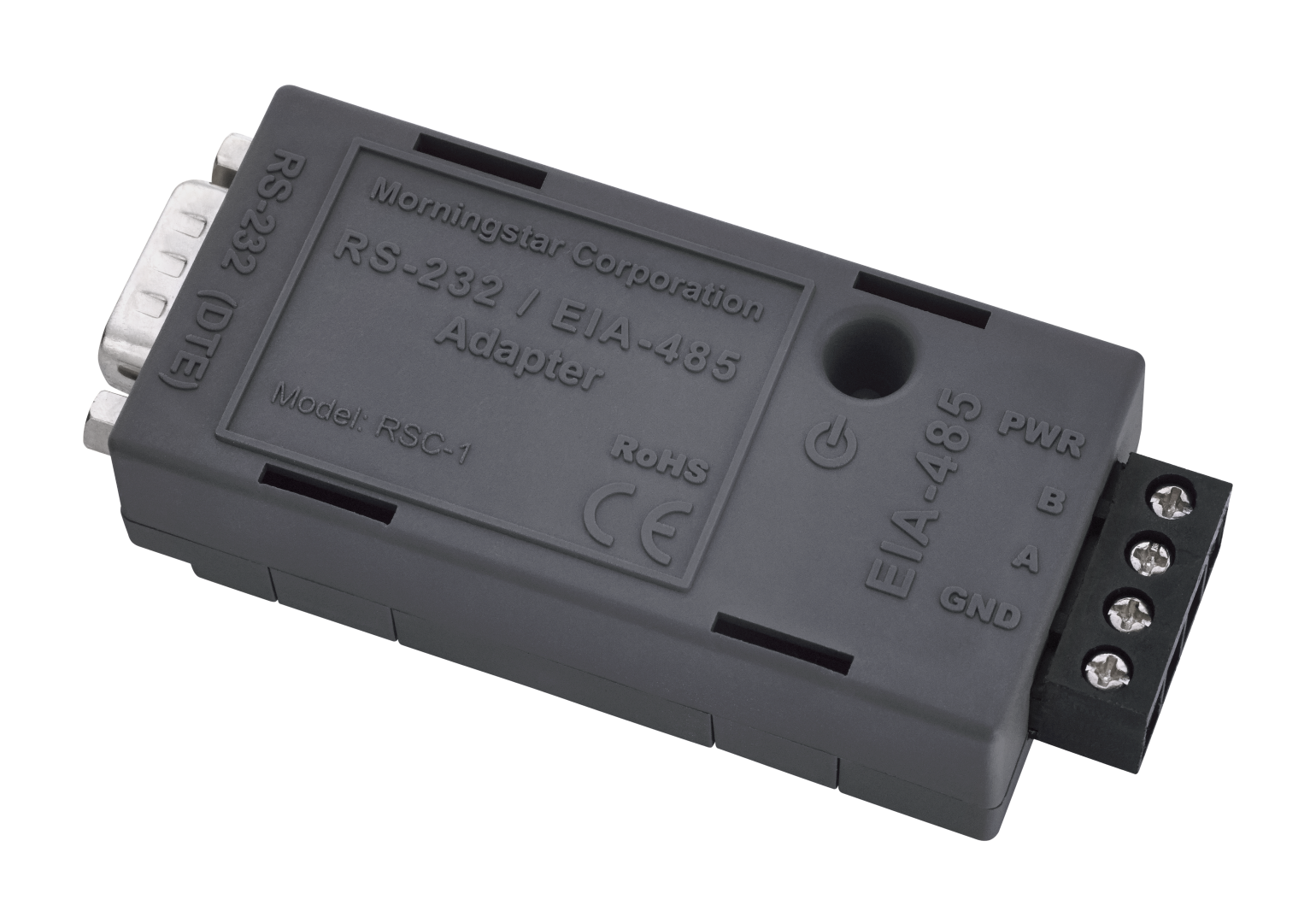

MS-RSC-1 allows up to 128 Morningstar products to communicate on the same communication bus and over much greater distances by converting the RS-232 port to EIA-485.
MS-MRC-1 The Meterbus-485 Adapter ( RJ-11 cable included), converts the Morningstar MeterBus RJ-11 electrical interface to a standard EIA-485 interface. This allows Morningstar controllers or inverters with a MeterbusTM port, but without an EIA-485 communications port, to network with Morningstar EIA-485 devices like the GenStar and TriStar MPPT controllers. The MRC-1 can also be used for EIA-485 communications with any 3rd party hardware that supports Modbus communication.
Quick Links
Good to know
Technical Specifications
SKU | MS-MSC | MS-UMC-1 | MS-RSC-1 |
---|---|---|---|
Weight (kg) | 0.05 | 0.05 | 0.12 |
Intrastat Commodity Code | 90328900 | 90328900 | 90328900 |
*see manufacturer's documentation for further information
