Morningstar ReadyEdge

Morningstar ReadyEdge

ReadyEdge™ pairs seamlessly with Morningstar controllers and accessories to deliver real-time system visibility—locally through the LiveView dashboard and when utilized, through the Morningstar Solar Connect cloud. Operators can protect uptime, reduce risk, and sustain operations from anywhere.

Off-grid power systems often show early warning signs well before outages occur. Without real-time monitoring, operators are forced to respond after the fact—relying on manual checks and costly site visits.

ReadyEdge delivers system-wide intelligence for off-grid and solar power systems through a single, intuitive interface—providing real-time visibility, remote monitoring, and the insight needed to manage systems proactively.

Key Features and benefits:

• Use as a stand-alone device or connect up to
  sixteen (16) Morningstar products
• Suitable for 12, 24, 36, and 48V battery
  systems
• Includes access to Morningstar Solar Connect
  remote cloud service for visibility into your
  remote energy system anywhere in the world
• Automatic Generator Start (AGS) with 2-wire
  signaling and AC, DC, or Dry Contact feedback
  with retries
• Monitor temperatures, voltages, theft loops, door
  switches, smoke/water detectors, tank levels (water,
  fuel), and more

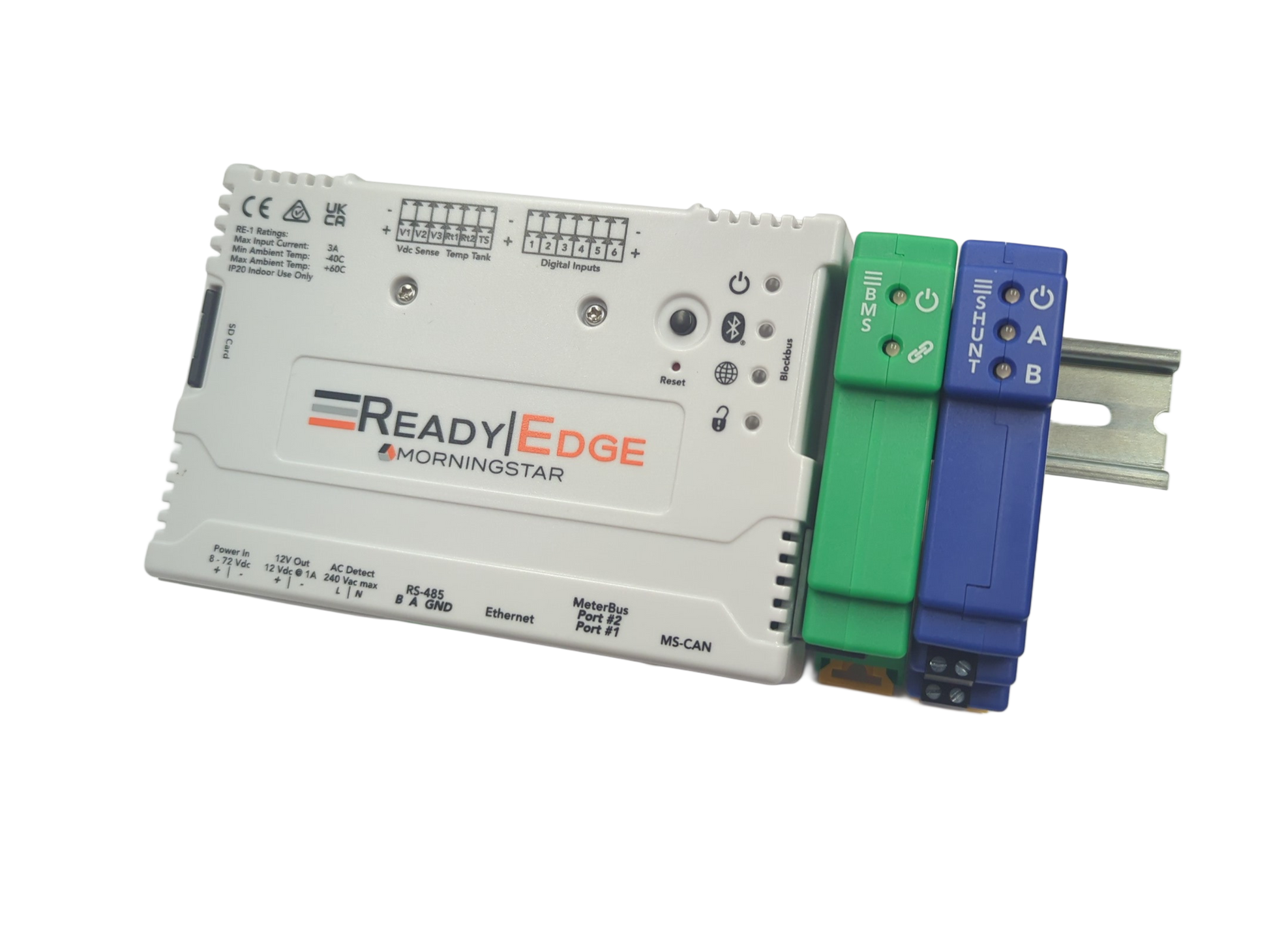

• Expand hardware and software capabilities with up to
  6 ReadyBlocks - use the blocks in any
  combination (ReadyBlocks must be purchased separately)
• 12 Volt, 12 Watt output for powering EIA-485 bus,
  driving a relay, or other small 12 Volt loads
• Compatible with negative-ground, positive-ground,
  and ungrounded systems
• Pair the ReadyEdge with a ReadyShunt to
  capture precise battery State of Charge and
  other metrics
• AC Detect feature signals when AC power is
  present or lost - supports up to 240 Vac input
  LiveView 2.0 Web App interface provides full
  system visibility, configuration, and control.
• Manage the ReadyEdge, connected Products,
  inputs, outputs, and generator/charging sources
  from any web browser on a shared network
