Mounting Systems Infix - Clamp Adapters

Mounting Systems Infix - Clamp Adapters

Module clamp adapters for use with the Infix in-roof system from Mounting Systems.

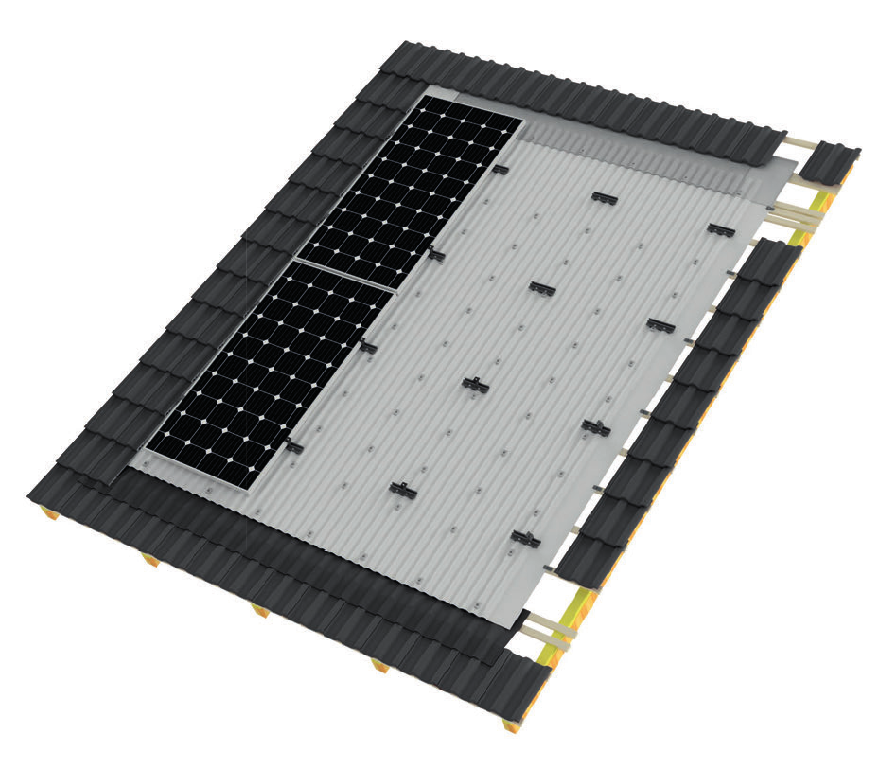

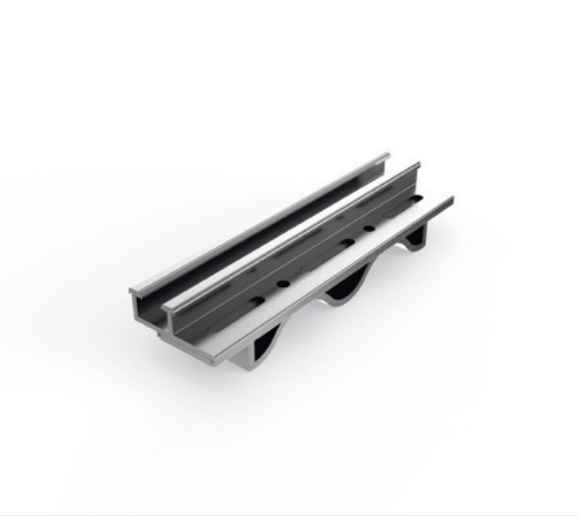

The portrait adapter is supplied in two pieces to allow horizontal adjustment of the clamping point.

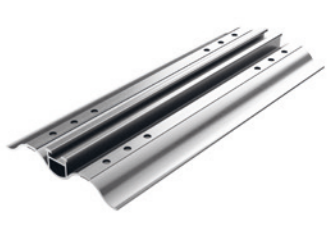

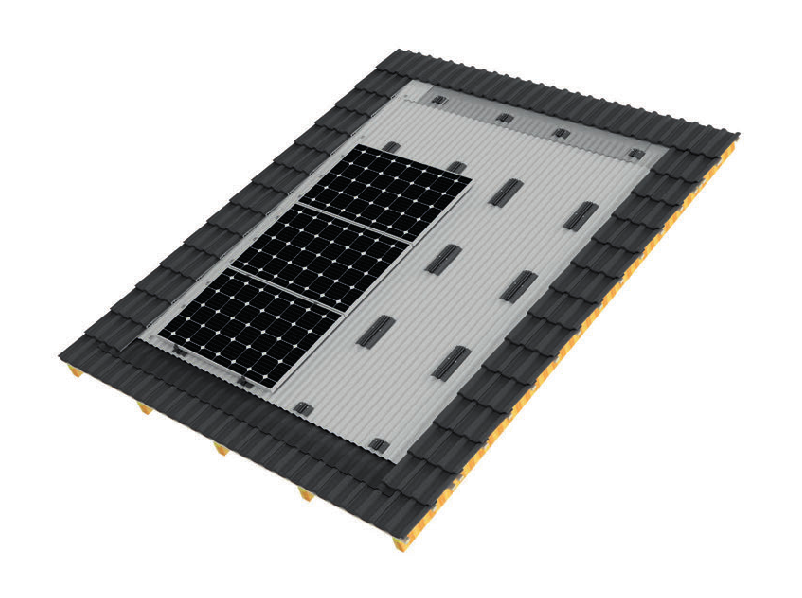

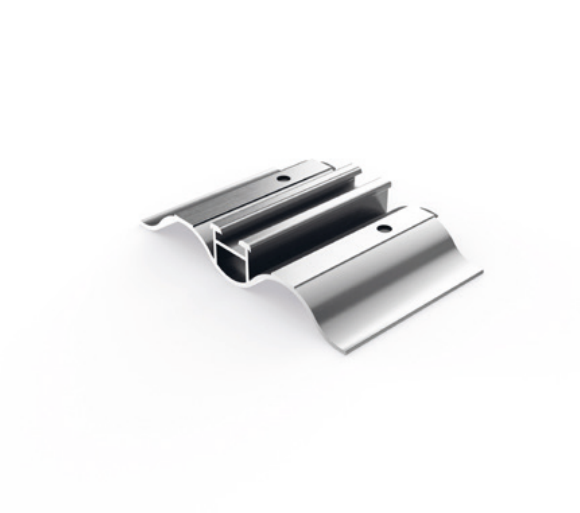

There are two options for landscape adapters; the short adapter is typically used at the top and bottom of the array and the long adapter in the middle of the array, though the short adapter can also be used if batten spacing allows.

With Infix, photovoltaic modules can be easily integrated into roofs of old and new buildings with any type of roofing. The system is mounted onto existing or new battens and takes the place of the usual roof covering.

The main system components are made of aluminium and stainless steel and can be fully recycled. The high corrosion resistance guarantees a maximum service life. Mounting Systems offer a 10-year warranty.

At a glance:

• Complete roof integration
• Easy to install
• Optimal ventilation
• No plastic products
• Roof pitch from 10° to 45°

You can use Mounting Systems EasyTool designer to produce detailed system designs.
