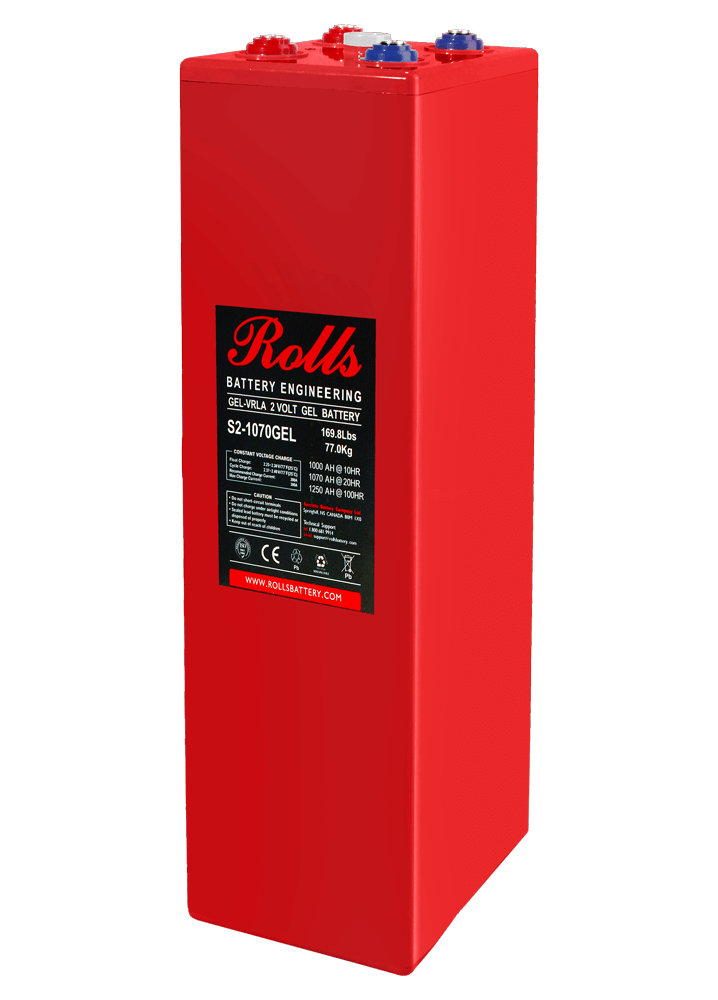

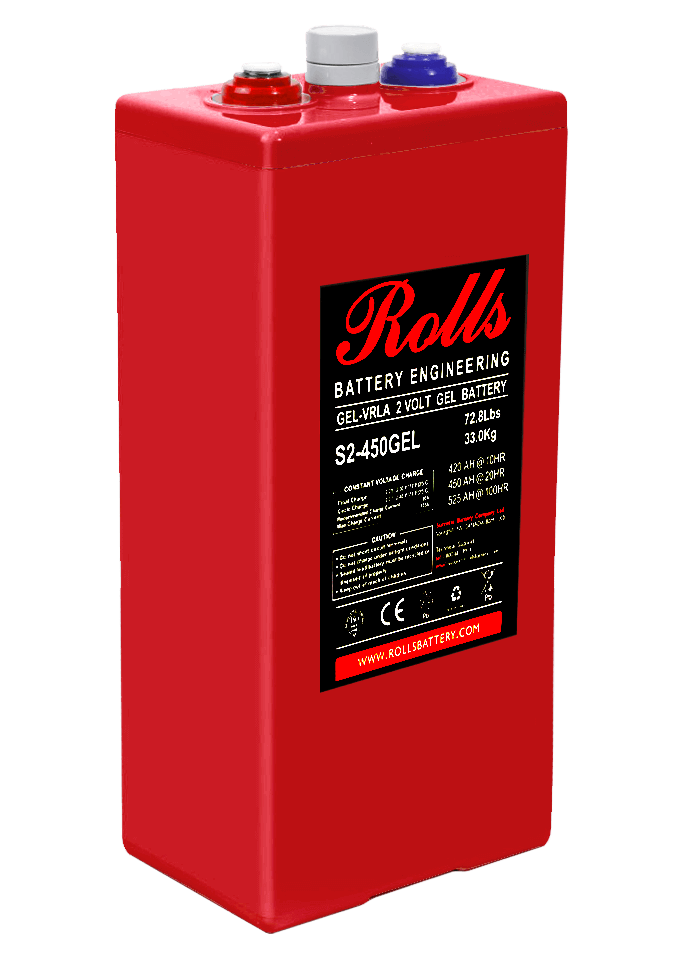

Rolls OPzV Gel Batteries
Optimised for stringed use in large sized solar installations, Rolls OPzV Gel range is designed to maximise efficiency and cycle life, making them ideal for off-grid solar applications.
They feature highly effective tubular plate technology which maximises charge acceptance and a design which allows for excellent compatibility and space utilisation. In addition this, these batteries also feature all of the maintenance free benefits that come with gel technology batteries.
- 3200 cycles at 50% DOD
- High impact resistant ABS red case
- Product warranty - 3 years
- Tubular Plate Design with 20 year operational float life
- Easy transportation & system configuration
- M8/M10 screw terminal poles for easy connection
- These cells should only be installed vertically - special versions available for horizontal installation.
- Include link leads with integral cover and terminal bolts
Good to know
Technical Specifications
SKU | RB-S2-224GEL | RB-S2-280GEL | RB-S2-336GEL | RB-S2-405GEL | RB-S2-486GEL | RB-S2-567GEL | RB-S2-690GEL | RB-S2-920GEL | RB-S2-1150GEL | RB-S2-1380GEL | RB-S2-1620GEL | RB-S2-2160GEL | RB-S2-2700GEL | RB-S2-3240GEL |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
System Battery Voltage | 2V | 2V | 2V | 2V | 2V | 2V | 2V | 2V | 2V | 2V | 2V | 2V | 2V | 2V |
Storage Capacity (C100) | 301Ah | 376Ah | 452Ah | 556Ah | 668Ah | 782Ah | 968Ah | 1287Ah | 1610Ah | 1938Ah | 2197Ah | 2927Ah | 3655Ah | 4402Ah |
Storage Capacity (C20) | 252Ah | 315Ah | 378Ah | 459Ah | 551Ah | 643Ah | 785Ah | 1046Ah | 1308Ah | 1571Ah | 1828Ah | 2437Ah | 3044Ah | 3660Ah |
Storage Capacity (C10) | 224Ah | 280Ah | 336Ah | 504Ah | 486Ah | 567Ah | 690Ah | 920Ah | 1150Ah | 1380Ah | 1620Ah | 2160Ah | 2700Ah | 3240Ah |
Weight (kg) | 20 | 24 | 28 | 31 | 37 | 42 | 50 | 68 | 82 | 97 | 120 | 165 | 200 | 240 |
Intrastat Commodity Code | 85072080 | 85072080 | 85072080 | 85072080 | 85072080 | 85072080 | 85072080 | 85072080 | 85072080 | 85072080 | 85072080 | 85072080 | 85072080 | 85072080 |
Downloads /
Documents
*see manufacturer's documentation for further information
