Schletter Fasteners for Roofs with Steel Sub-Structures
Regular price
From £0.26
Regular price
Sale price
From £0.26
Unit price
per
Shipping calculated at checkout.
Designed especially for a safe fastening to corrugated fibre cement or trapezoidal sheet metal roofs on a steel substructure avoiding breakage and leaks.
Select model
| Variant | Price (exc tax) |
|---|---|
|
SCH-119004-003

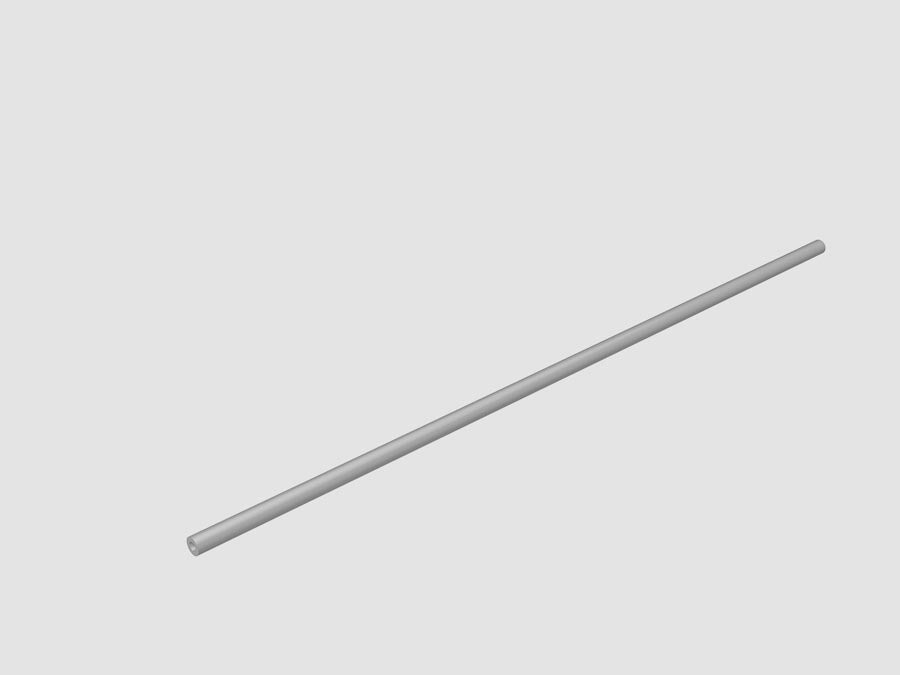

Spacer Alu 20 1m |
Regular price
£11.95
Regular price
Unit price
per
|
|
SCH-119005-000

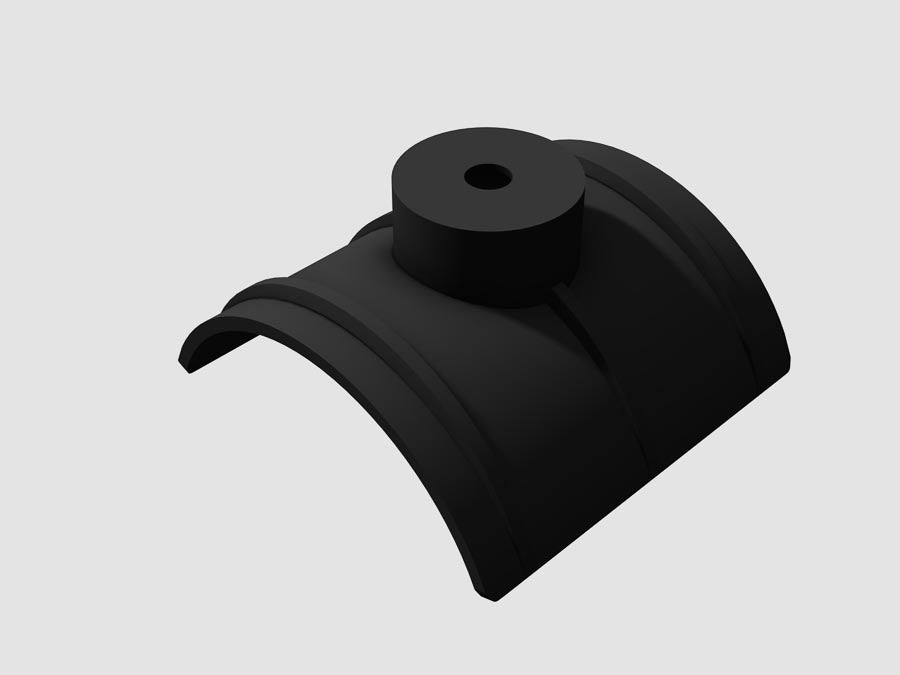

Sealing cap corrugated sheet 5/6/8 |
Regular price
£1.21
Regular price
Unit price
per
|
|
SCH-119005-001

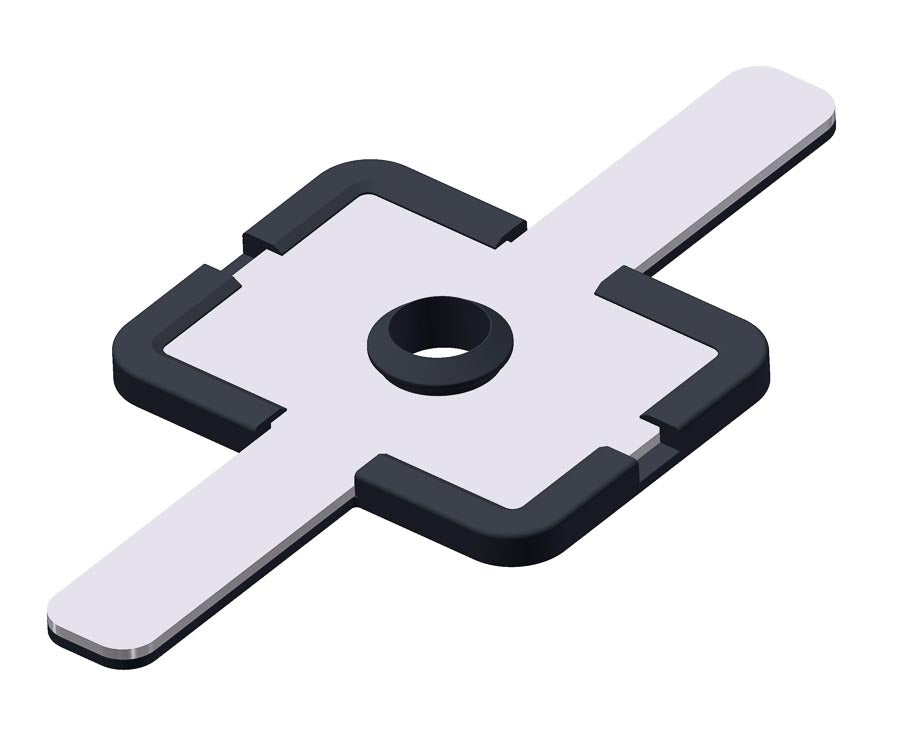

Universal Calotte with EPDM |
Regular price
£1.67
Regular price
Unit price
per
|
|
SCH-119033-002

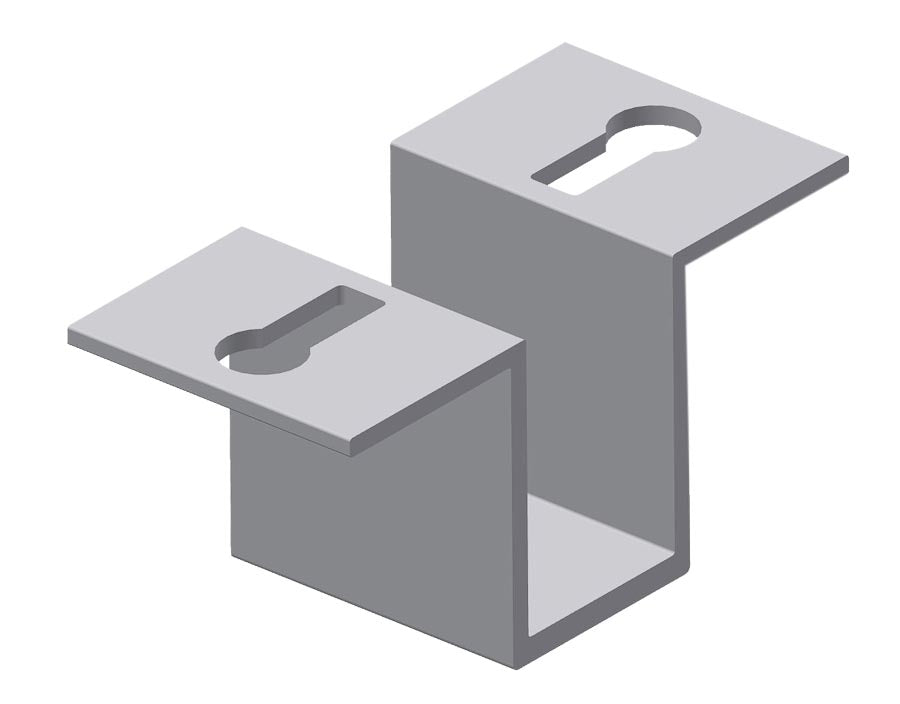

Universal Adapter Uno M8 |
Regular price
£2.13
Regular price
Unit price
per
|
|
SCH-943763-064
Screw 6.3x64min.1.5mm self-tapping A2 |
Regular price
£0.26
Regular price
Unit price
per
|
|
SCH-943718-100
Screw 8x100 min 1.5 self tapw.wash A2 |
Regular price
£1.03
Regular price
Unit price
per
|
|
SCH-943763-115
Screw 6.3x115min.1.5mm self-tapping A2 |
Regular price
£0.47
Regular price
Unit price
per
|
|
SCH-943763-150
Screw 6.3x150min.1.5mm self-tapping A2 |
Regular price
£0.58
Regular price
Unit price
per
|
|
SCH-943763-200
Screw 6.3x200min.1.5mm self-tapping A2 |
Regular price
£0.89
Regular price
Unit price
per
|
Schletter Fasteners for Roofs with Steel Sub-Structures
Designed especially for a safe fastening to corrugated fibre cement or trapezoidal sheet metal roofs on a steel substructure avoiding breakage and leaks.
Due to the utilisation of distance tubes, the fastening system FixE transfers fastening forces and possible bending moments safely into the substructure (such as sheet metal Z purlins). A specially shaped gasket made of UV-resistant EPDM-rubber serves as a sealing.
System comprises:
- Aluminium Universal adaptor top piece
- M8 stainless steel threaded screws with vulcanised EPDM-seal (UV-resistant)
- Sealing cap to suit corrugated sheet or Universal Callotte to suit trapezoidal sheet metal
- Aluminium distance spacer tube. Available in 1m lengths for cutting to size to suit different corrugated profile heights.
Good to know
Technical Specifications
| SKU | SCH-119004-003 | SCH-119005-000 | SCH-119005-001 | SCH-119033-002 | SCH-943763-064 | SCH-943718-100 | SCH-943763-115 | SCH-943763-150 | SCH-943763-200 |
|---|---|---|---|---|---|---|---|---|---|
| MPN | 119004-003 | 119005-000 | 119005-001 | 119033-002 | 943763-064 | 943718-100 | 943763-115 | 943763-150 | 943763-200 |
| Rail Type | ProLine, Classic | ProLine, Classic | ProLine, Classic | ProLine, Classic | ProLine, Classic | ProLine, Classic | ProLine, Classic | ProLine, Classic | ProLine, Classic |
| Weight (kg) | 0.62 | 0.01 | 0.01 | 0.1 | 0.01 | 0.02 | 0.01 | 0.01 | 0.01 |
| Intrastat Commodity Code | 76109090 | 40081900 | 40081900 | 76109090 | 73181410 | 73181410 | 73181410 | 73181410 | 73181410 |
Downloads /
Documents
*see manufacturer's documentation for further information
