Schletter ProLine Pro Module Clamps
Regular price
From £1.36
Regular price
Sale price
From £1.36
Unit price
per
Shipping calculated at checkout.
The Schletter ProLine Pro module clamp is designed for all Schletter Proline rails. The clamp claws can be rotated to suit both portrait and landscape installations and have greater clamp depth to help in high wind areas.
Select model
| Variant | Price (exc tax) |
|---|---|
|
SCH-131021-000
Proline Silver End Clamp Pro 30 - 47mm |
Regular price
£1.36
Regular price
Unit price
per
|
|
SCH-131021-001

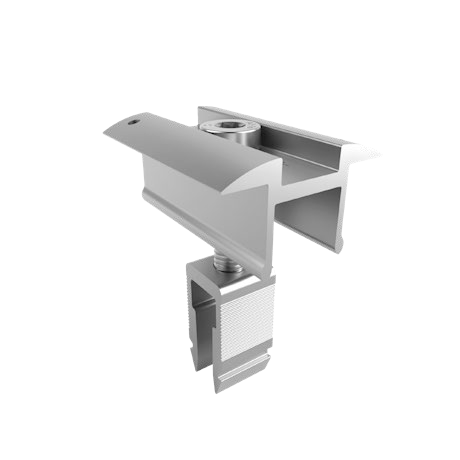

Proline Silver Mid Clamp Pro 30 - 47mm |
Regular price
£1.36
Regular price
Unit price
per
|
|
SCH-131021-900

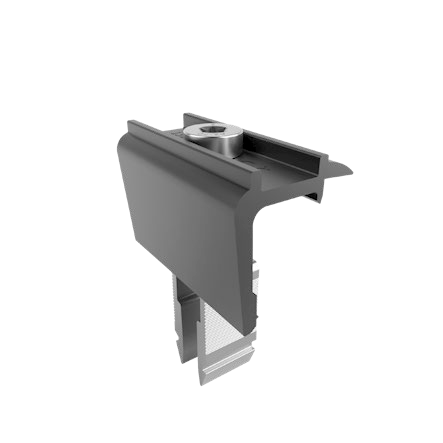

Proline Black End Clamp Pro 30 - 47mm |
Regular price
£2.19
Regular price
Unit price
per
|
|
SCH-131021-901

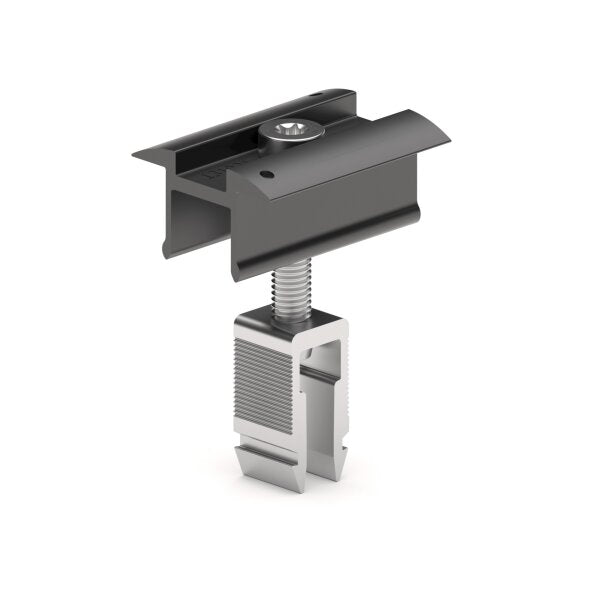

Proline Black Mid Clamp Pro 30 - 47mm |
Regular price
£2.19
Regular price
Unit price
per
|
Schletter ProLine Pro Module Clamps
The Schletter ProLine Pro module clamp is designed for all Schletter Proline rails. The clamp claws can be rotated to suit both portrait and landscape installations and have greater clamp depth to help in high wind areas.
- Suitable for all module frame thicknesses from 30 - 47 mm.
- Clamping length 50 mm
- Clamping depth 8.5 mm
- Material: Aluminium EN AW 6063 – T66
- Integrated earth pin
- Can only be combined with ProLine profiles
- Just one tool: T40 Torx
- Fully pre-assembled
- Quick installation
Good to know
Technical Specifications
| SKU | SCH-131021-000 | SCH-131021-001 | SCH-131021-900 | SCH-131021-901 |
|---|---|---|---|---|
| Intrastat Commodity Code | 76109090 | 76109090 | 76109090 | 76109090 |
Downloads /
Documents
*see manufacturer's documentation for further information
