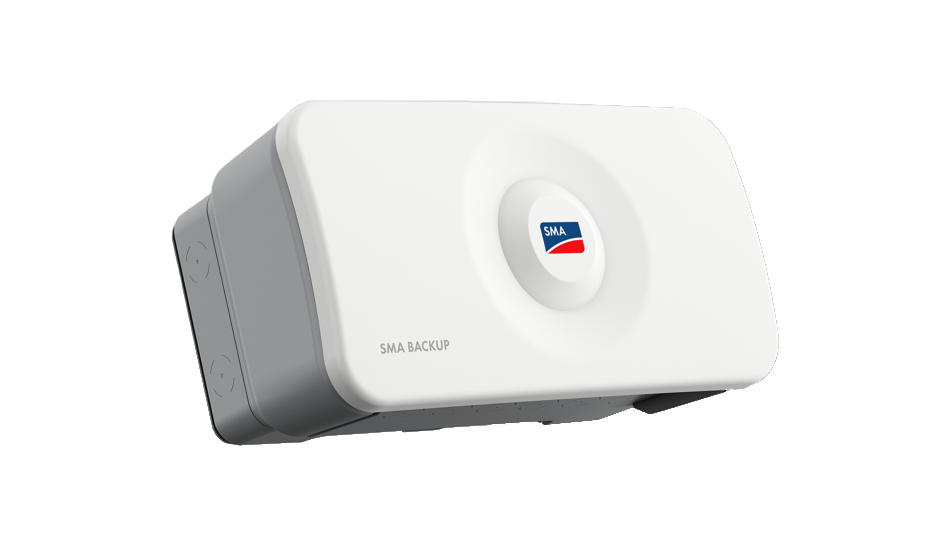

SMA Backup 1P Automatic Changeover Switch
This single phase automatic switchover switch is compatible with the Sunny Boy Smart Energy hybrid inverters and enables a smooth transition between grid and battery-backup operation.
Select model
| Variant | Price (exc tax) |
|---|---|
|
BU-SBSE-1P-50
SMA Backup 1P automatic changeover switch |
Regular price
£599.34
Regular price
Unit price
per
|
SMA Backup 1P Automatic Changeover Switch
This single phase automatic switchover switch is compatible with the Sunny Boy Smart Energy hybrid inverters and enables a smooth transition between grid and battery-backup operation.
Provides back-up of all single-phase loads up max. 63 A.
Adjustable switchover time between battery backup and parallel grid operation from 0 to 600 s (default 5 s).
Easy installation
IP65 enclosure for simple and flexible installation
- Can be retrofitted to existing systems
- Contains integrated backup fuse for inverter (L and N)
- Offers space for installation of external RCD, overvoltage protection, Sunny Home Manager or Energy Meter CT
Convenient and safe
- Automatic supply of the loads in the event of a grid failure through grid failure detection
- Low self-consumption in parallel grid operation (below 1 W)
- Warranty: 2 years
Good to know
Technical Specifications
| SKU | BU-SBSE-1P-50 |
|---|---|
| Power Rating | 3600W |
| Max VOC | 600 |
| Max Current (DC) | 30 |
| MPPT Trackers | 3 |
| Phases | Single Phase |
| Connectivity | Ethernet, WiFi |
| Height | 586 |
| Width | 500 |
| Depth | 236 |
| Weight (kg) | 17.5 |
| Warranty | 10 Years* |
| Certification | G98, G99, G100 |
| IP Rating | IP65 |
| On Grid / Off Grid | On Grid |
| Backup Compatibility | Yes* |
| Lithium Compatibility | Yes* |
| Intrastat Commodity Code | 85371098 |
Downloads /
Documents
Related Products
SMA Sunny Boy Smart Energy
These are the ideal gateway to an all-round energy transition in the home. As a PV and battery inverter in one, it ensures a reliable and sustainable supply of energy. Thanks to the integrated secure power supply function and an optional battery backup function*, it will continue to run even if the utility grid fails.
SMA Sunny Home Manager
The Sunny Home Manager is the ideal solution for simple plant monitoring and intelligent energy management. It provides remote monitoring via the SMA Sunny Portal and an overview of all the energy flows taking place in the household. It also displays recommended actions and is able to control various smart home appliances.
*see manufacturer's documentation for further information
