SMA Sunny Tripower CORE1
Regular price
£4,787.78
Regular price
Sale price
£4,787.78
Unit price
per
Shipping calculated at checkout.

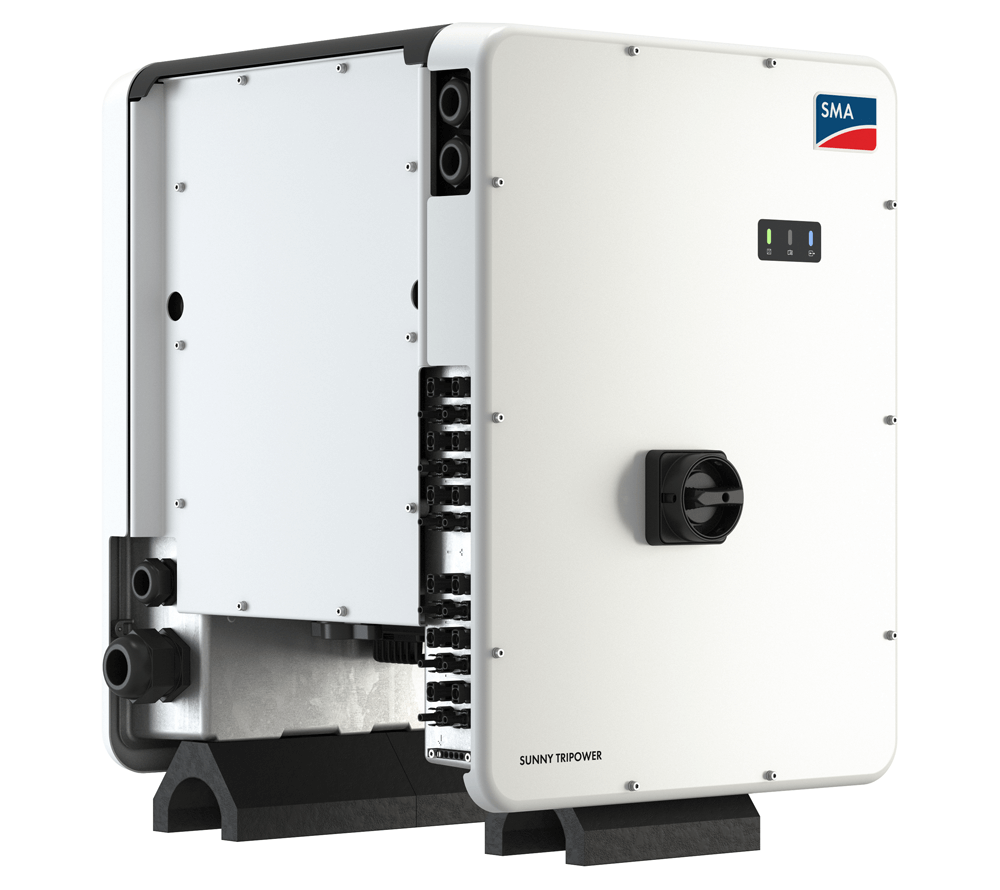

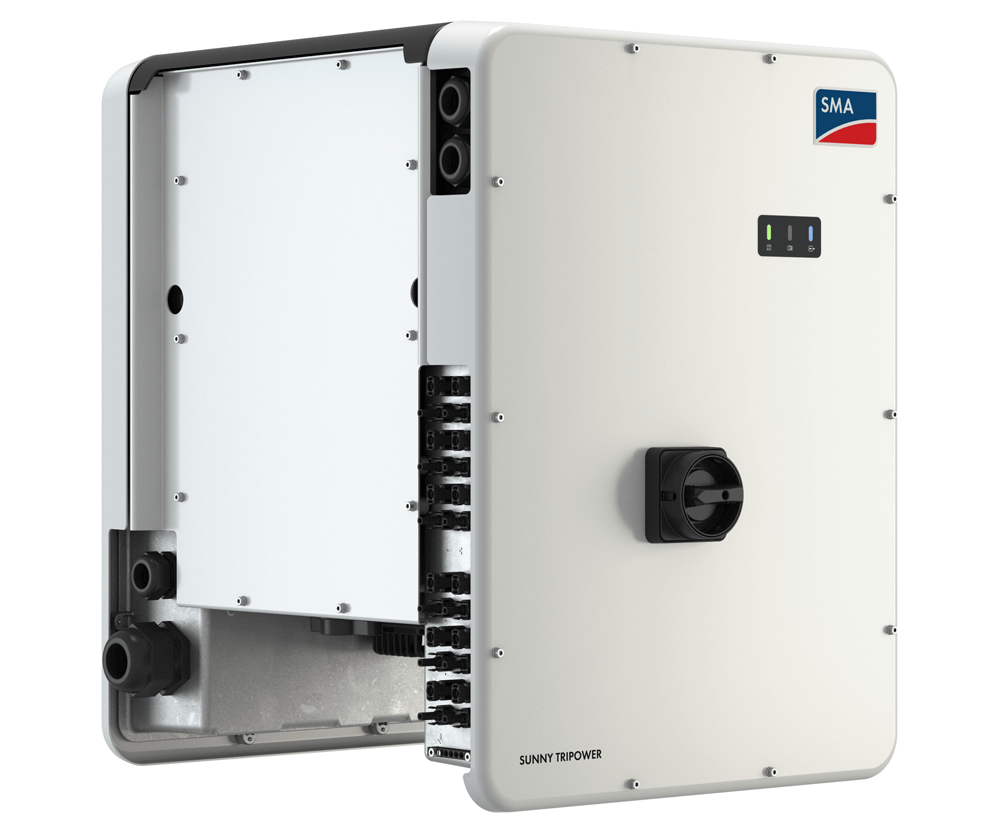

The SMA Sunny Tripower CORE1 50kW 3-phase inverter is the world’s first free-standing string inverter for decentralised rooftop, ground-mount and covered parking PV systems.
Select model
| Variant | Price (exc tax) | ||
|---|---|---|---|
|
STP-50-41
Sunny Tripower Core1 floor standing 3 ph. inverter 50kW |
Regular price
£4,787.78
Regular price
Unit price
per
|
||
SMA Sunny Tripower CORE1
The SMA Sunny Tripower CORE1 50kW 3-phase inverter is the world’s first free-standing string inverter for decentralised rooftop, ground-mount and covered parking PV systems.
The groundbreaking design can vastly reduce installation time, minimise balance of system component costs and offers flexibility to suit a huge range of applications.
- 50kW, scalable for MW systems
- 3 phase
- 6 independent MPP trackers
- Over-dimensioning of a PV array of up to 150% is possible
- 12 direct string inputs
- Integrated DC isolator
- Optional AC and DC over-voltage protection
- OptiCool™ active cooling system
- Integrated Wi-Fi
- Powerful PV system monitoring and control functions, SunSpec ModBus® compatibility and optional 24/7 remote monitoring
- Warranty: Five years
Good to know
Technical Specifications
| SKU | STP-50-41 |
|---|---|
| Power Rating | 50000W |
| MPPT Trackers | 6 |
| Phases | Three phase |
| Connectivity | Wi-Fi, Ethernet |
| Connection | Sunclix (solar), Connector (AC) |
| Height | 733 |
| Width | 569 |
| Depth | 621 |
| Weight (kg) | 98 |
| Warranty | 5 |
| Certification | G99 |
| IP Rating | IP65 |
| On Grid / Off Grid | On Grid, Off Grid* |
| Intrastat Commodity Code | 85044086 |
*see manufacturer's documentation for further information
