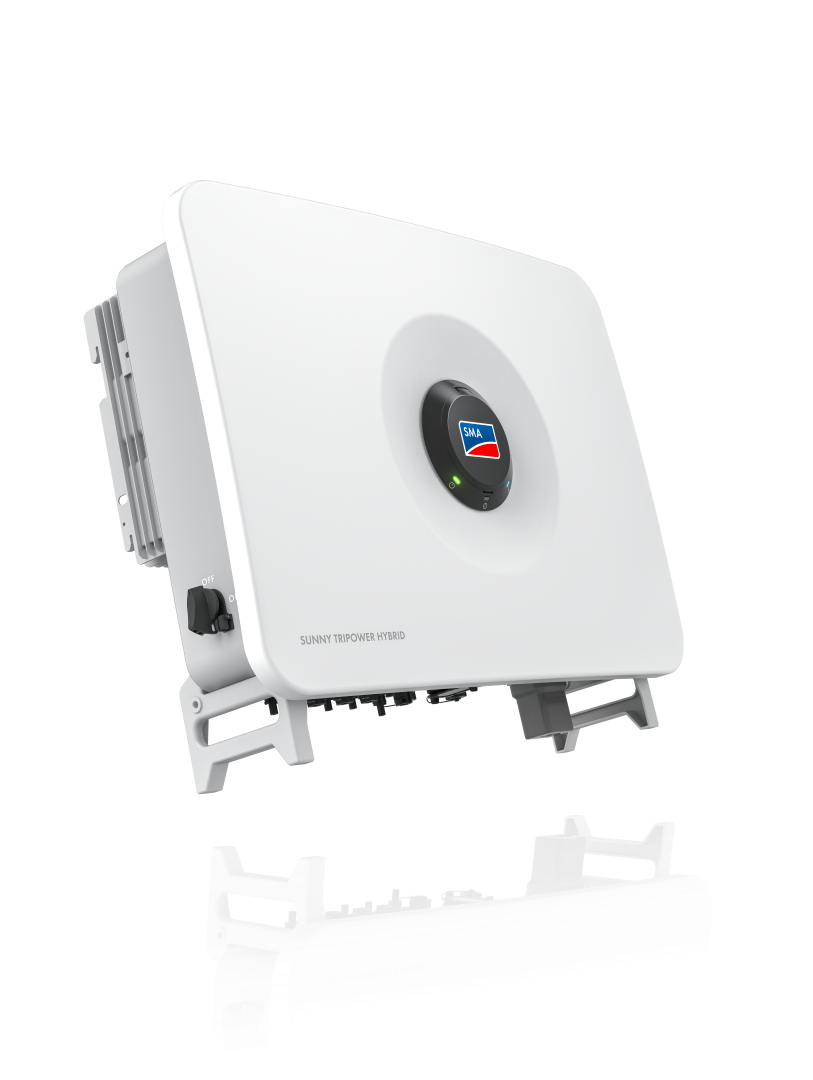

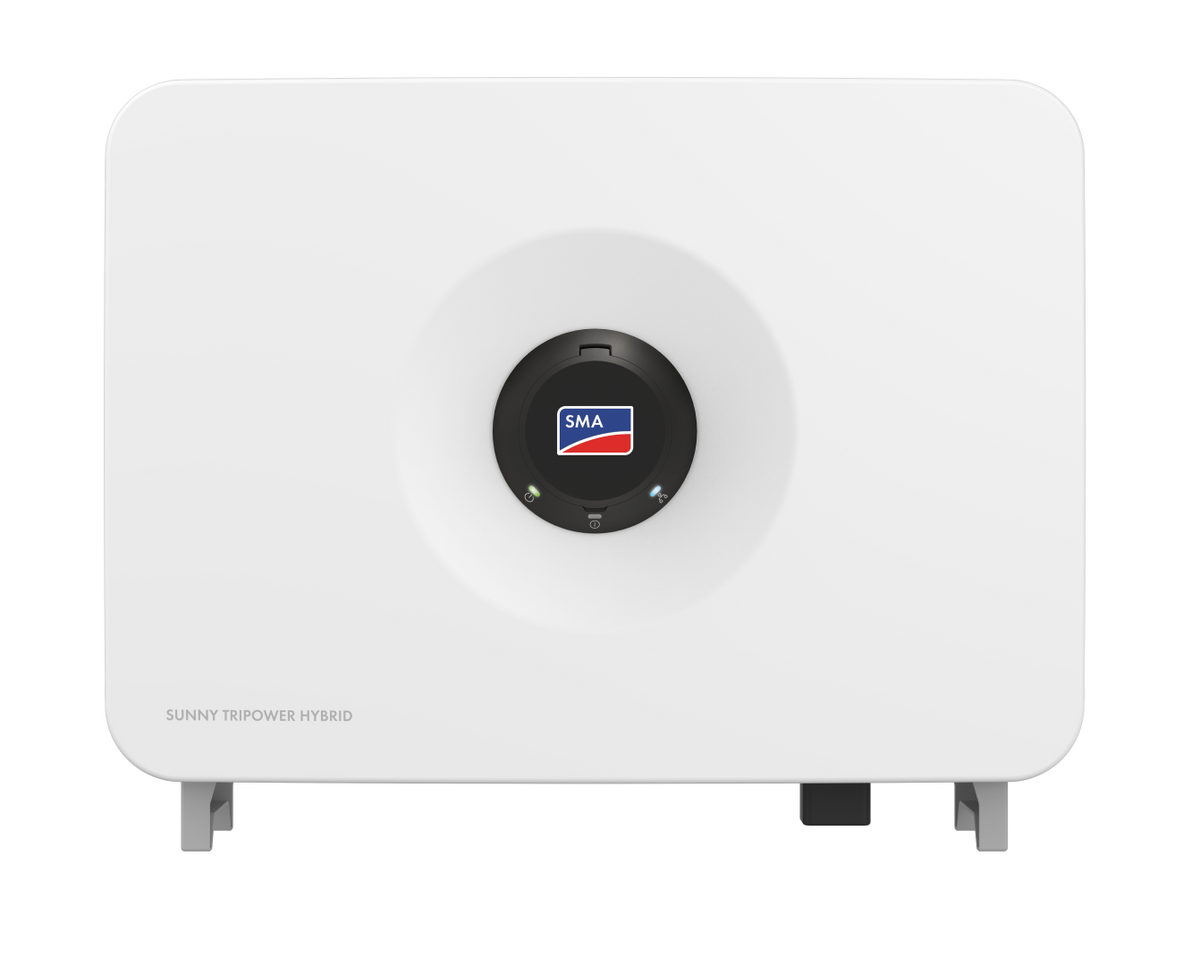

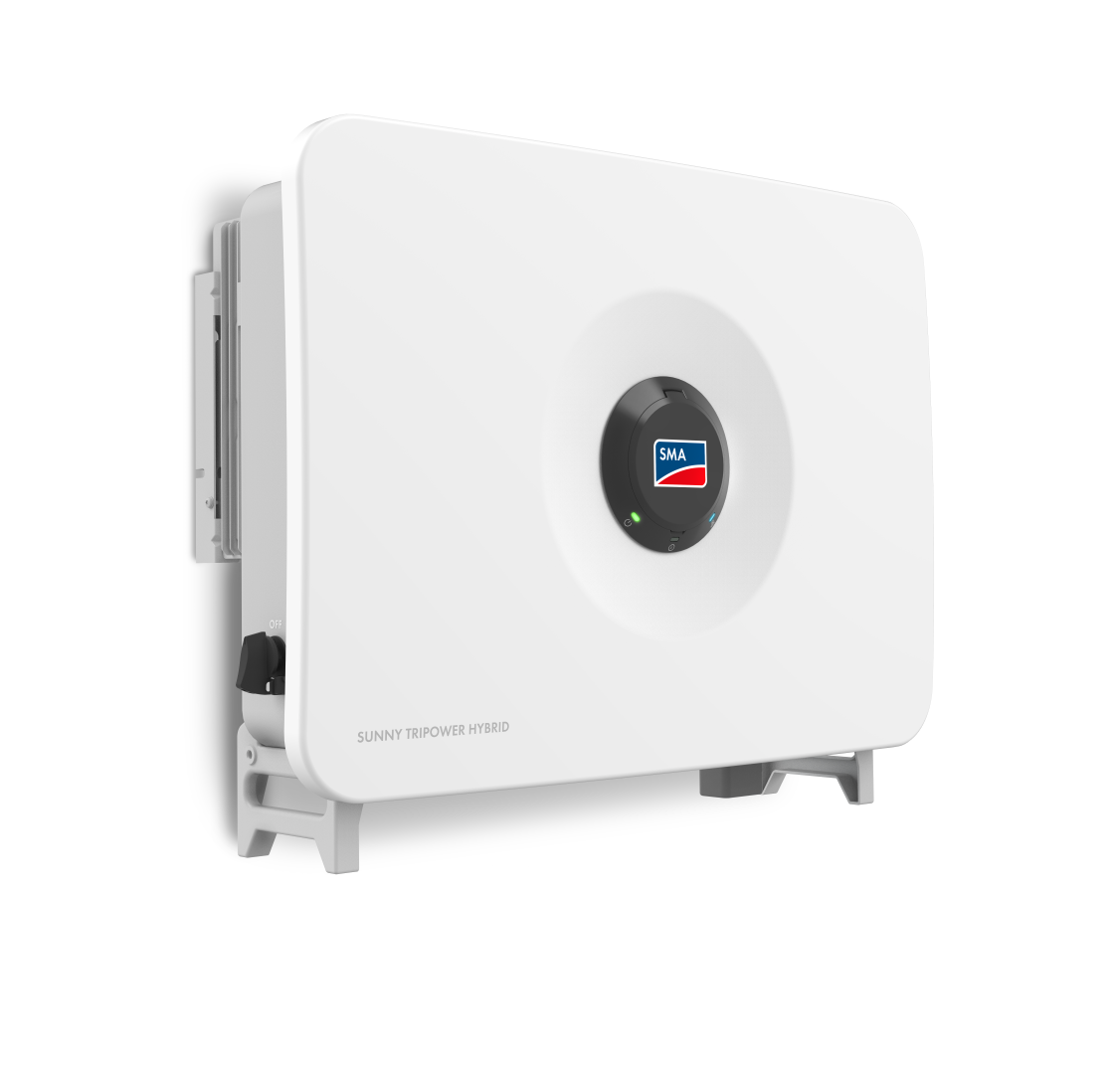

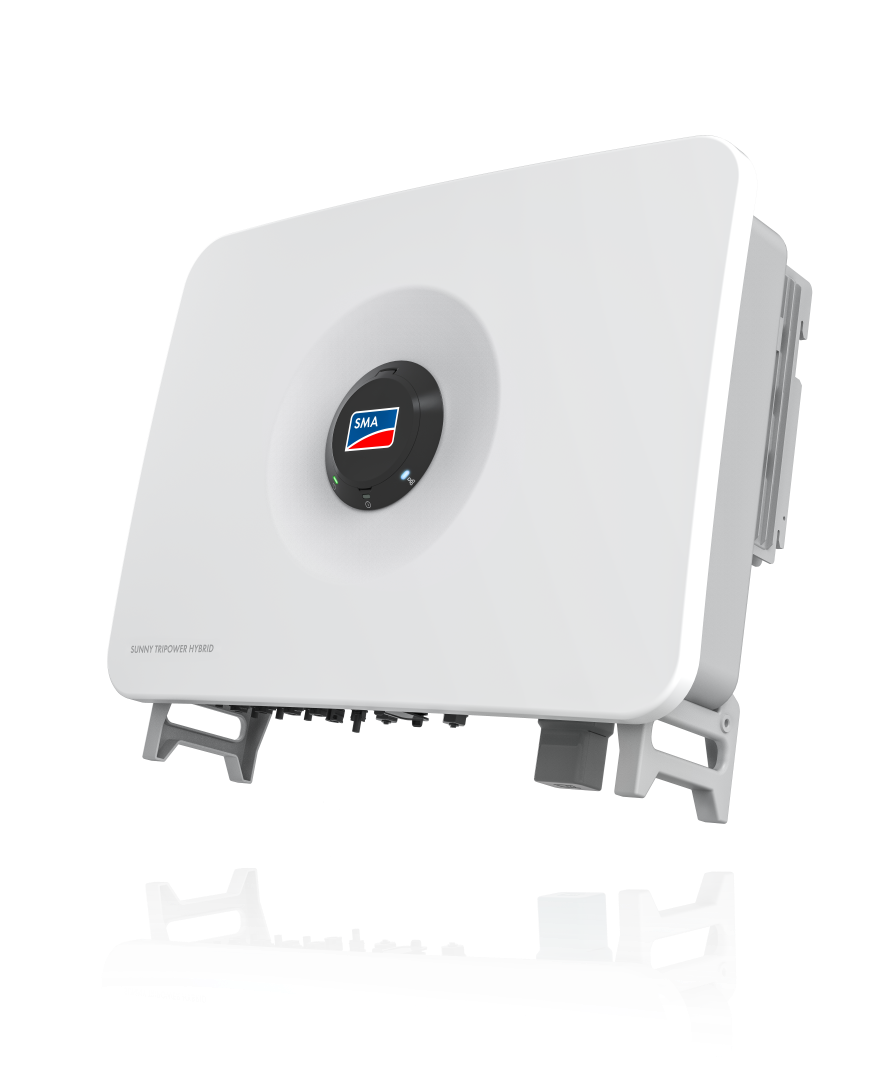

SMA Sunny Tripower Hybrid X 20 / 25 / 30
The SMA Sunny Tripower Hybrid X hybrid inverter, with versions from 20.0kW to 30.0kW is ideal for supplying solar power to three-phase properties.
Select model
| Variant | Price (exc tax) |
|---|---|
|
SMA-STPH20-70
SMA Sunny Tripower Hybrid X20 3ph 20kW PV Hybrid inverter |
Regular price
£3,633.07
Regular price
Unit price
per
|
|
SMA-STPH25-70
SMA Sunny Tripower Hybrid X25 3ph 25kW PV Hybrid inverter |
Regular price
£3,979.73
Regular price
Unit price
per
|
|
SMA-STPH30-70
SMA Sunny Tripower Hybrid X30 3ph 30kW PV Hybrid inverter |
Regular price
£4,233.60
Regular price
Unit price
per
|
SMA Sunny Tripower Hybrid X 20 / 25 / 30
The SMA Sunny Tripower Hybrid X hybrid inverter, with versions from 20.0kW to 30.0kW is ideal for supplying solar power to three-phase properties.
Combines smart technology and integrated services to create a space-saving compact system. Users can easily and conveniently generate, use and store solar power. It is possible to make additions to the system at any time, incorporating e-mobility or heat pumps.
Flexible Power for any System Configuration
- 4 MPP trackers
- Parallel operation of up to 5 hybrid inverters
- Optional: SMA Backup emergency power solution for the entire building
Easy Commissioning
- Commissioning in just 5 minutes via the SMA 360° App
- Integrated System Manager for up to 10 subordinate devices
Integrated Cloud-based Energy Management
- SMA Energy Maximiser: automatic and convenient optimisation for the lowest possible energy costs
- SMA Energy Planner: Basic features always available with manual planning
- Cybersecurity architecture developed and operated by SMA (cloud operations within an ISO 27001 certified organisational unit)
Specifications
Power: 20.0kW / 25.0kW / 30.0 kW
DC-Voltage (Battery): 120 VDC – 800 VDC
Max DC-Current (Battery): 50 A
Efficiency (max.): 98.2%
Warranty: 5 years / 10 years with registration in Sunny Portal / Sunny Places
Good to know
Technical Specifications
| SKU | SMA-STPH20-70 | SMA-STPH25-70 | SMA-STPH30-70 |
|---|---|---|---|
| Intrastat Commodity Code | 85044084 | 85044084 | 85044084 |
