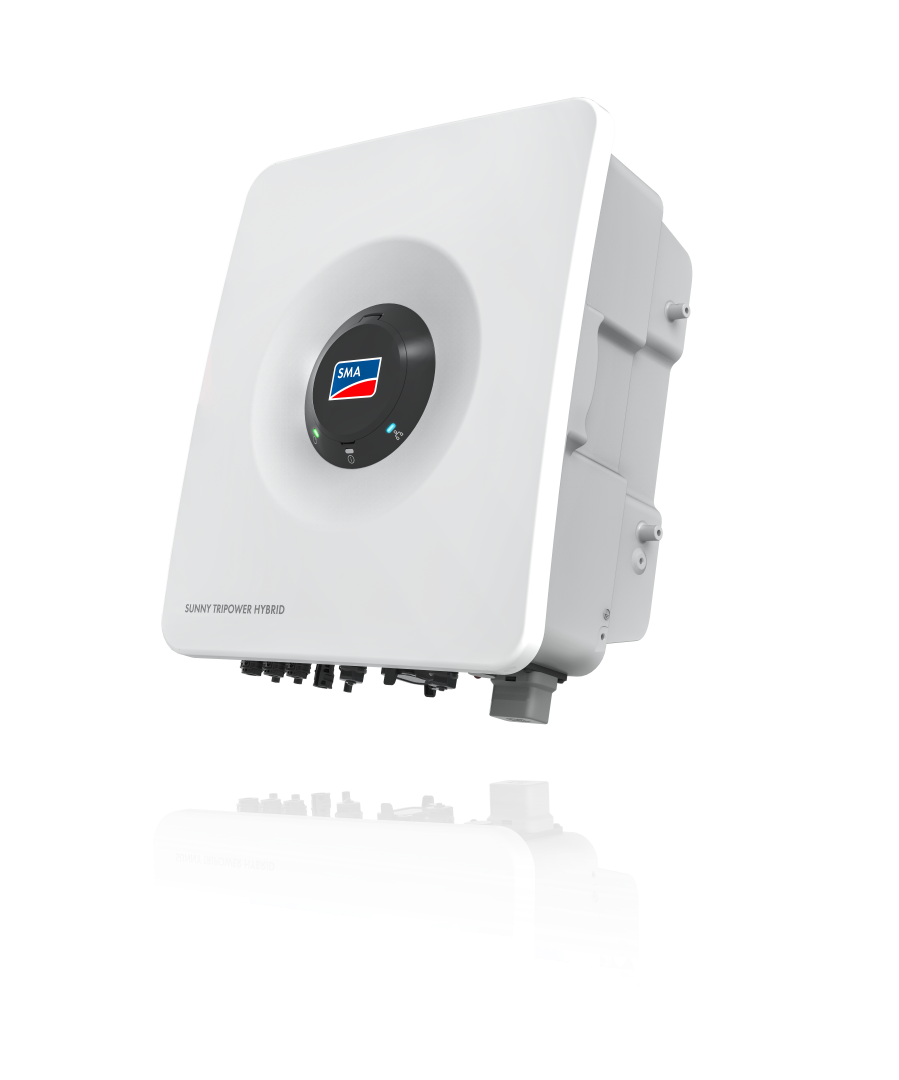

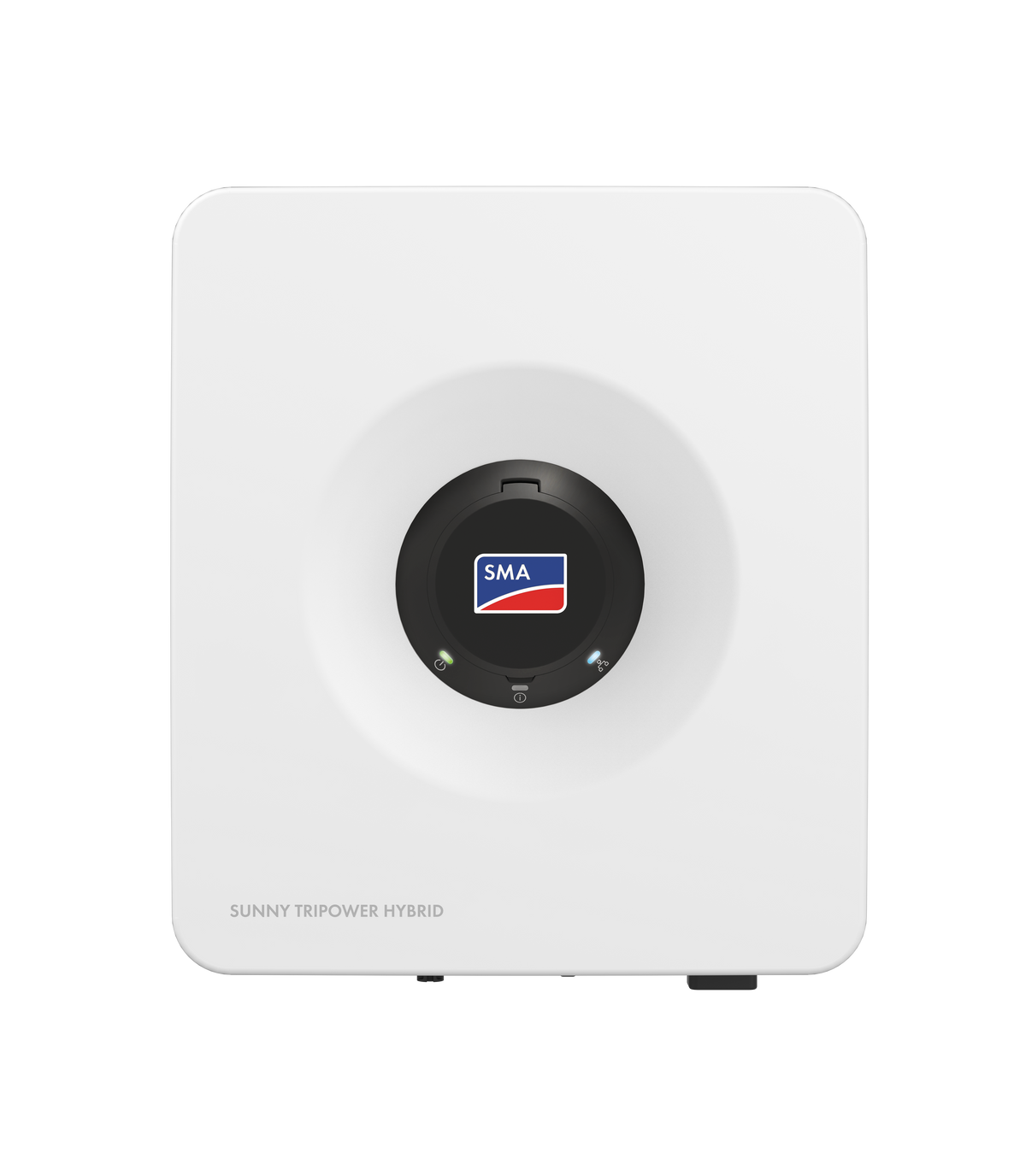

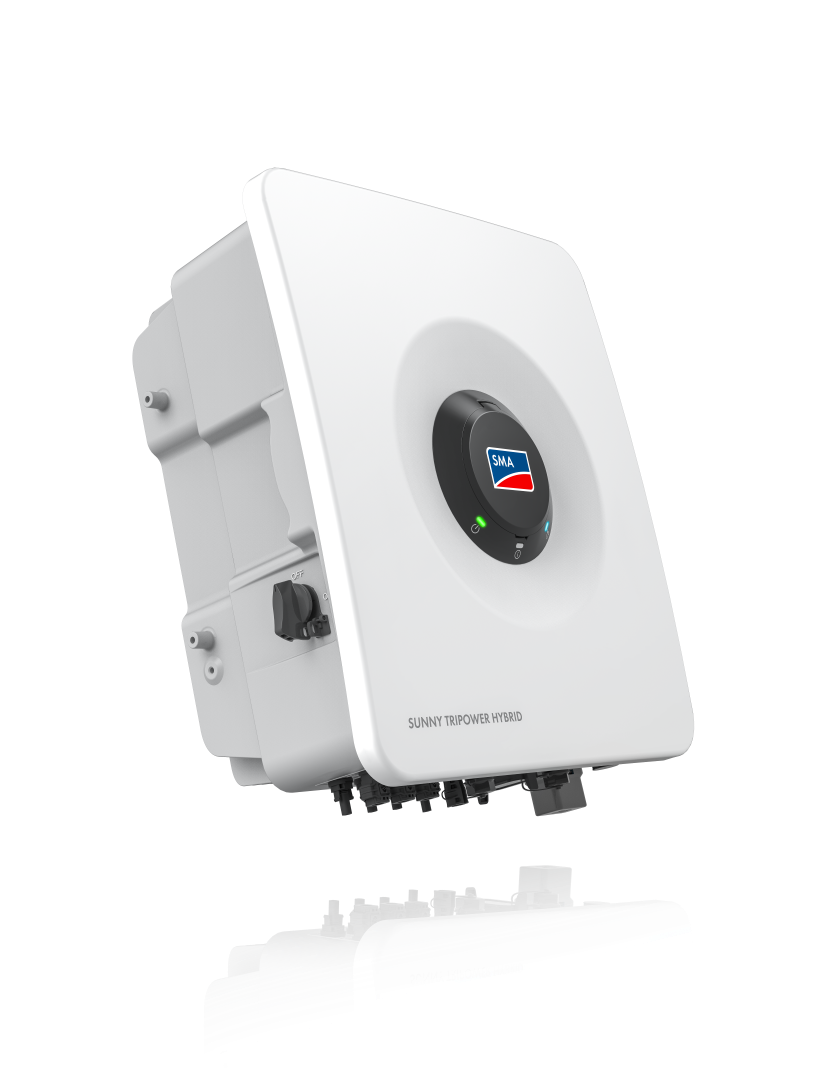

SMA Sunny Tripower Hybrid X 5 / 6 / 8 / 10 / 12 / 15

SMA Sunny Tripower Hybrid X 5 / 6 / 8 / 10 / 12 / 15

The SMA Sunny Tripower Hybrid X  hybrid inverter with versions from 5.0kW to 15.0kW is  ideal  for supplying solar power to three-phase properties.

Combines smart technology and integrated services to create a space-saving compact system. Users can easily and conveniently generate, use and store solar power. It is possible to make additions to the system at any time, incorporating e-mobility or heat pumps.

Flexible Power for any System Configuration

• 3 MPP trackers
• Low PV input voltage (90 V) allowing short strings
• Parallel operation of up to 5 hybrid inverters
• Optional: SMA Backup emergency power solution for the entire building

Easy Commissioning

• Commissioning in just 5 minutes via the SMA 360° App
• Integrated System Manager for up to 10 devices

Integrated Cloud-based Energy Management

• SMA Energy Maximiser: automatic and convenient optimisation for the lowest possible energy costs
• SMA Energy Planner: Basic features always available with manual planning
• Cybersecurity architecture developed and operated by SMA (cloud operations within an ISO 27001 certified organisational unit)

Specifications

Power:  5.0kW / 6.0kW / 8.0kW / 10.0kW / 12.0kW / 15.0 kW
DC-Voltage (Battery): 80 VDC – 600 VDC
Max DC-Current (Battery): 50 A
Efficiency (max.): 98.3%
Warranty: 5 years / 10 years with registration in Sunny Portal / Sunny Places
