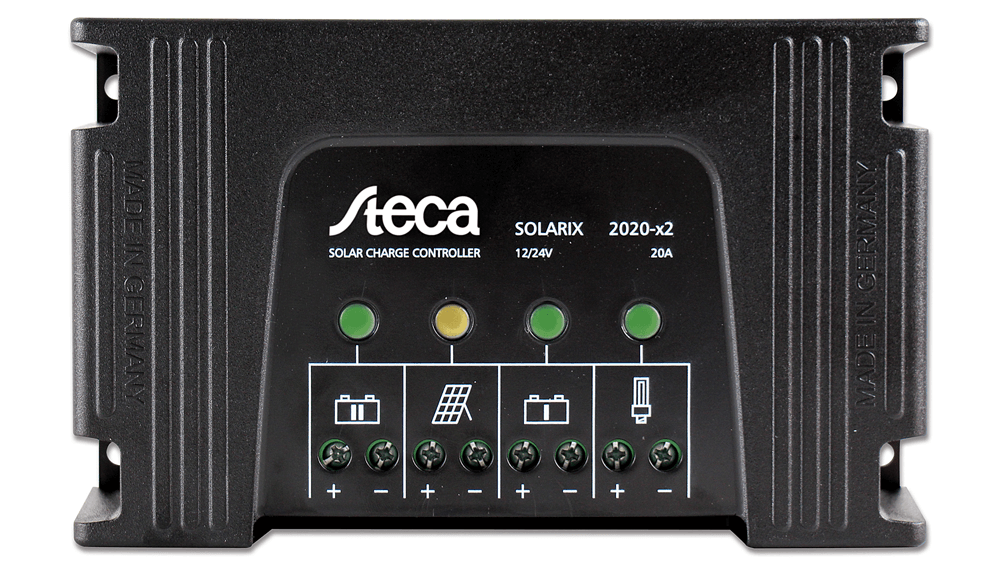

Steca Solarix 2020-x2

Steca Solarix 2020-x2

State-of-the-art dual battery PWM charge controller that is ideal for use in leisure applications such as boats and motor homes

• Solar module input suitable 36-cell solar modules.
• Both main battery and starter battery are charged simultaneously and continuously by the solar module.
• 90 percent of the available power flows into the main battery while 10 percent of the power is retained to keep the auxiliary battery fully-charged.

Charging power split can be adapted using the optional Steca PA LCD1 remote display. The charge controller is equipped with a high-power load output fed by the main battery only.

• Two different battery types can be connected
• 12 V or 24 V voltage can be combined for main and auxiliary battery
• Extremely low self consumption (22mA)
• Extensive programming and display options with optional graphical remote display
• Automatic 12/24V detection of battery voltage
• Multistage charging technology
• Current compensated load disconnection
• Automatic load reconnection
• Temperature compensation
• USB charge socket for smartphones and tablets
