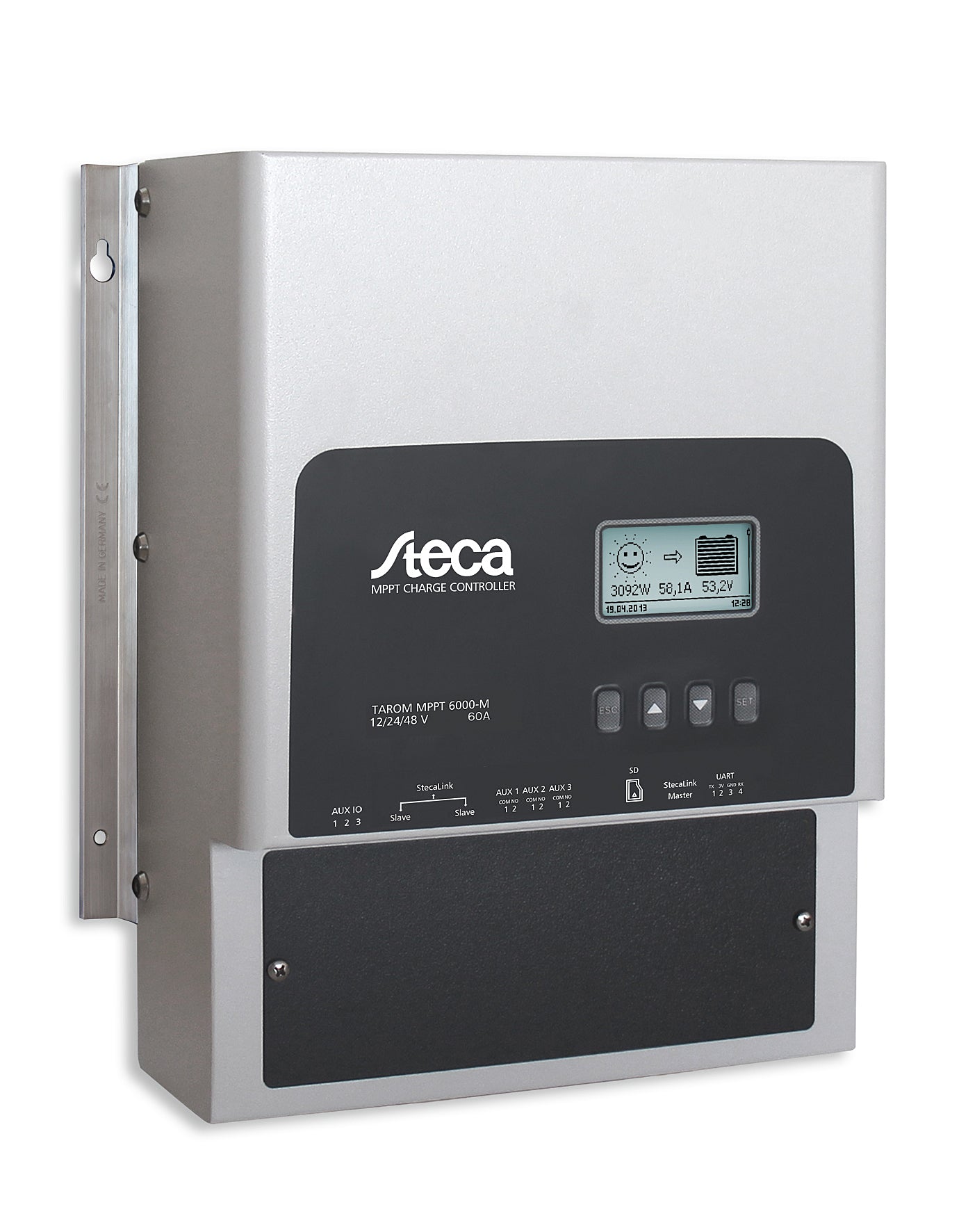

Steca Tarom MPPT
Sophisticated 60A 12/24/48V MPPT charge controllers with 180VDC maximum input voltage
- Two independent maximum power point trackers (MPP trackers)
- Two inputs (connected in parallel or used separately for two different module arrays)
- Robust metal casing
- Comprehensive data logging of energy values for up to 20 years
- MicroSD slot for data logging of all minute values (6000-M only)
- Voltage and current regulation
- Temperature compensation
- Monthly equalisation charge
- Three configurable multifunctional contacts (6000-M only)
- Adjustable cut-off voltages
- Battery type: gel/liquid lead battery (for 6000-M also Li and NiCd batteries)
- Integrated, automatic module switch
- 36 V and 60 V batteries can be charged with special settings in expert menu level
- Parallel connectable
Quick Links
Good to know
Technical Specifications
SKU | ST-TRM-MPPT6000S | ST-TRM-MPPT6000M |
---|---|---|
System Battery Voltage | 12V, 24V, 48V | 12V, 24V, 48V |
Max VOC | 200V | 200V |
MPPT Trackers | 1 | 1 |
Connection | Screw terminals | Screw terminals |
Weight (kg) | 1 | 1 |
Warranty | 5 | 5 |
Intrastat Commodity Code | 90328900 | 90328900 |
*see manufacturer's documentation for further information
