Victron EasySolar-II GX

Victron Energy Logo
From £1,179.45
From £1,179.45
Sale Sold out
Shipping calculated at checkout.

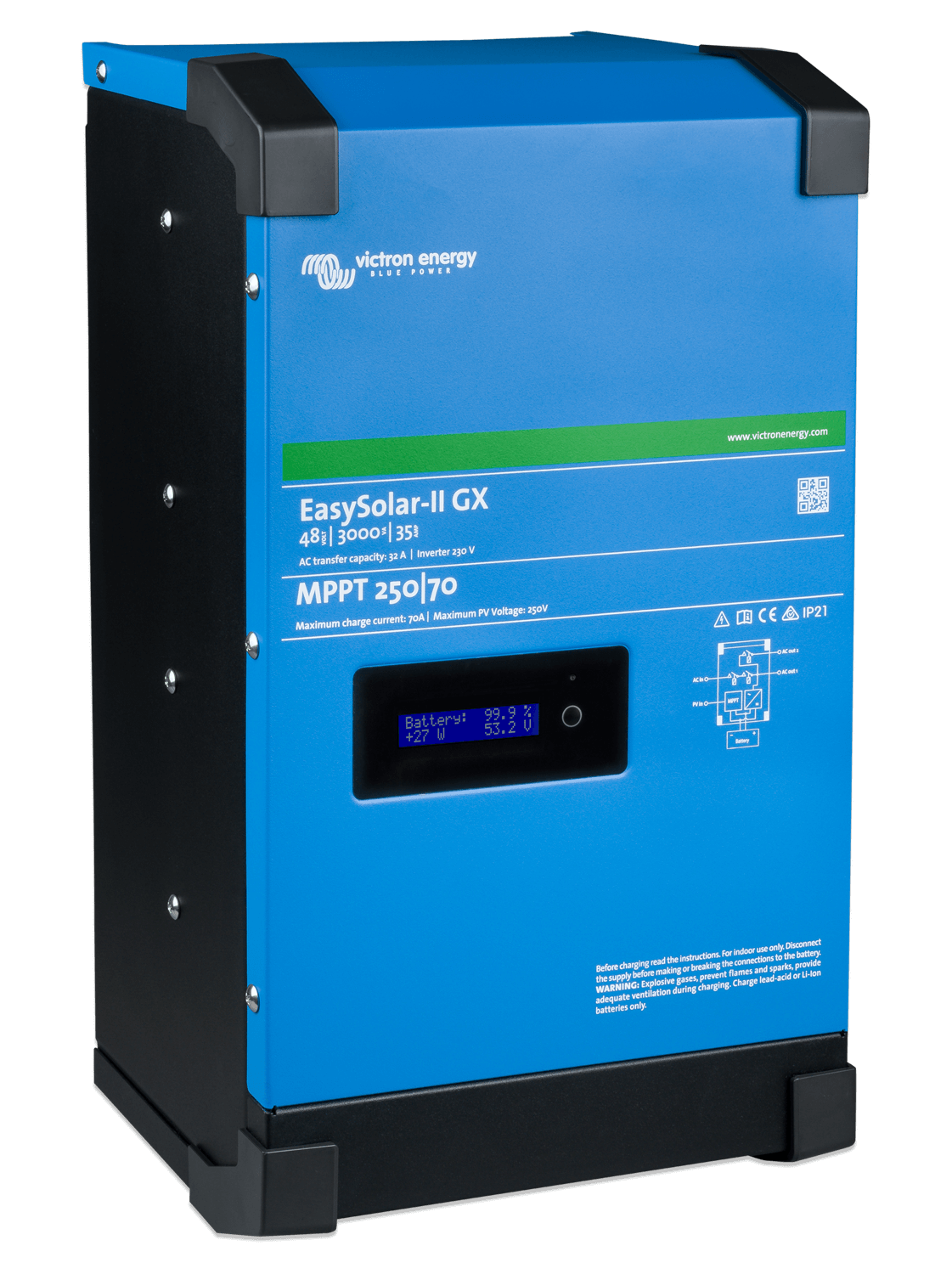

The Victron EasySolar-II GX combines an MPPT Solar Charge Controller, inverter/charger and control hub with display in one enclosure.

See full details

Retail customers
Many of the products we supply require training and experience to install, we recommend seeking the assistance of a professional to help you with your project.

Find the right installer for you

Trade customers
Please login or apply for a trade account for trade pricing, check stock and order online.

Log in / Apply for a trade account

Select model

Variant Price (exc VAT)
VES-II-24/3000/70-GX
Victron EasySolar-II 24/3000/70-32 GX interface
£1,179.45
£1,179.45
VES-II-48/3000/35-GX
Victron EasySolar-II 48/3000/35-32 MPPT250/70, GX interface
£1,179.45
£1,179.45
VES-II-48/5000/70-GX
Victron EasySolar-II 48/5000/70-50 MPPT250/100, GX interface
£1,662.27
£1,662.27
(exc VAT)
Login for trade prices

Victron EasySolar-II GX

The Victron EasySolar-II GX combines an MPPT Solar Charge Controller, inverter/charger and control hub with display in one enclosure.

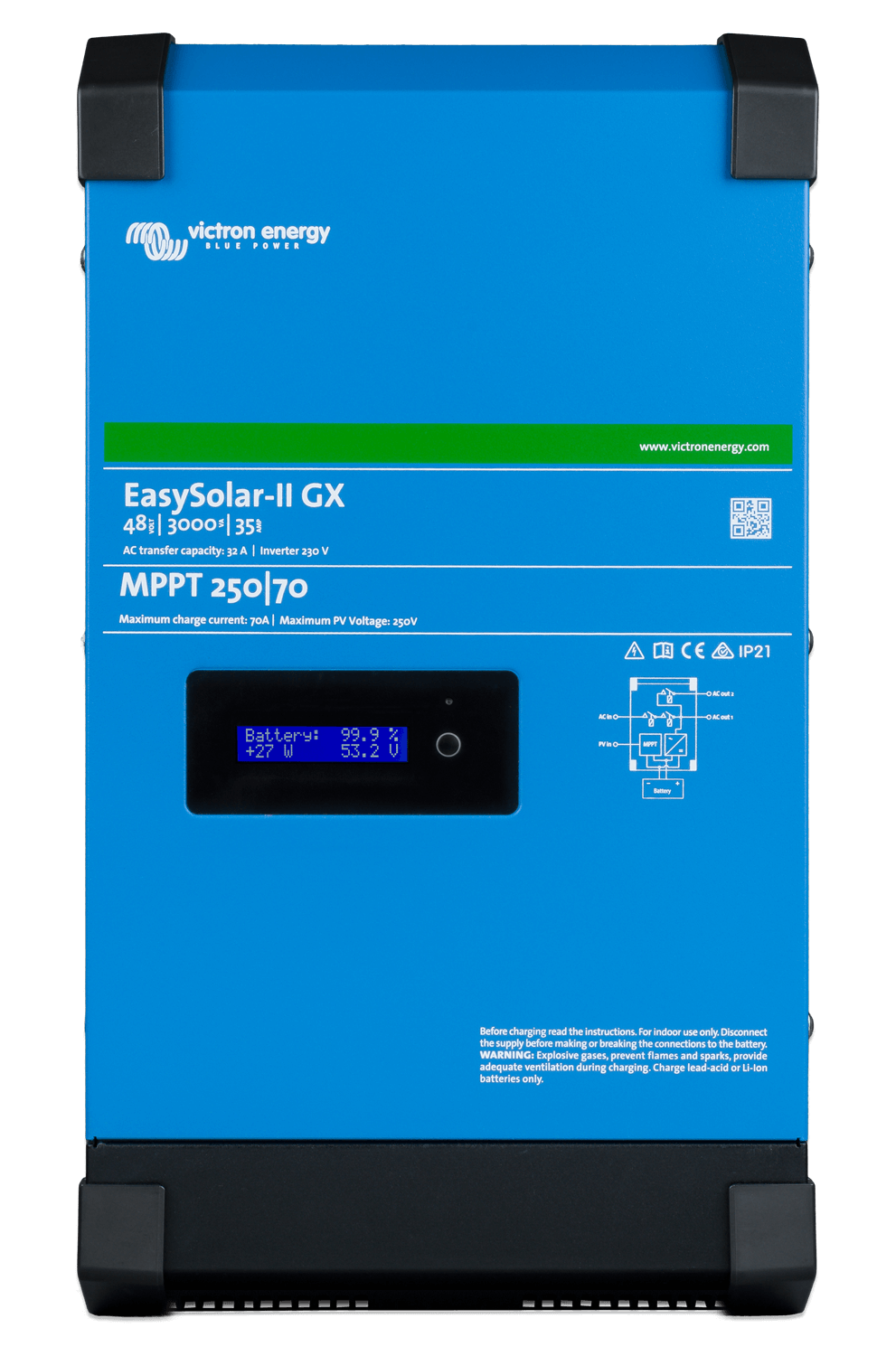

The display reads battery, inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone or other Wi-Fi enabled device. In addition, Wi-Fi can be used to set up the system and to change settings.

The DC output of the SmartSolar MPPT is parallel wired with the DC connection of the MultiPlus-II inverter/charger. The on/off mechanism of the Multiplus-II also controls the SmartSolar MPPT.

The Victron EasySolar-II GX integrates the following elements prewired together inside a single unit:

  • A Multiplus-II inverter/charger
  • A SmartSolar MPPT-Tr solar charge controller
  • A GX device with a 2x 16 character display

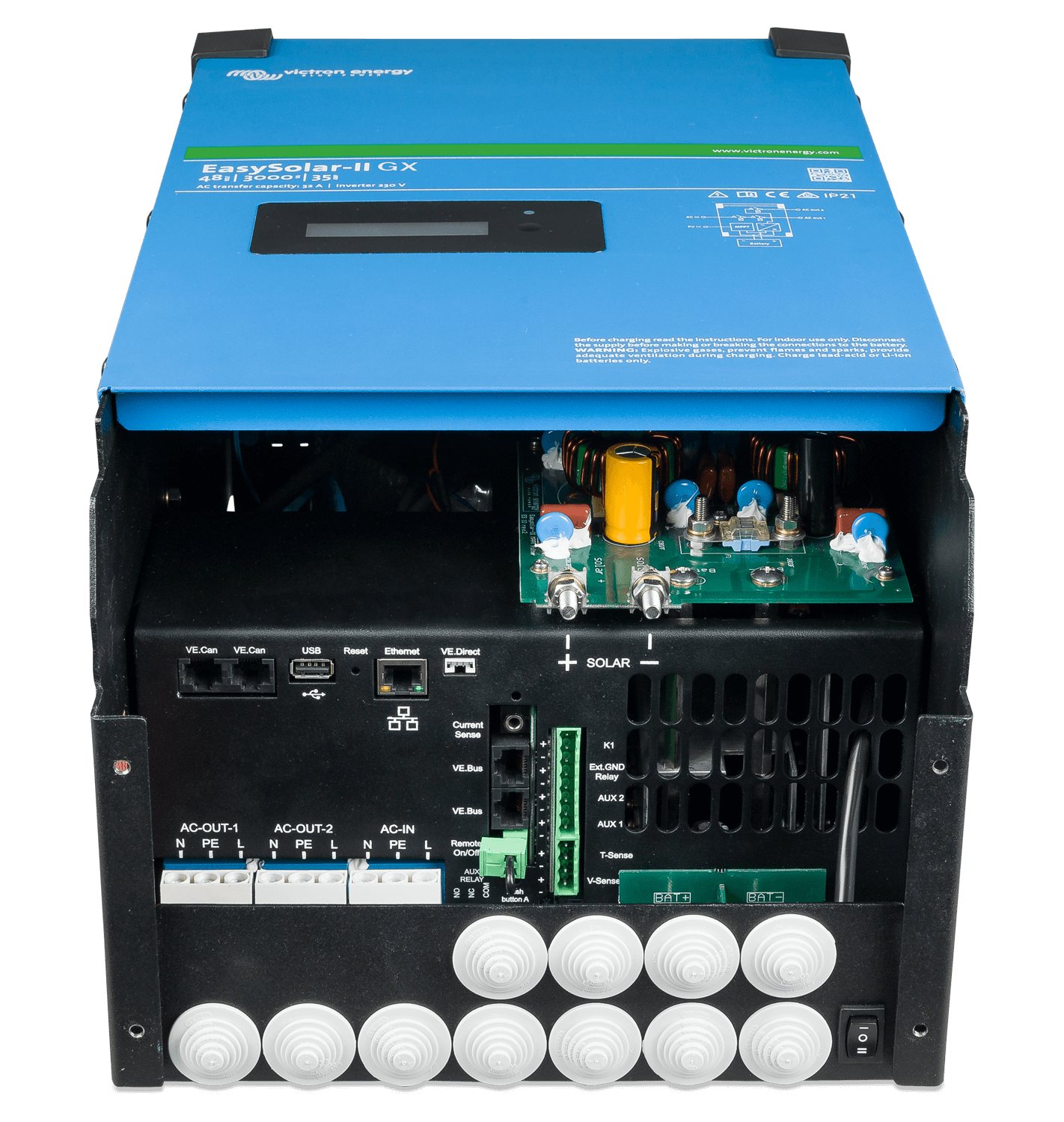

  • Connection of AC input and output is via screw terminal blocks.
  • Battery connection via two M8 studs
  • PV connection via two M6 studs

Quick Links

Technical Specifications

Downloads

Good to know

Technical Specifications

SKUVES-II-24/3000/70-GXVES-II-48/3000/35-GXVES-II-48/5000/70-GX
System Battery Voltage 24V 48V 48V
MPPT Trackers 1 1 1
Connectivity VE.Bus, VE.Direct, VE.Can, BlueTooth, WiFi, Ethernet VE.Bus, VE.Direct, VE.Can, BlueTooth, WiFi, Ethernet VE.Bus, VE.Direct, VE.Can, BlueTooth, WiFi, Ethernet
Connection [\"M6 (Solar), M8 (battery\") [\"M6 (Solar), M8 (battery\") [\"M6 (Solar), M8 (battery\")
Weight (kg) 28 28.5 38
Packaging Height 100 590 660
Packaging Width 20 350 410
Packaging Depth 100 325 350
Warranty 5 5 5
IP Rating IP21 IP21 IP21
On Grid / Off Grid Off Grid Off Grid Off Grid
Backup Compatibility Yes* Yes* Yes*
Lithium Compatibility Yes* Yes* Yes*
Intrastat Commodity Code 85044085 85044085 85044085

Downloads / Documents

*see manufacturer's documentation for further information
