Victron SmartSolar Charge Controller MPPT 150/60 up to 250/60

Victron Energy Logo
From £280.62
From £280.62
Sale Sold out
Shipping calculated at checkout.

These Victron SmartSolar Charge Controllers support a PV input with a maximum open circuit voltage of 150V or 250V and have a maximum output of up to 70A. They work with and will automatically recognise 12V, 24V and 48V battery systems (36V also possible via software configuration).

See full details

Retail customers
Many of the products we supply require training and experience to install, we recommend seeking the assistance of a professional to help you with your project.

Find the right installer for you

Trade customers
Please login or apply for a trade account for trade pricing, check stock and order online.

Log in / Apply for a trade account

Select model

Variant Price (exc VAT)

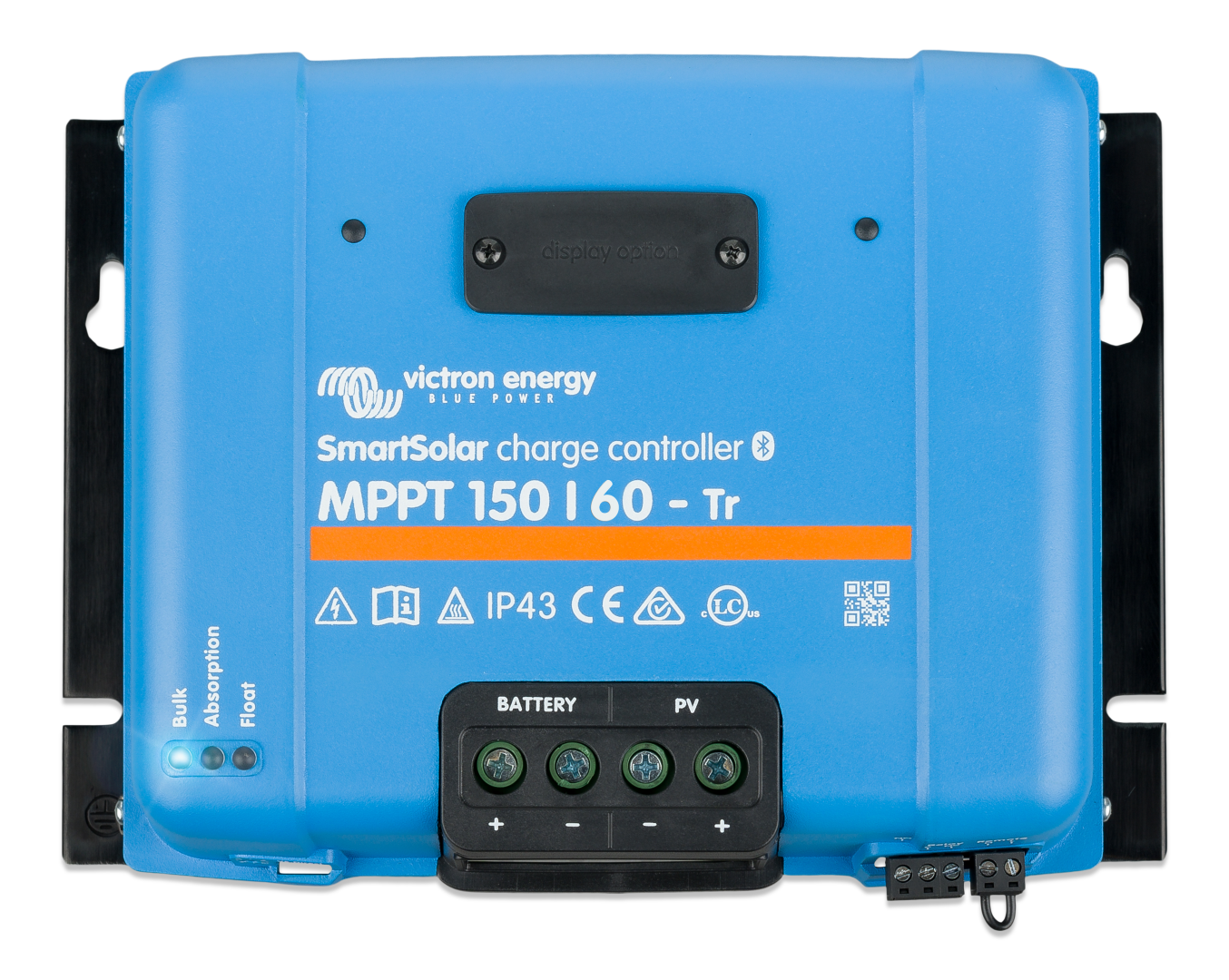

VSS-MPPT150/60-TR
SmartSolar MPPT 60A ch.cont.150V input 12/24/36/48V out
£280.62
£280.62

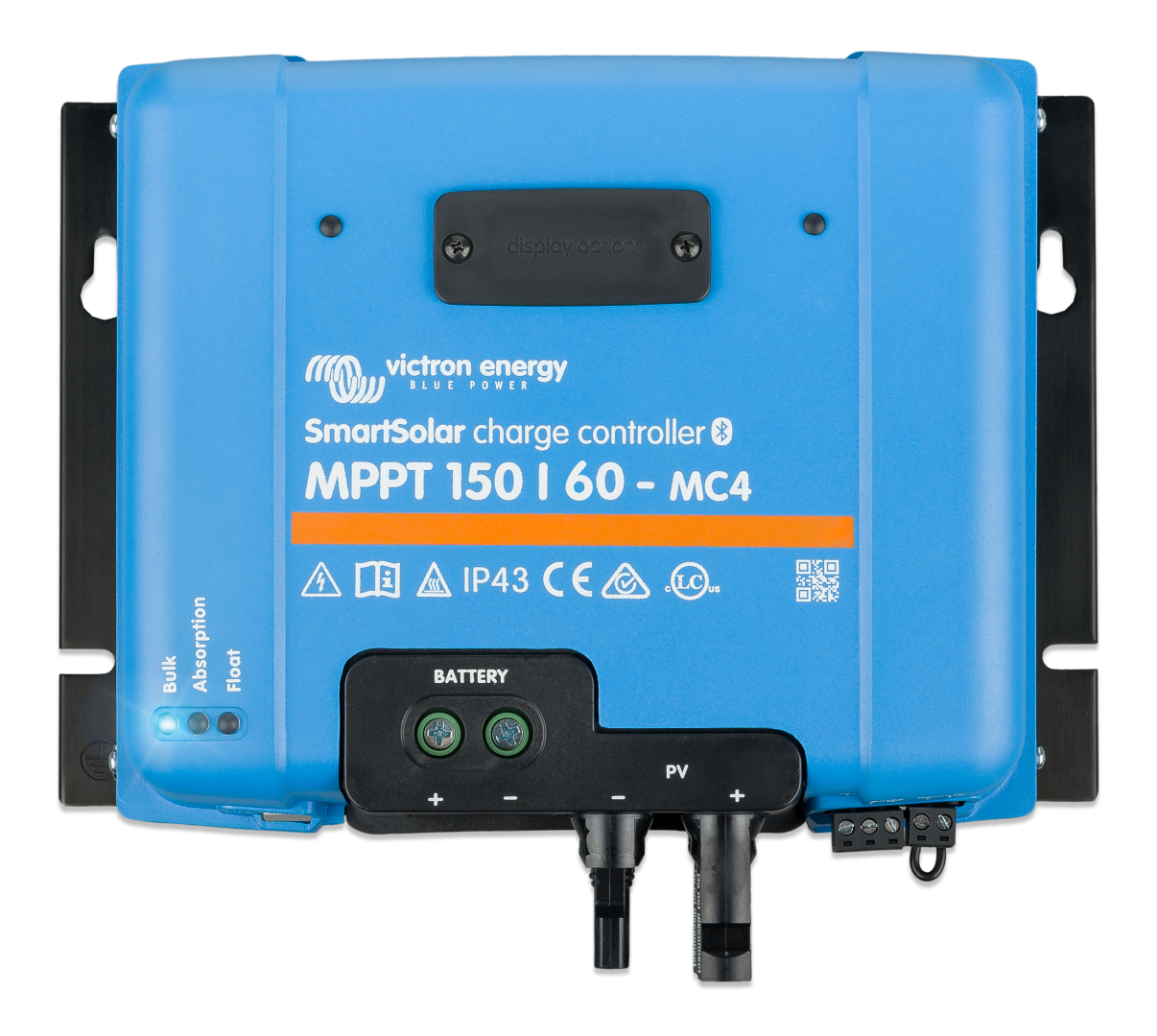

VSS-MPPT150/60-MC4
SmartSolar MPPT 60A ch.cont.150V input 12/24/36/48V out MC4
£280.62
£280.62
VSS-MPPT250/60-TR
SmartSolar MPPT 60A ch.cont.250V input 12/24/36/48V out
£331.93
£331.93
VSS-MPPT250/60-MC4
SmartSolar MPPT 60A ch.cont.250V input 12/24/36/48V out MC4
£331.93
£331.93
(exc VAT)
Login for trade prices

Victron SmartSolar Charge Controller MPPT 150/60 up to 250/60

These Victron SmartSolar Charge Controllers support a PV input with a maximum open circuit voltage of 150V or 250V and have a maximum output of up to 70A. They work with and will automatically recognise 12V, 24V and 48V battery systems (36V also possible via software configuration).

  • Internal Bluetooth for wireless communication with smartphones or tablets.
  • Ultra-fast Maximum Power Point Tracking (MPPT) for maximum energy harvest.
  • Advanced Maximum Power Point Detection in case of partial shading conditions.
  • VE.Direct communication port
  • Available with 35 mm² screw terminals (TR) or 3 sets of MC4 connectors (MC4)
  • Up to 98% efficient
  • 8 preprogrammed algorithms selectable with a rotary switch
  • Electronic protection:
    • Battery reverse polarity (fuse, not user accessible)
    • PV reverse polarity / Output short circuit / Over temperature
  • Internal temperature sensor, compensates absorption and float charge voltages
  • Remote on/off (2 pole connector)
  • Programmable relay - DPST AC rating: 240VAC / 4A DC rating: 4A up to 35VDC, 1A up to 60VDC
  • Optional display - plugs into front of controller for VSS-MPPT150/60 to VSS-MPPT250/60 units.
  • 5 years warranty

Quick Links

Technical Specifications

Downloads

Good to know

Technical Specifications

SKUVSS-MPPT150/60-TRVSS-MPPT150/60-MC4VSS-MPPT250/60-TRVSS-MPPT250/60-MC4
System Battery Voltage 12V, 24V, 36V, 48V 12V, 24V, 36V, 48V 12V, 24V, 36V, 48V 12V, 24V, 36V, 48V
Max VOC 150V 150V 250V 250V
MPPT Trackers 1 1 1 1
Connectivity Bluetooth, VE.Direct Bluetooth, VE.Direct Bluetooth, VE.Direct Bluetooth, VE.Direct
Connection Screw terminals MC4 Screw terminals MC4
Height 185 215 185 215
Width 250 250 250 250
Depth 95 95 95 95
Weight (kg) 4 4 4.1 4.1
Packaging Height 270 270 270 270
Packaging Width 250 250 250 250
Packaging Depth 150 150 150 150
Warranty 5 5 5 5
IP Rating IP43 (electronic components), IP22 (connection area) IP43 (electronic components), IP22 (connection area) IP43 (electronic components), IP22 (connection area) IP43 (electronic components), IP22 (connection area)
On Grid / Off Grid Off Grid Off Grid Off Grid Off Grid
Lithium Compatibility Yes* Yes* Yes* Yes*
Intrastat Commodity Code 85044055 85044055 85044055 85044055

Downloads / Documents

Related Products

*see manufacturer's documentation for further information
