BYD Battery-Box HVE

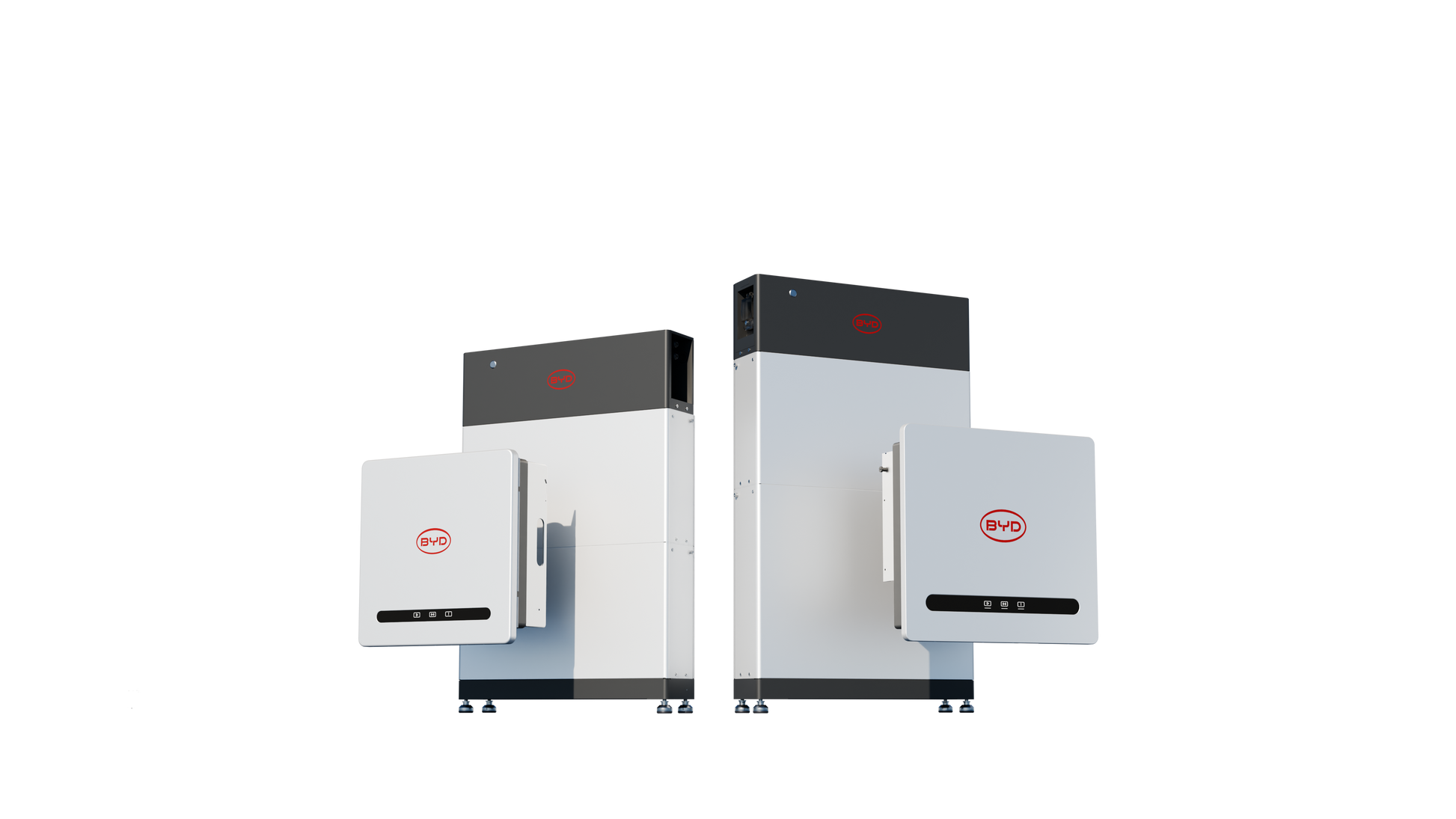

The BYD Battery-Box HVE is a modular high voltage lithium iron phosphate (LFP) battery for use with BYD's Power Box range of inverters.
Select model
| Variant | Price (exc tax) |
|---|---|
|
BYD-HVE-A-MODULE

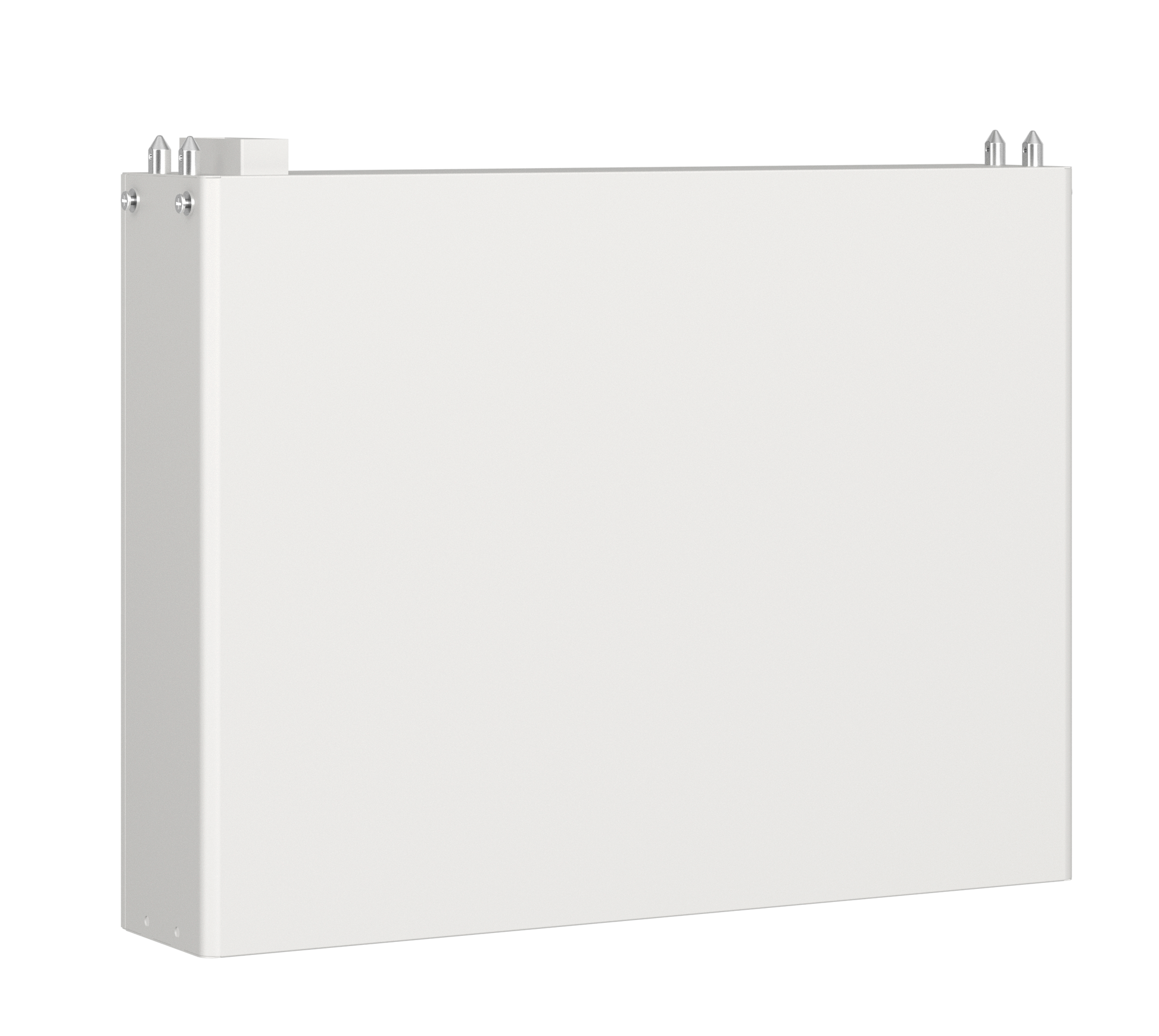

BYD Battery Box HVE Module 6.4kWh |
Regular price
£1,767.32
Regular price
Unit price
per
|
|
BYD-HVE-B-MODULE

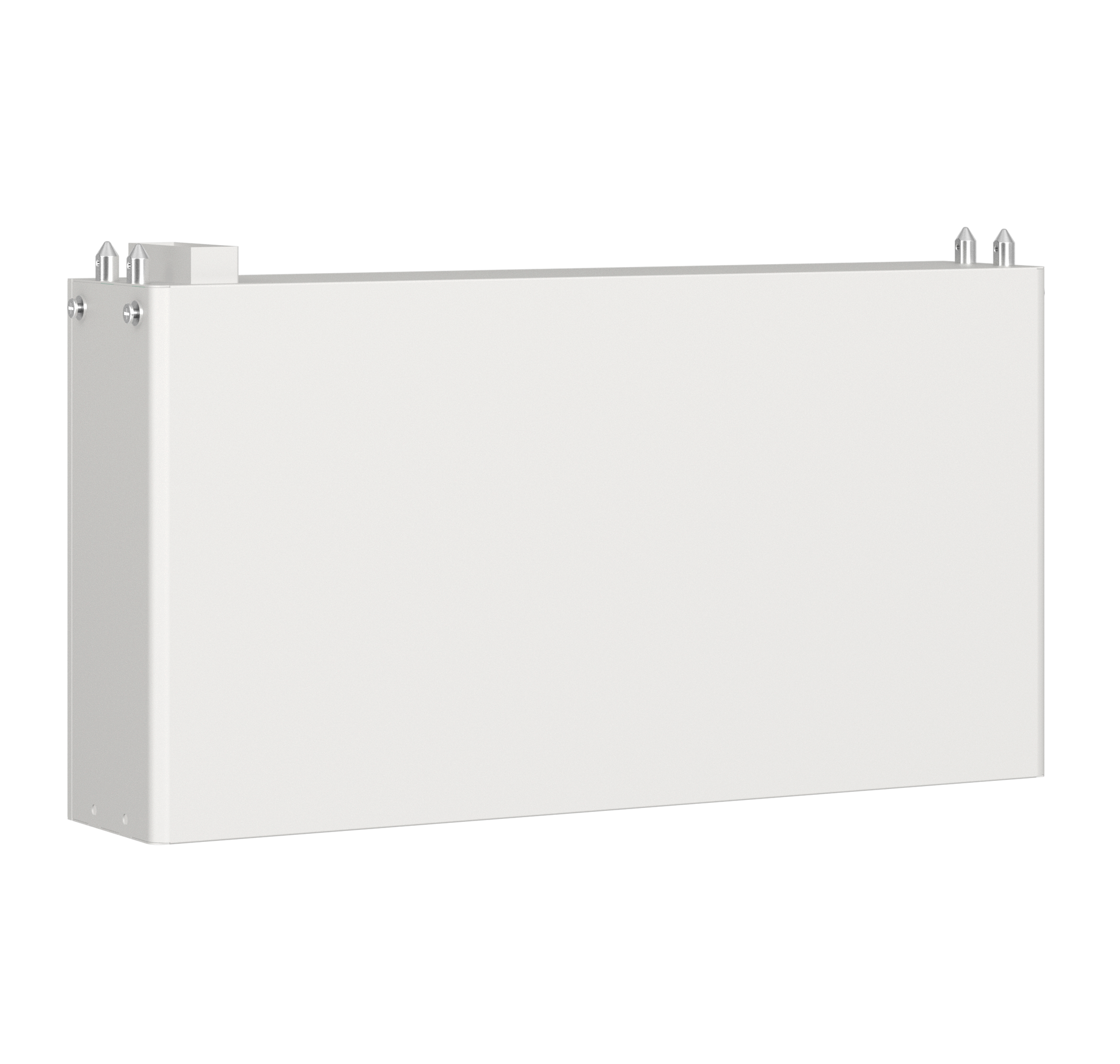

BYD Battery Box HVE Module 4.3kWh |
Regular price
£1,210.94
Regular price
Unit price
per
|
|
BYD-HVE-BCU

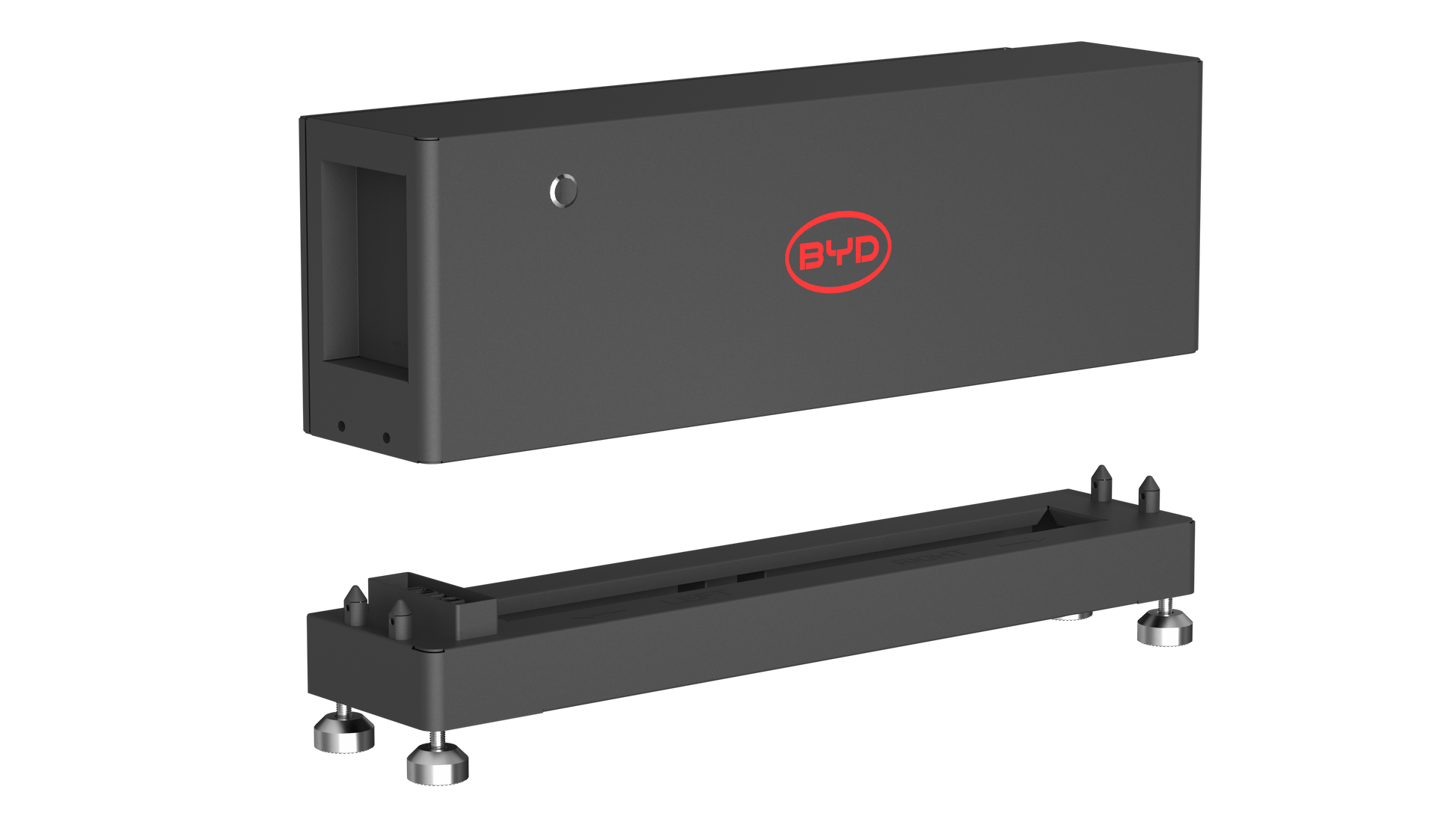

BYD BCU and Base for HVE |
Regular price
£392.74
Regular price
Unit price
per
|
|
BYD-HVE-BRACKET

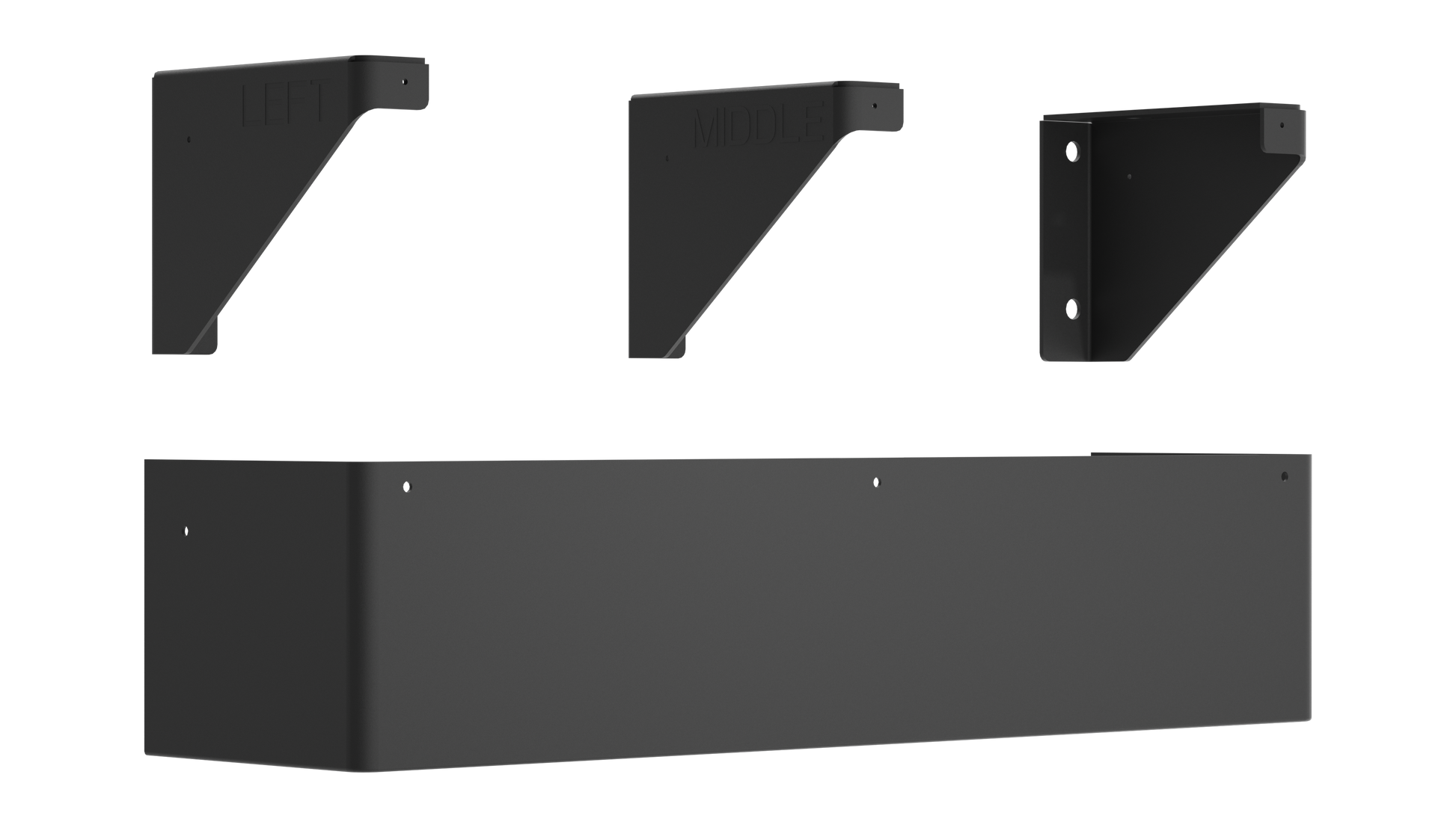

BYD Wall Mount Bracket for HVE |
Regular price
£51.36
Regular price
Unit price
per
|

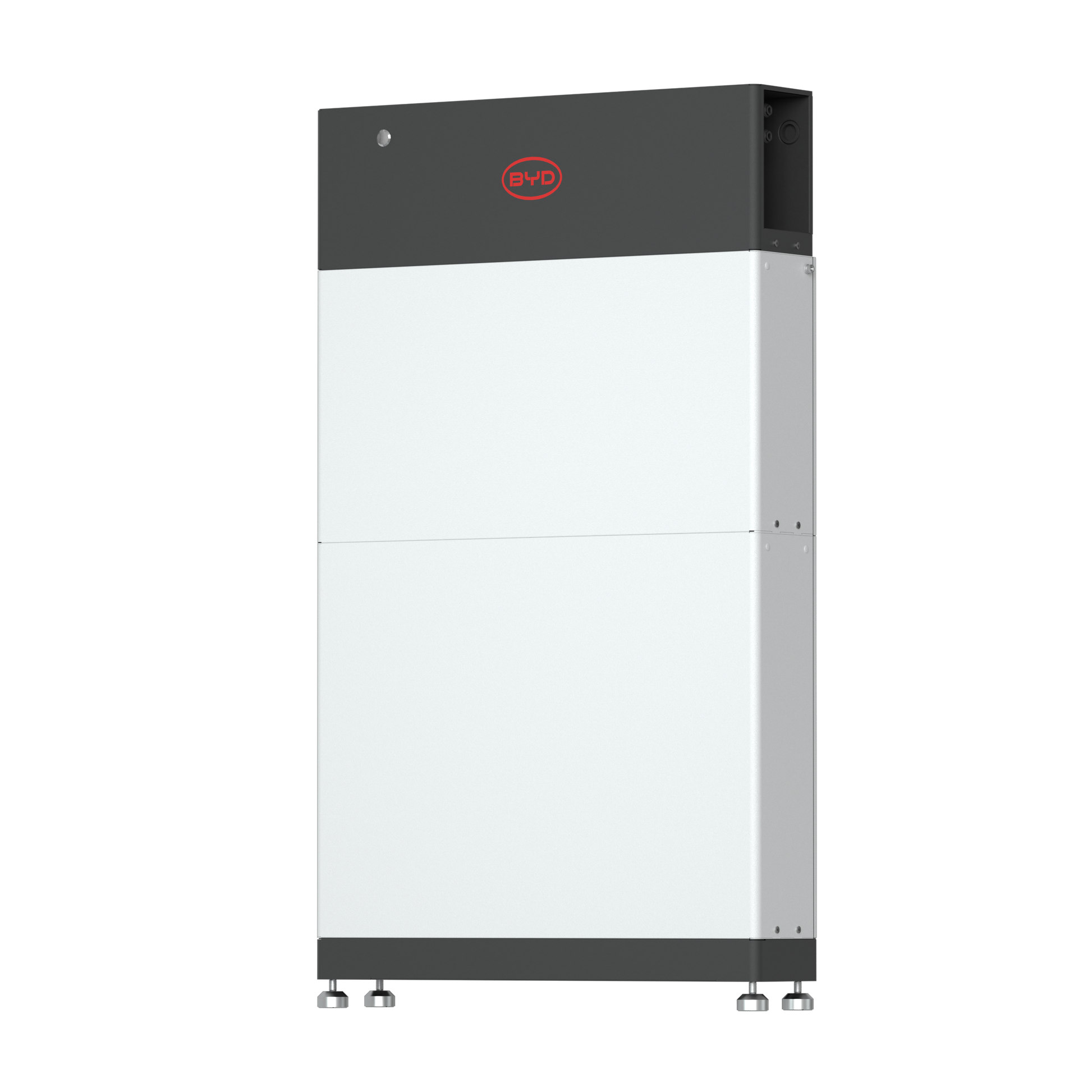

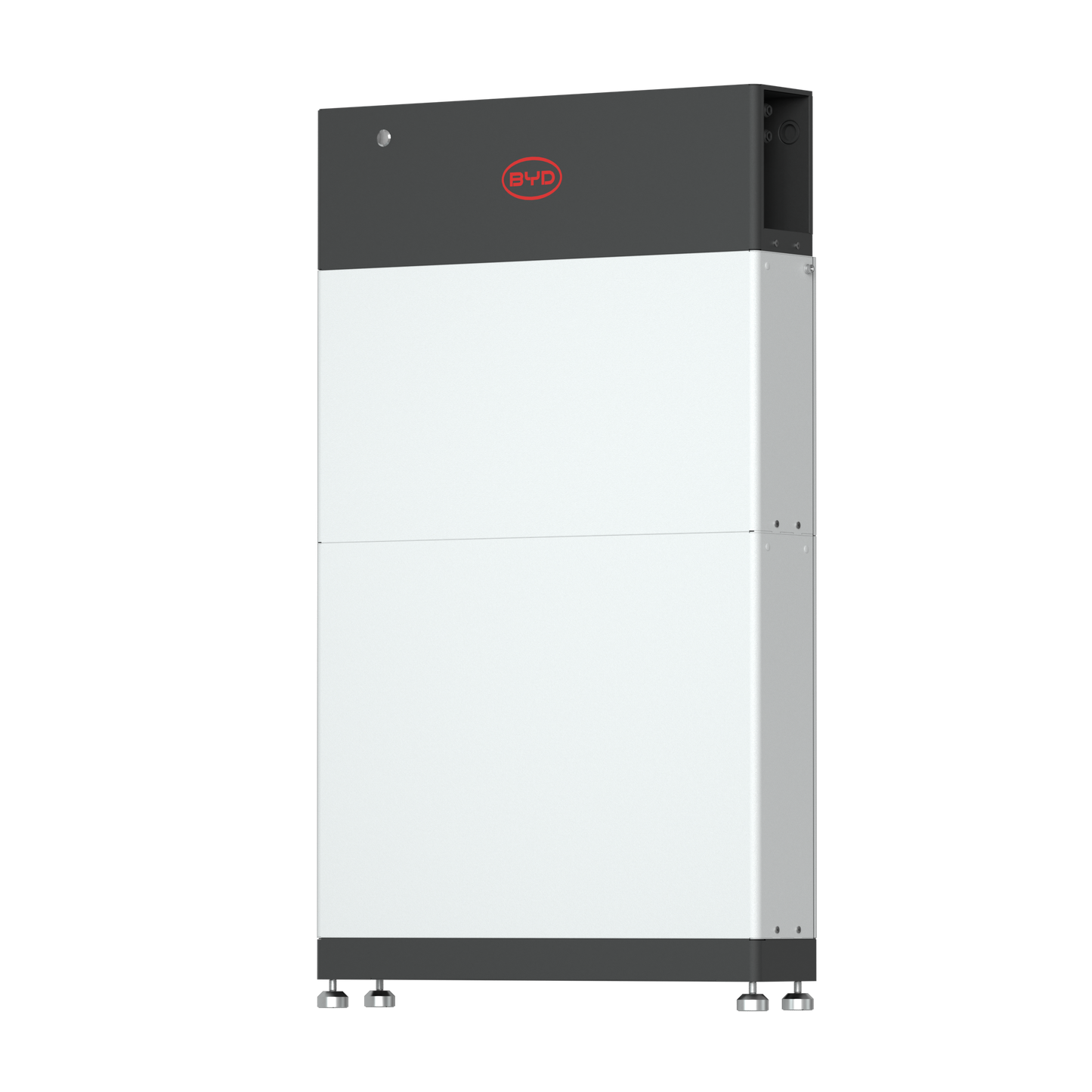

BYD Battery-Box HVE
The BYD Battery-Box HVE is a modular high voltage lithium iron phosphate (LFP) battery for use with BYD's Power Box range of inverters.
It features two different capacity modules that can be flexibly combined. Module A has a usable capacity of 6.43 kWh, while Module B has a usable capacity of 4.29 kWh. A single system can be composed of up to four modules , and up to three systems can be connected in parallel, achieving a maximum capacity of 70.74 kWh.
- Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life Cycle, and Power
- One of the thinnest batteries in the world with a thickness of only 140mm
- Easy installation thanks to patented internal plug connection and automatic configuration
- Wall and floor mounting options and an IP65 rating gives maximum installation flexibility
- Two Distinct Modules to Cover the Complete Range of System Sizes
- 15 Year limited warranty
Good to know
Technical Specifications
| SKU | BYD-HVE-A-MODULE | BYD-HVE-B-MODULE | BYD-HVE-BCU | BYD-HVE-BRACKET |
|---|---|---|---|---|
| System Battery Voltage | HV | HV | - | - |
| Nominal Storage Capacity | 6.4 kWh | 4.3 kWh | - | - |
| Connection | Tooless | Tooless | - | - |
| Height | 233 | 233 | - | - |
| Width | 585 | 585 | - | - |
| Depth | 298 | 298 | - | - |
| Weight (kg) | 38 | 38 | - | 9.7 |
| Full Pallet Quantity | 15 | 15 | - | 4 |
| Warranty | 15 | 15 | 15 | - |
| IP Rating | IP65 | IP65 | IP65 | - |
| Backup Compatibility | Yes* | Yes* | - | - |
| Intrastat Commodity Code | 85076000 | 85076000 | 85363090 | 85371090 |
Related Products
BYD Power-Box SH3/3.7/4.6/5/6K
BYD's single-phase high-voltage hybrid inverter for use with the Battery-Box HVE storage system. The inverters feature dual MPPT tracking, flexible backup and up to 200% PV oversizing.
BYD Power-Box TH5/6/8/10/12/15K
BYD's three-phase high-voltage hybrid inverter for use with the Battery-Box HVE storage system. These inverters feature dual MPPT tracking, flexible backup and up to 150% PV oversizing.
*see manufacturer's documentation for further information
