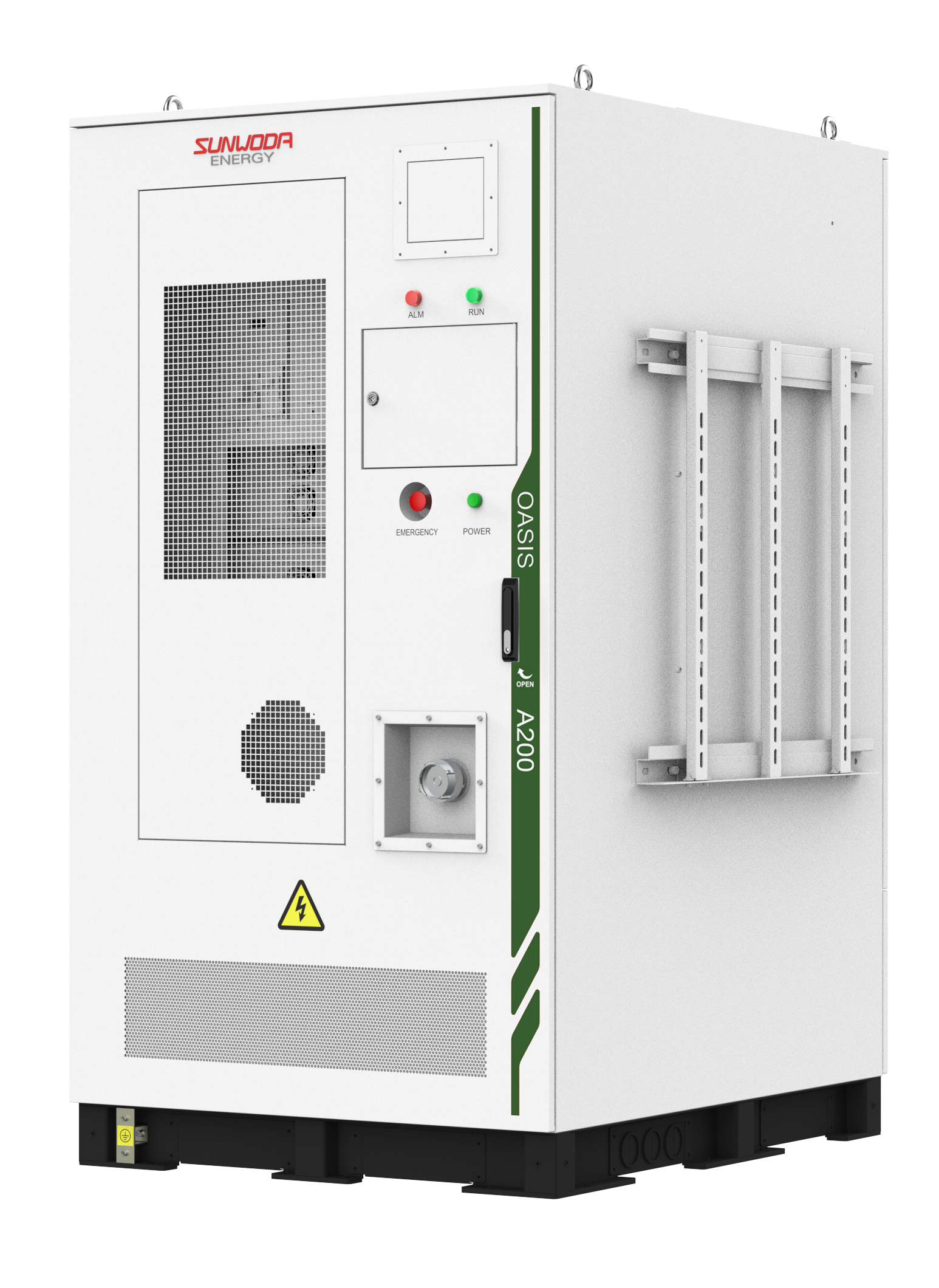

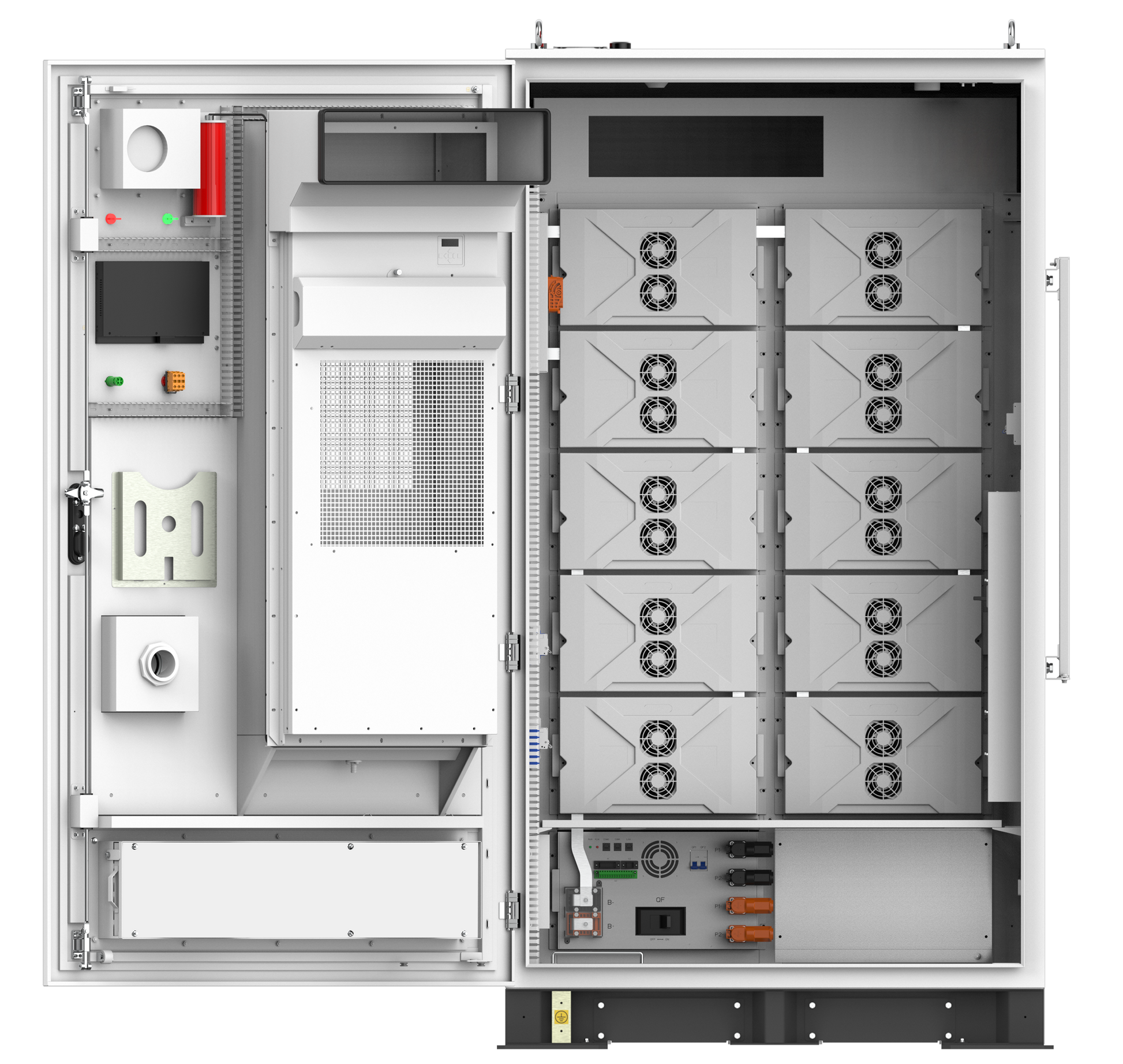

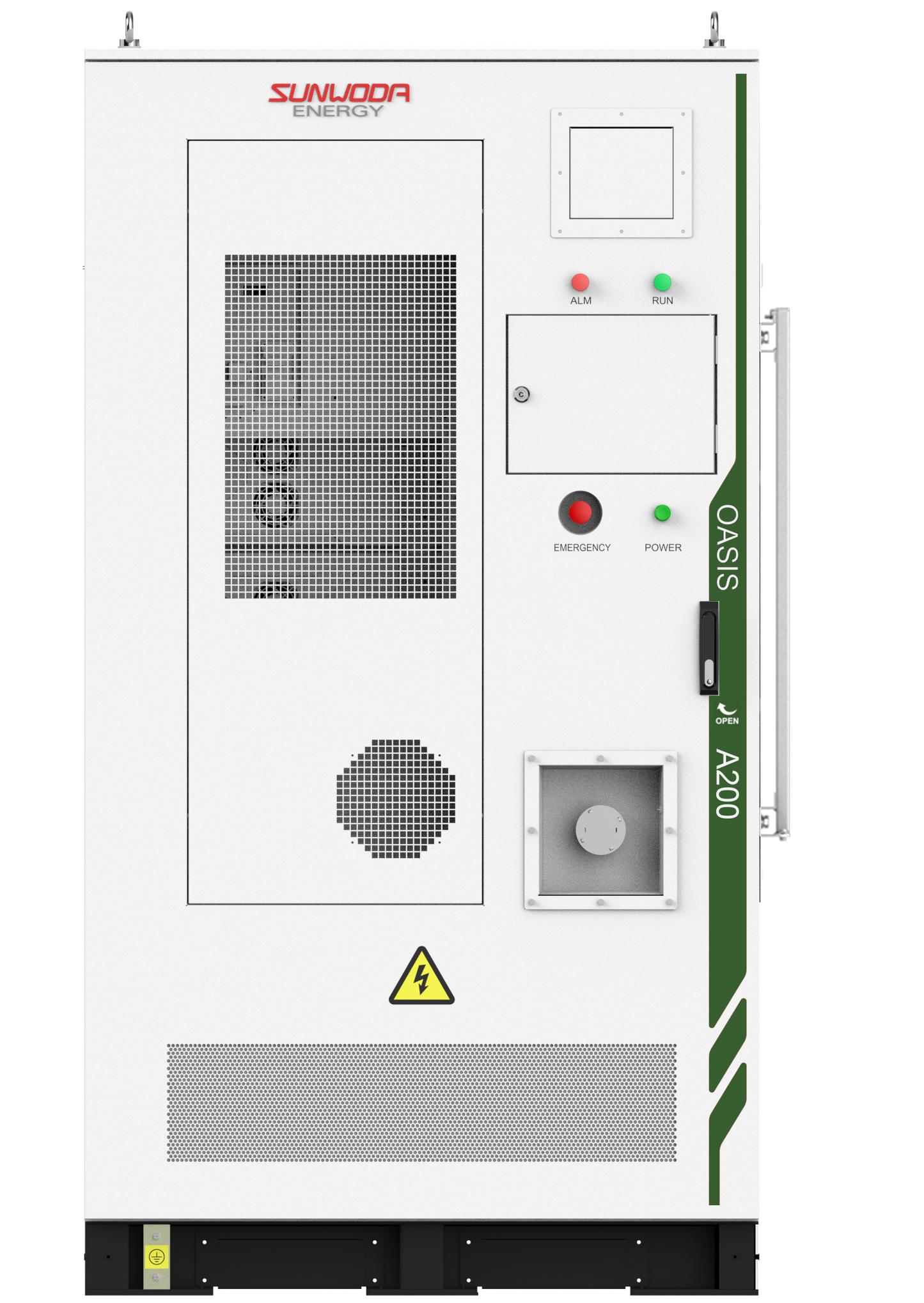

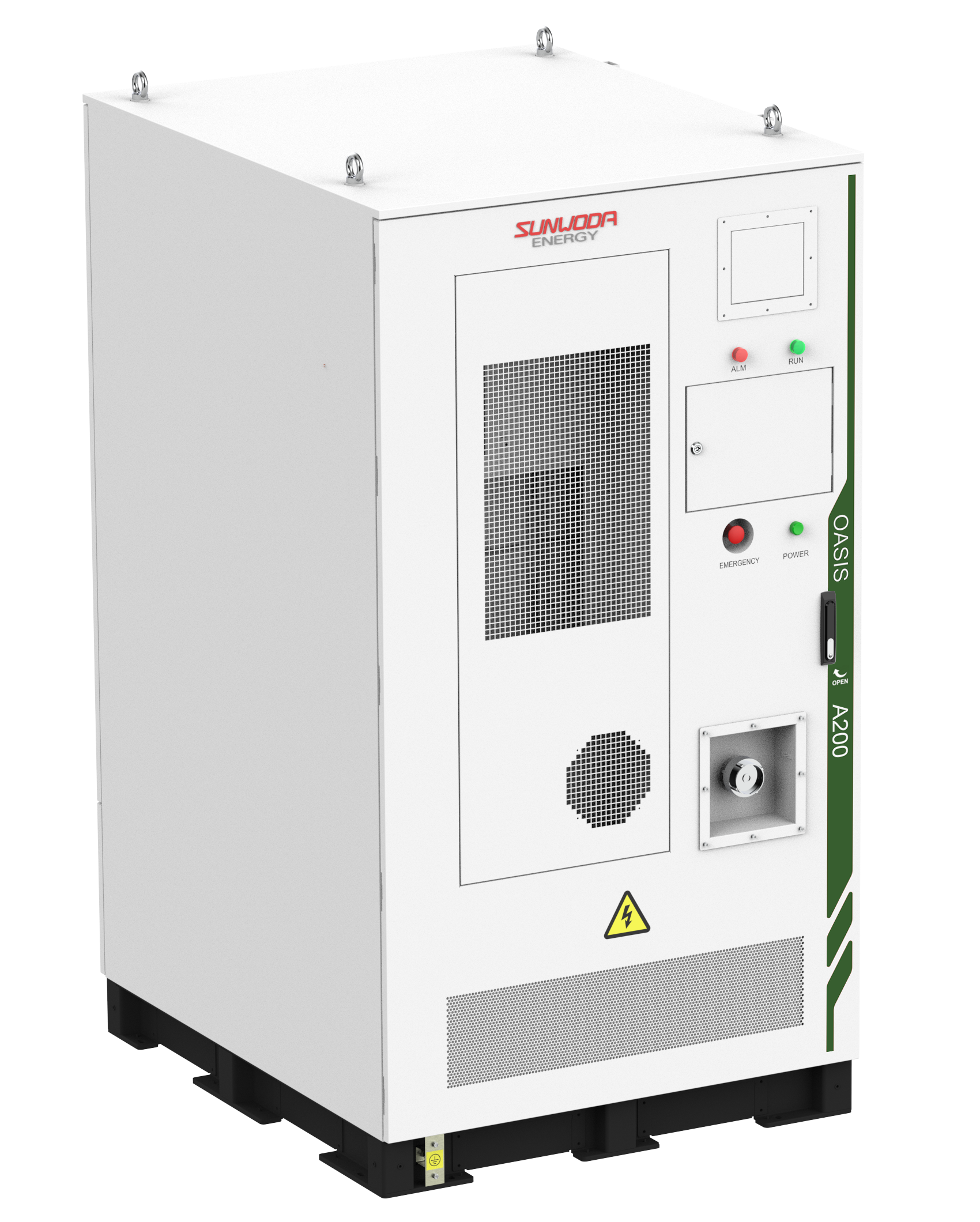

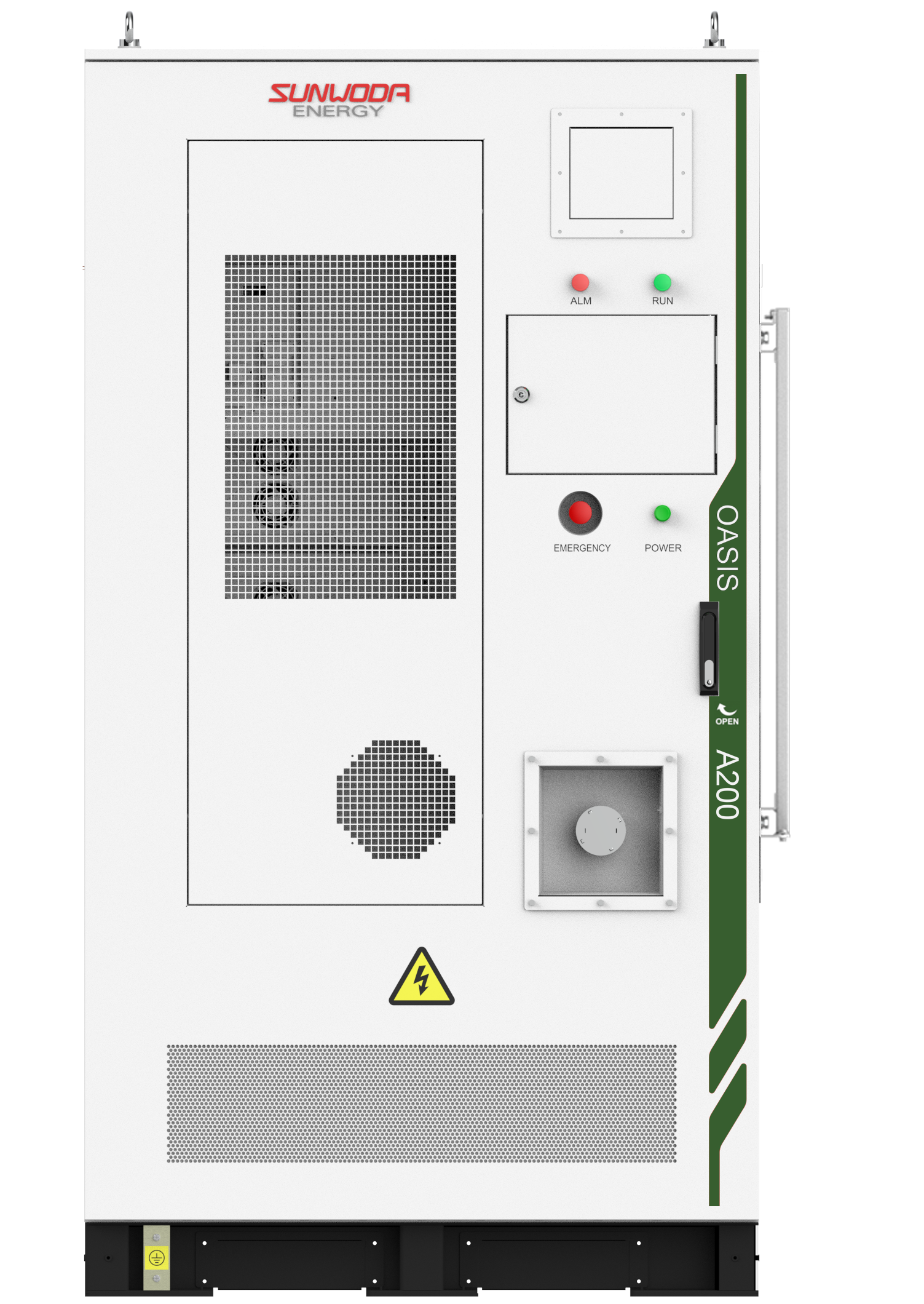

Sunwoda OASIS A200
The A200 system combines battery storage and system control into a compact integrated platform, designed to simplify installation while delivering reliable energy storage performance. It ensures uninterrupted backup for critical loads serving as a reliable alternative to traditional UPS systems. It also supports micro-grid applications in remote or off-grid areas and features an intelligent LCU with cloud platform capabilities for real-time monitoring, remote scheduling, and efficient energy management.
Select model
| Variant | Price (exc tax) |
|---|---|
|
SWD-CIESS-120
Sunwoda OASIS A200, 120kWh, 314Ah, 1P20S*10, 336~432Vdc, IP55 outdoor cabinet, air conditioning cooling |
Regular price
£23,952.64
Regular price
Unit price
per
|
|
SWD-CIESS-160
Sunwoda OASIS A200, 160kWh, 314Ah, 1P20S*10, 448~576Vdc, IP55 outdoor cabinet, air conditioning cooling |
Regular price
£29,457.19
Regular price
Unit price
per
|
|
SWD-CIESS-200
Sunwoda OASIS A200, 200kWh, 314Ah, 1P20S*10, 560~720Vdc, IP55 outdoor cabinet, air conditioning cooling |
Regular price
£34,961.73
Regular price
Unit price
per
|
|
SWD-CIESS-A-200
Sunwoda OASIS A200 All-in-One, 125kW/200kWh, 314Ah, 1P20S*10, 400Vac, IP55 outdoor cabinet, air conditioning cooling |
Regular price
£37,828.69
Regular price
Unit price
per
|
Sunwoda OASIS A200
The A200 system combines battery storage and system control into a compact integrated platform, designed to simplify installation while delivering reliable energy storage performance. It ensures uninterrupted backup for critical loads serving as a reliable alternative to traditional UPS systems. It also supports micro-grid applications in remote or off-grid areas and features an intelligent LCU with cloud platform capabilities for real-time monitoring, remote scheduling, and efficient energy management.
High Performance BMS: multi-level architecture using neural networks for intelligent SOC and SOH tracking.
Multi-Protection Design: multi-tier protection with cluster, system, and partition safety isolation.
Flexible Installation: modular, plug and play installation with seamless parallel expansion.
Intelligent LCU: Real-time monitoring, cloud set dimensions, multi-platform display.

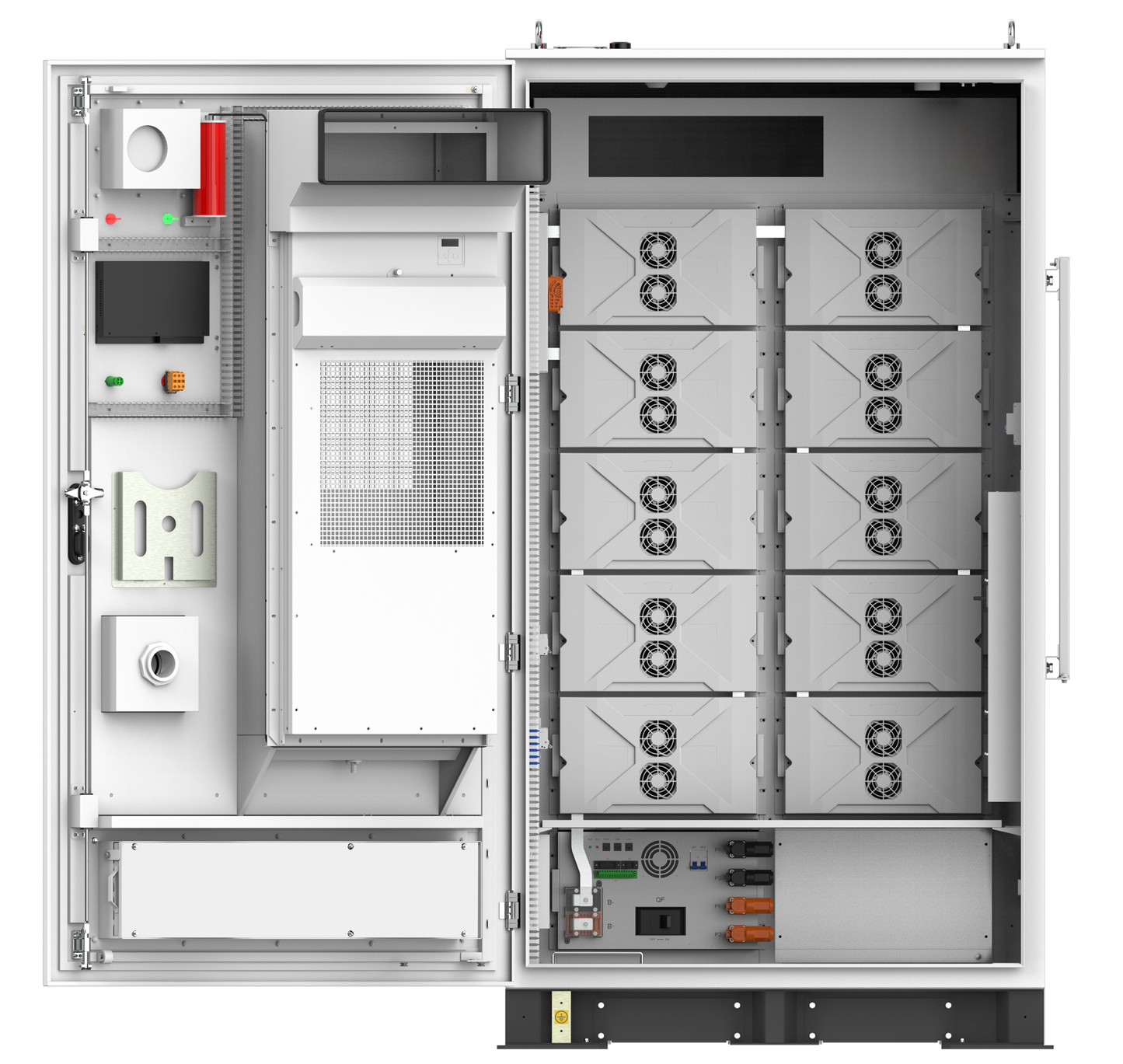

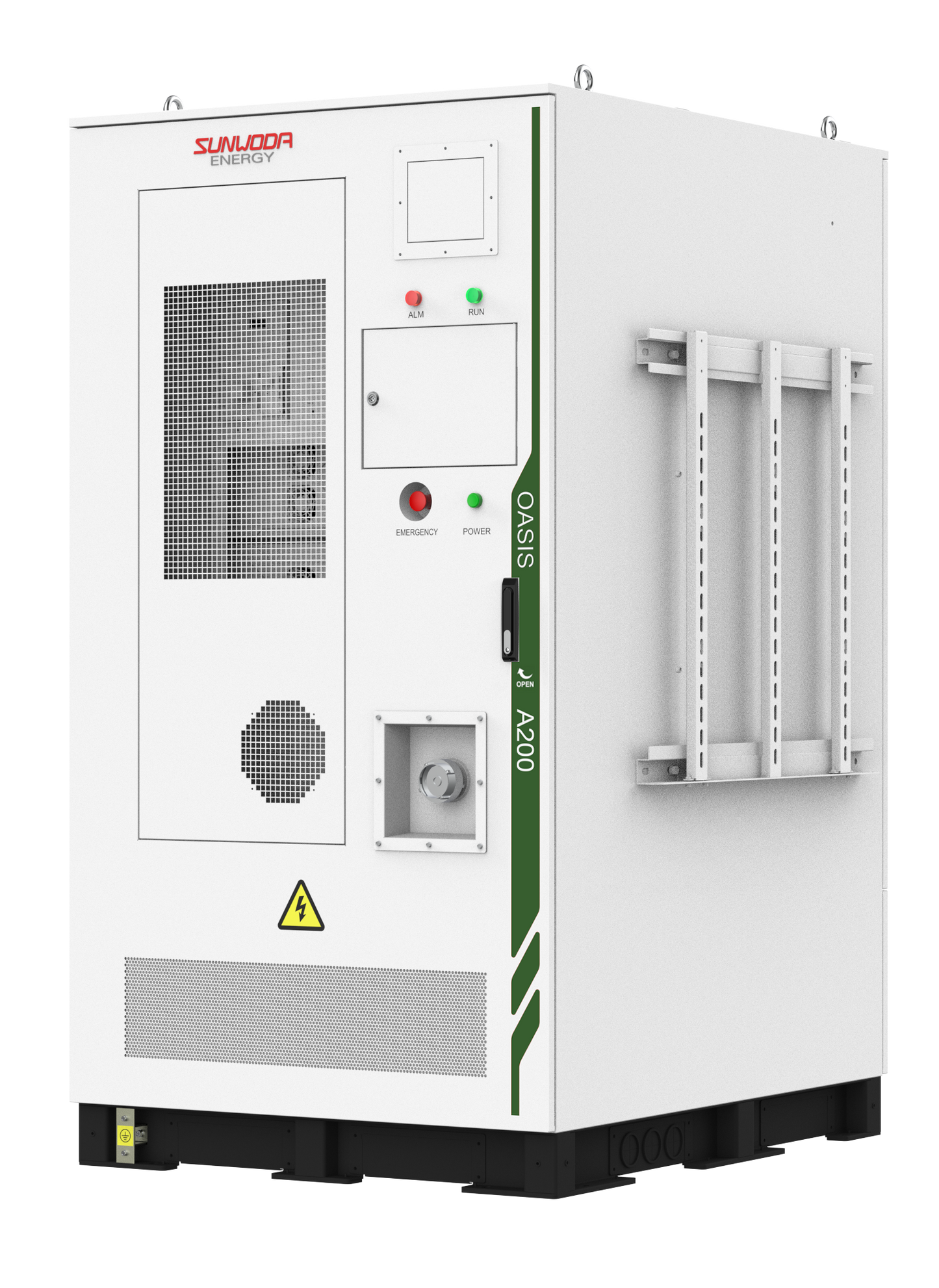

A200

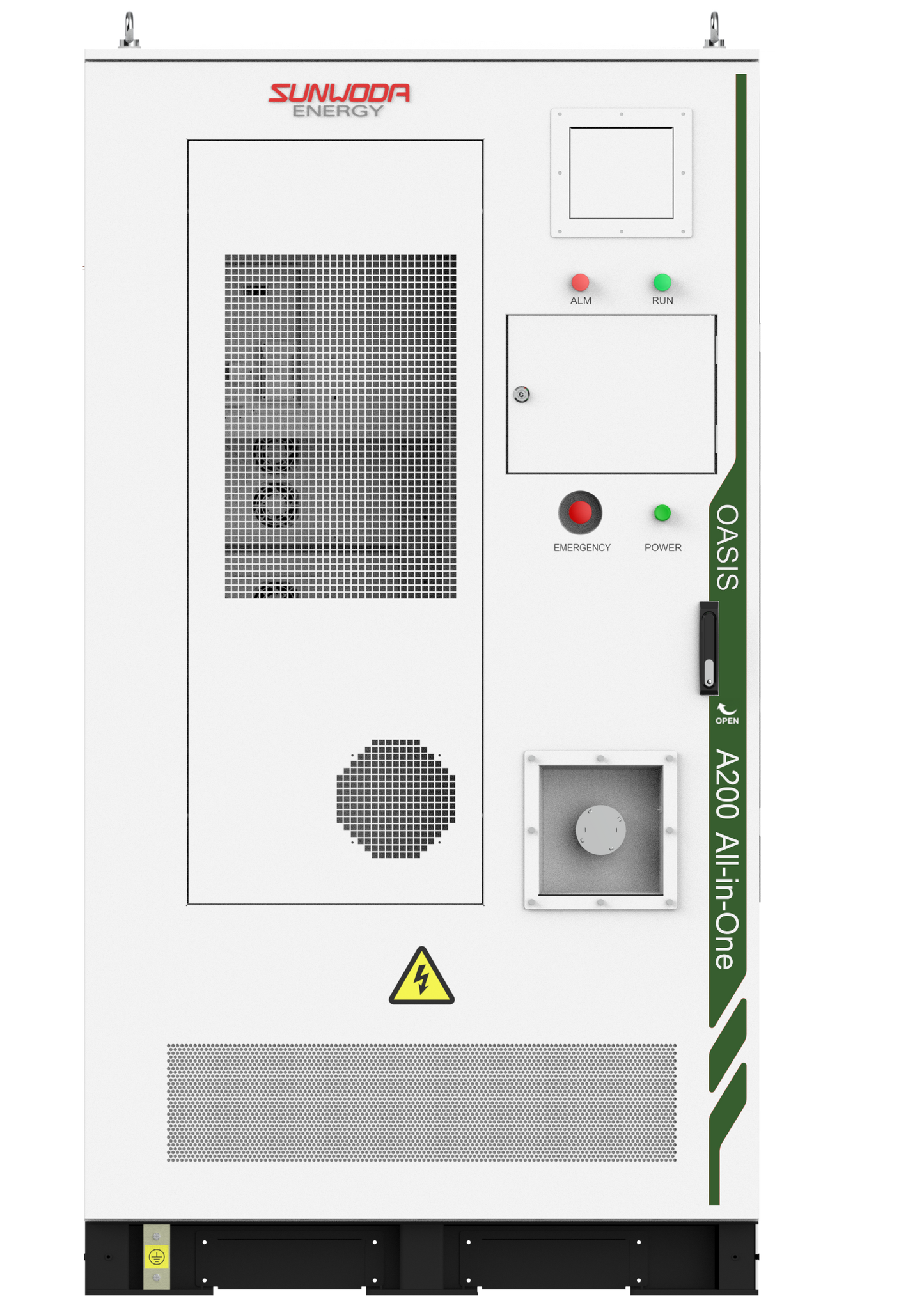

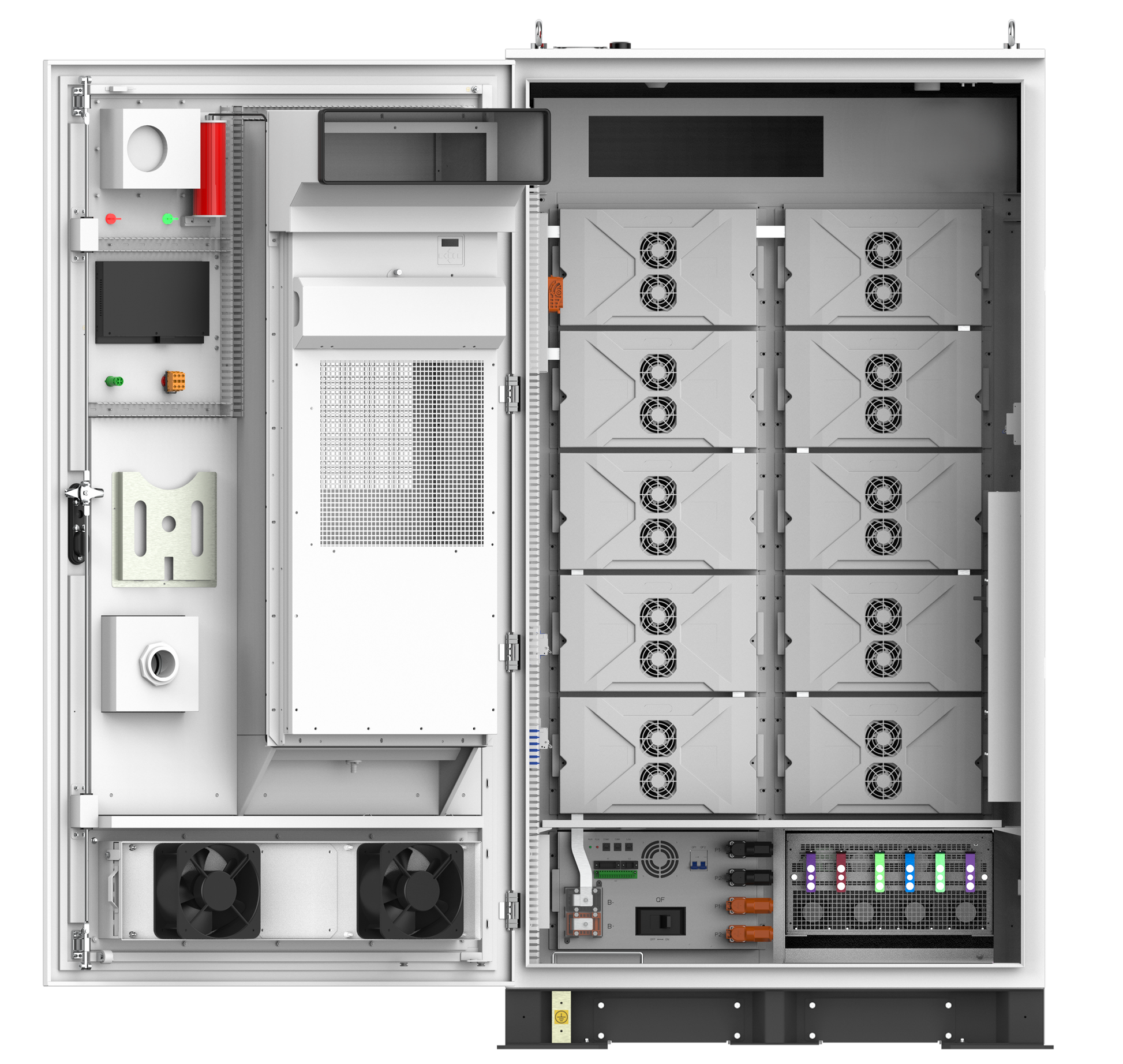

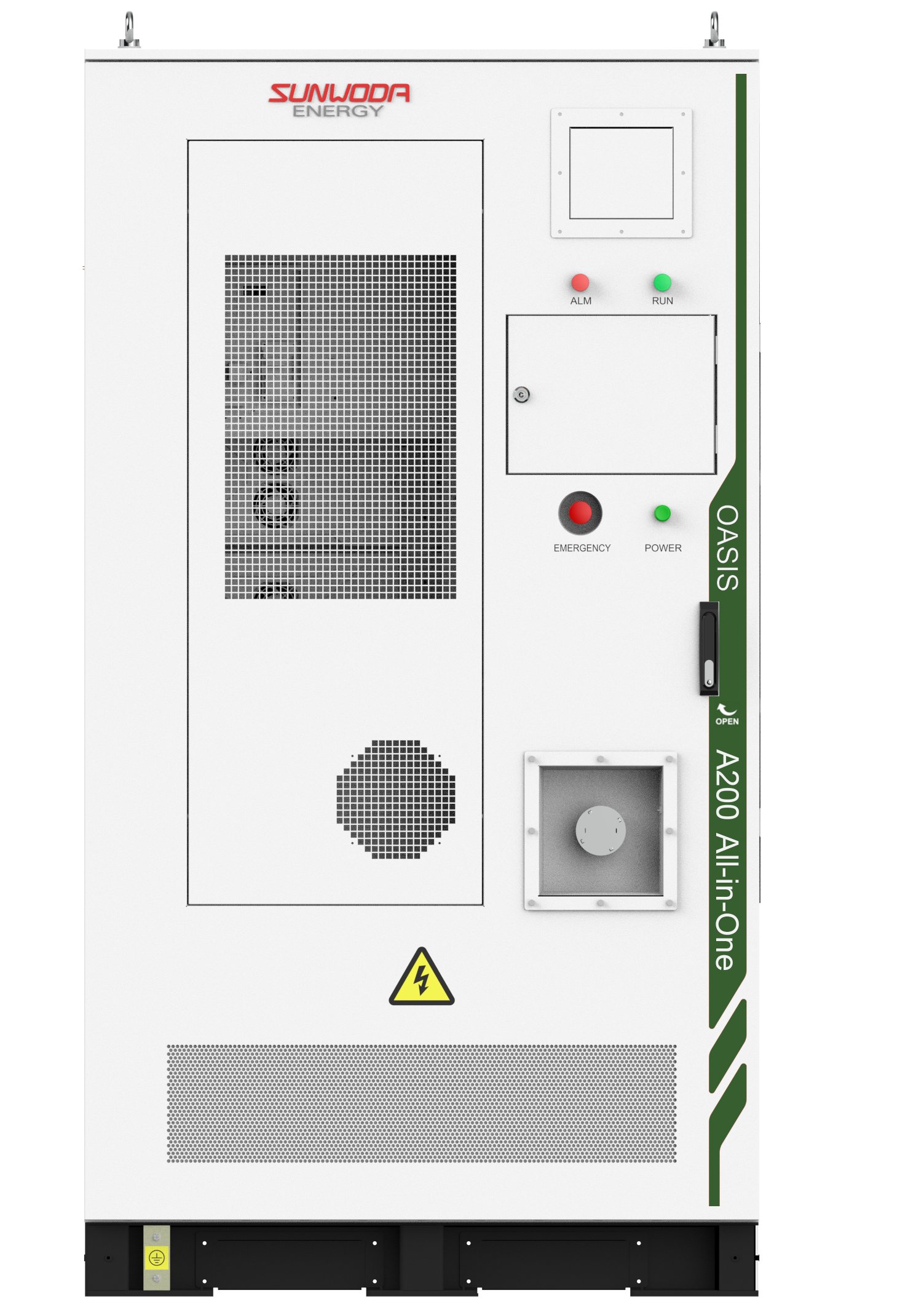

A200 All-in-one
Key Features:
- Cell type: Lithium Iron Phosphate (LFP)
- Advanced thermal management with built-in heating making it possible for full operation from 55°C to -30°C
- Modular design build from 120 kWh to 200 kWh.
- 100% Depth of discharge to maximize economy
- Built-in safety functions and intelligent management
- Cabinet dimensions (H/W/D): 2200 x 1150 x 1375 mm
- IP55 rated
- Compatible with the SMA Sunny Island X
Application Scenario:
- PV and storage integration
- Peak shaving and valley filling
- Emergency Backup
- Cloud platform scheduling
- Micro-grid
Good to know
Technical Specifications
| SKU | SWD-CIESS-120 | SWD-CIESS-160 | SWD-CIESS-200 | SWD-CIESS-A-200 |
|---|---|---|---|---|
| Intrastat Commodity Code | 85076000 | 85076000 | 85076000 | 85076000 |
Downloads /
Documents
Related Products
SMA Sunny Island X
The SMA Sunny Island X 30kW and 50kW represent their next generation of battery inverters. Suitable for multiple applications on-grid and off-grid the SMA Sunny Island X is extremely versatile.

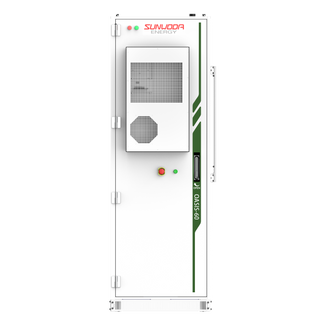

Sunwoda OASIS 60
The Oasis 60 kWh is a high-performance energy storage solution designed for commercial and industrial energy storage applications, supporting higher-capacity energy management requirements such as renewable integration, peak shaving, and backup power.

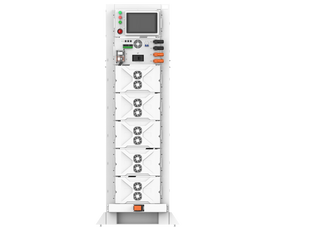

Sunwoda OASIS Rack Pro+
