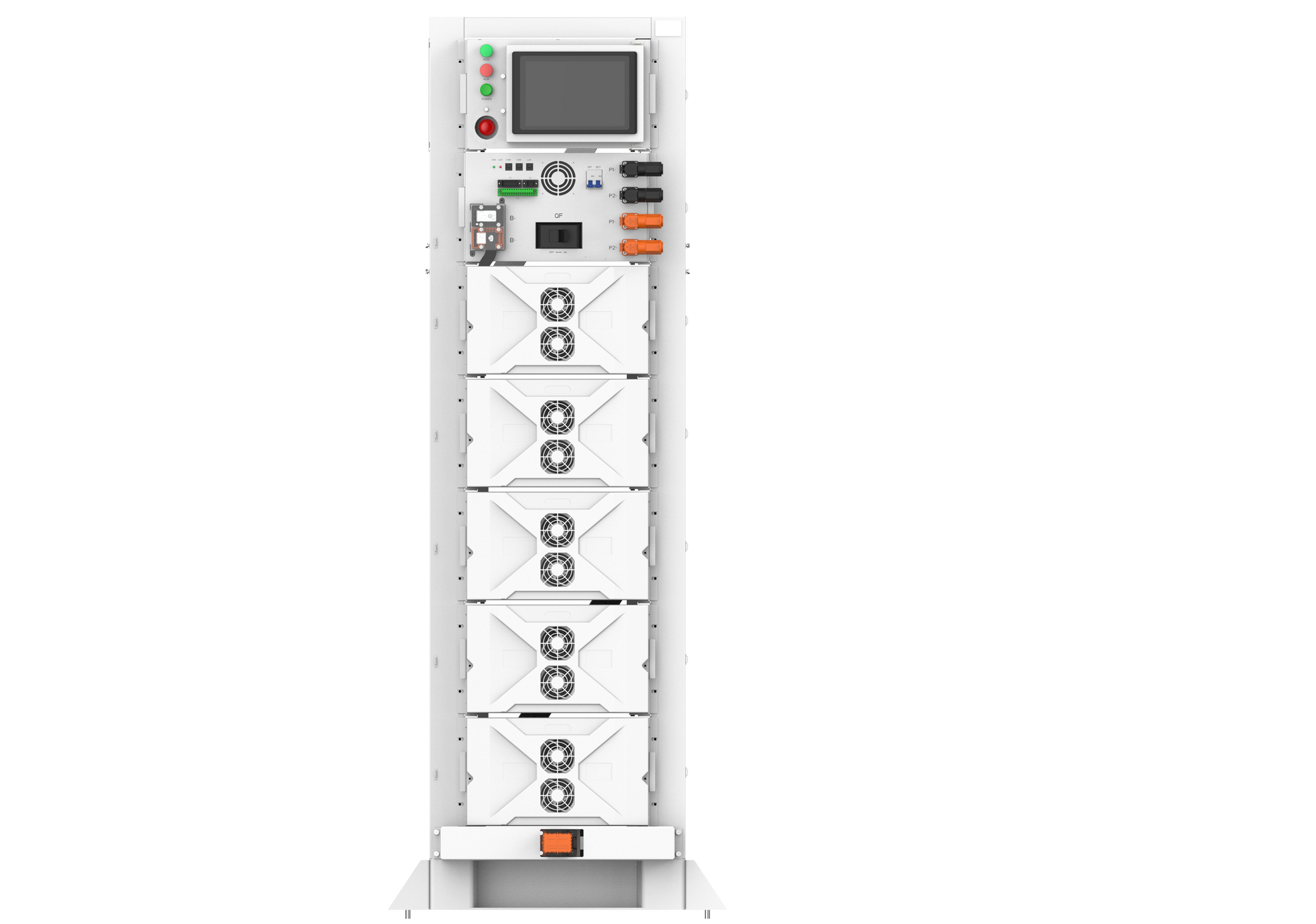

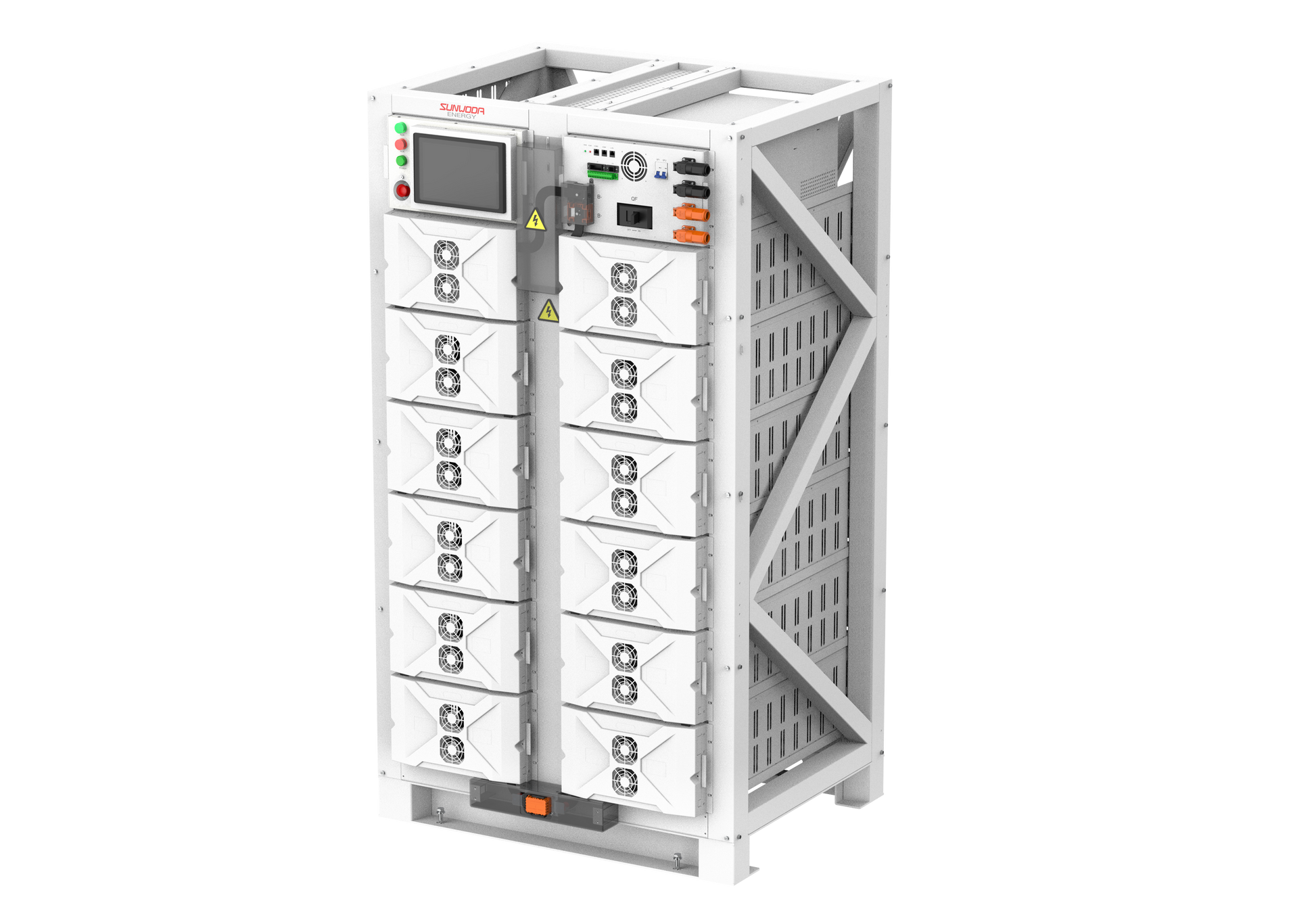

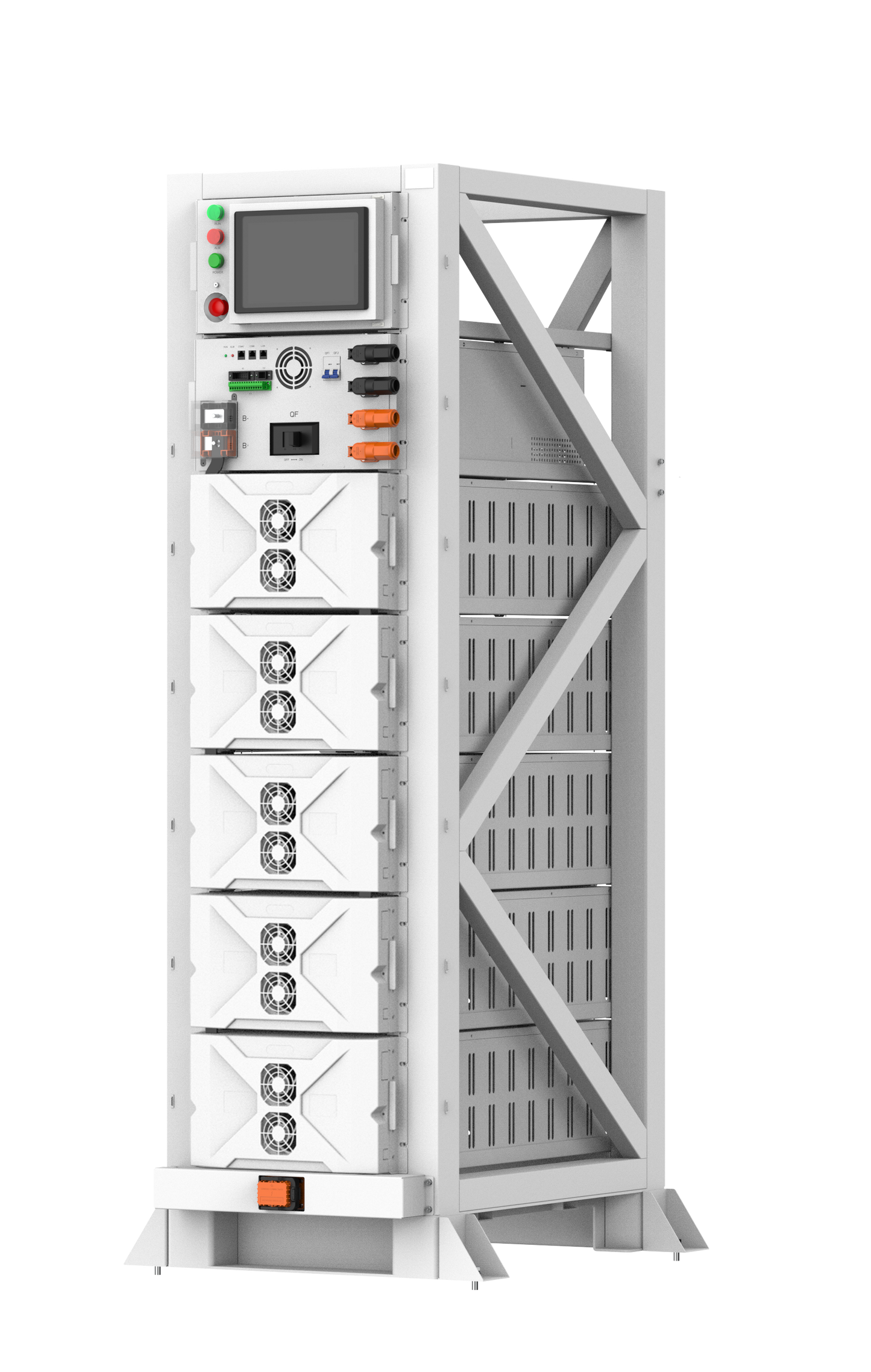

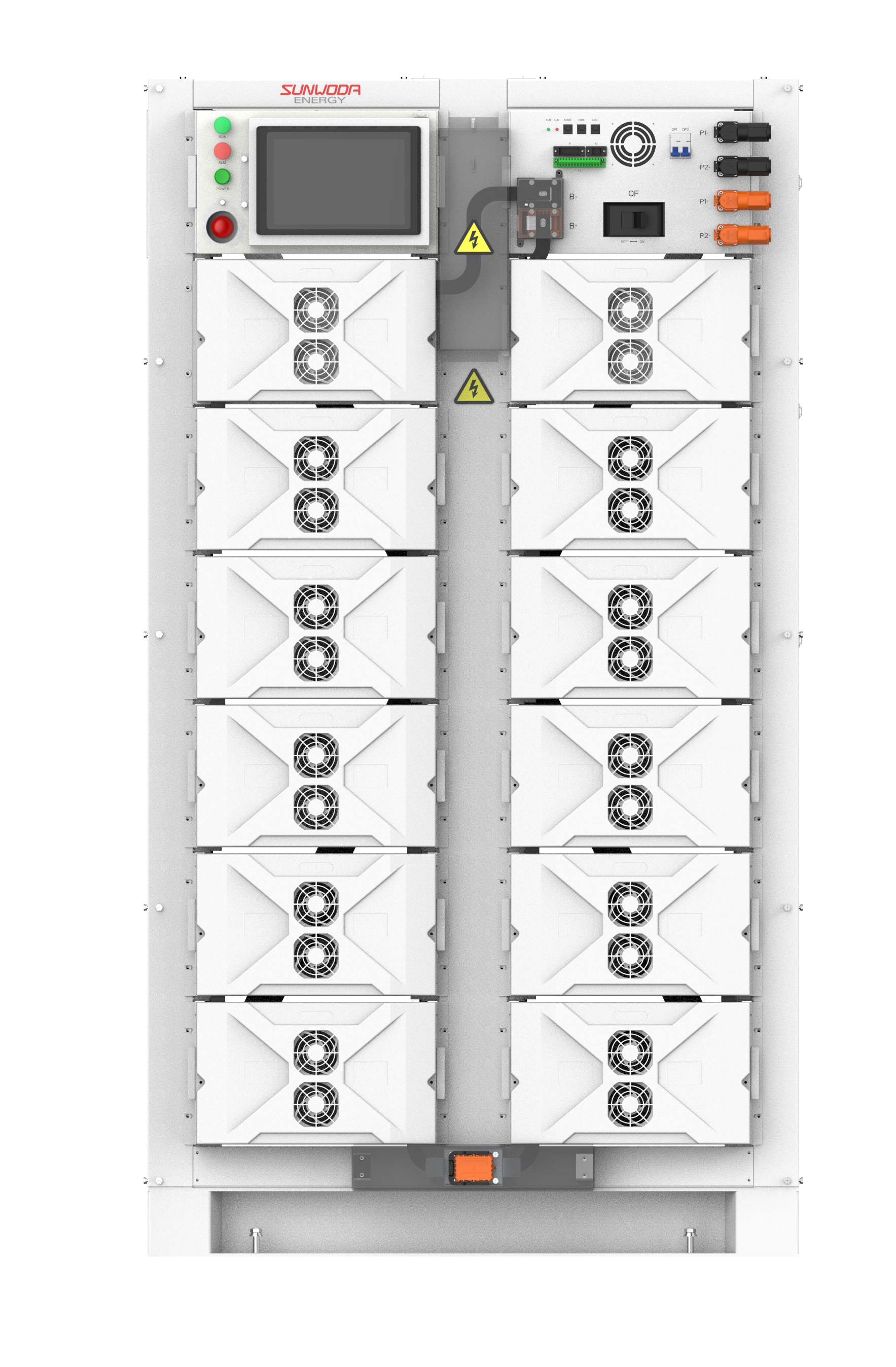

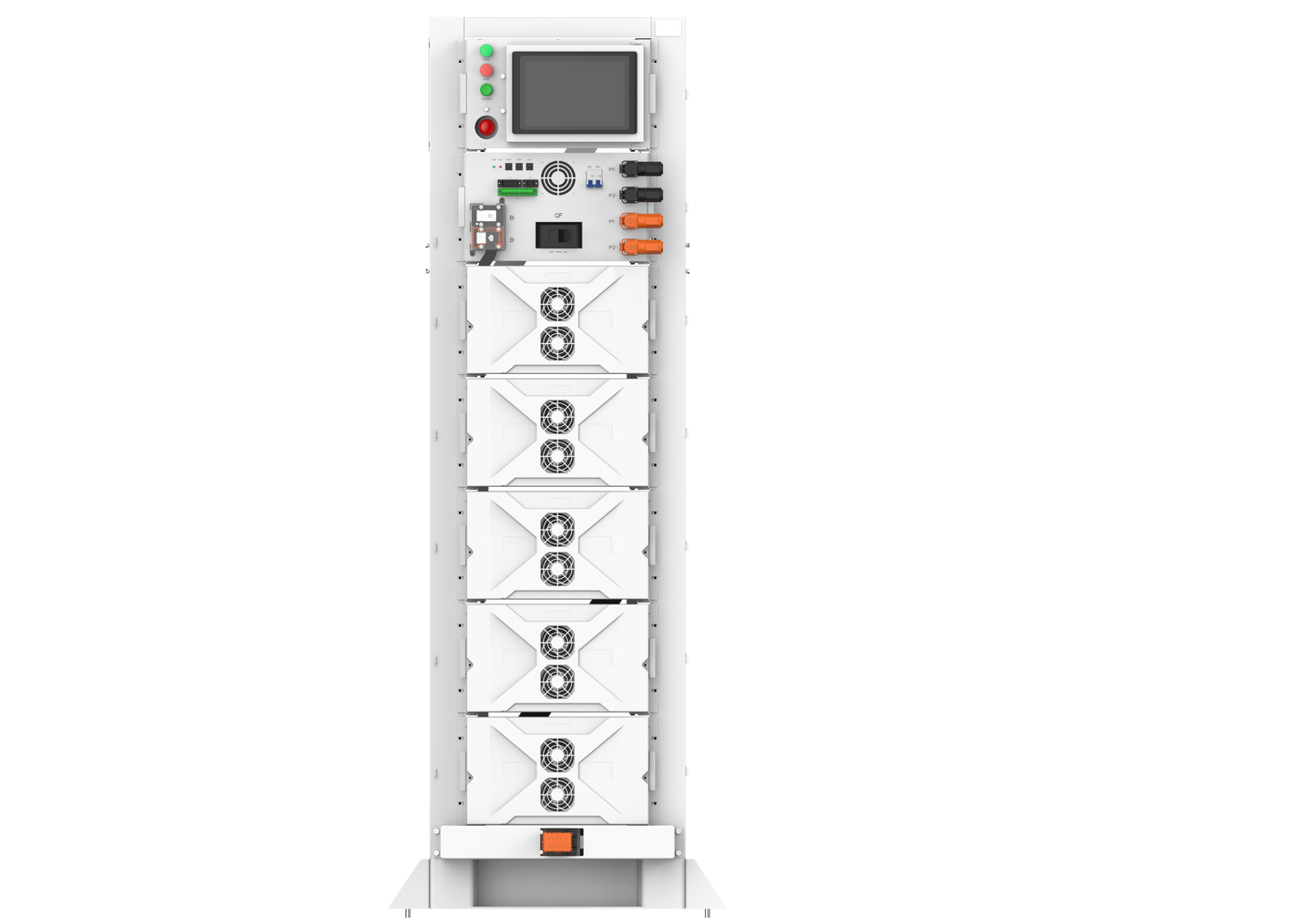

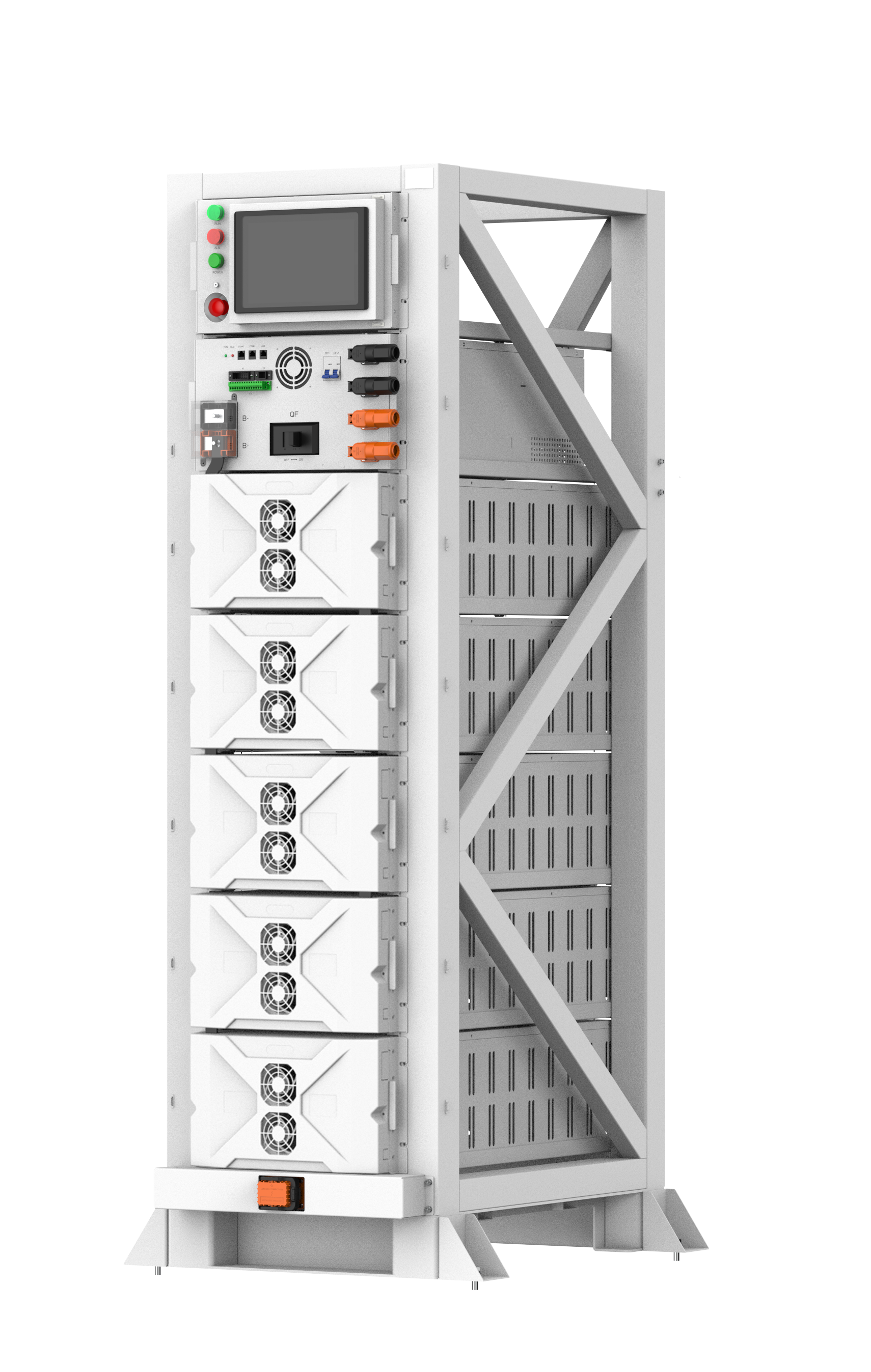

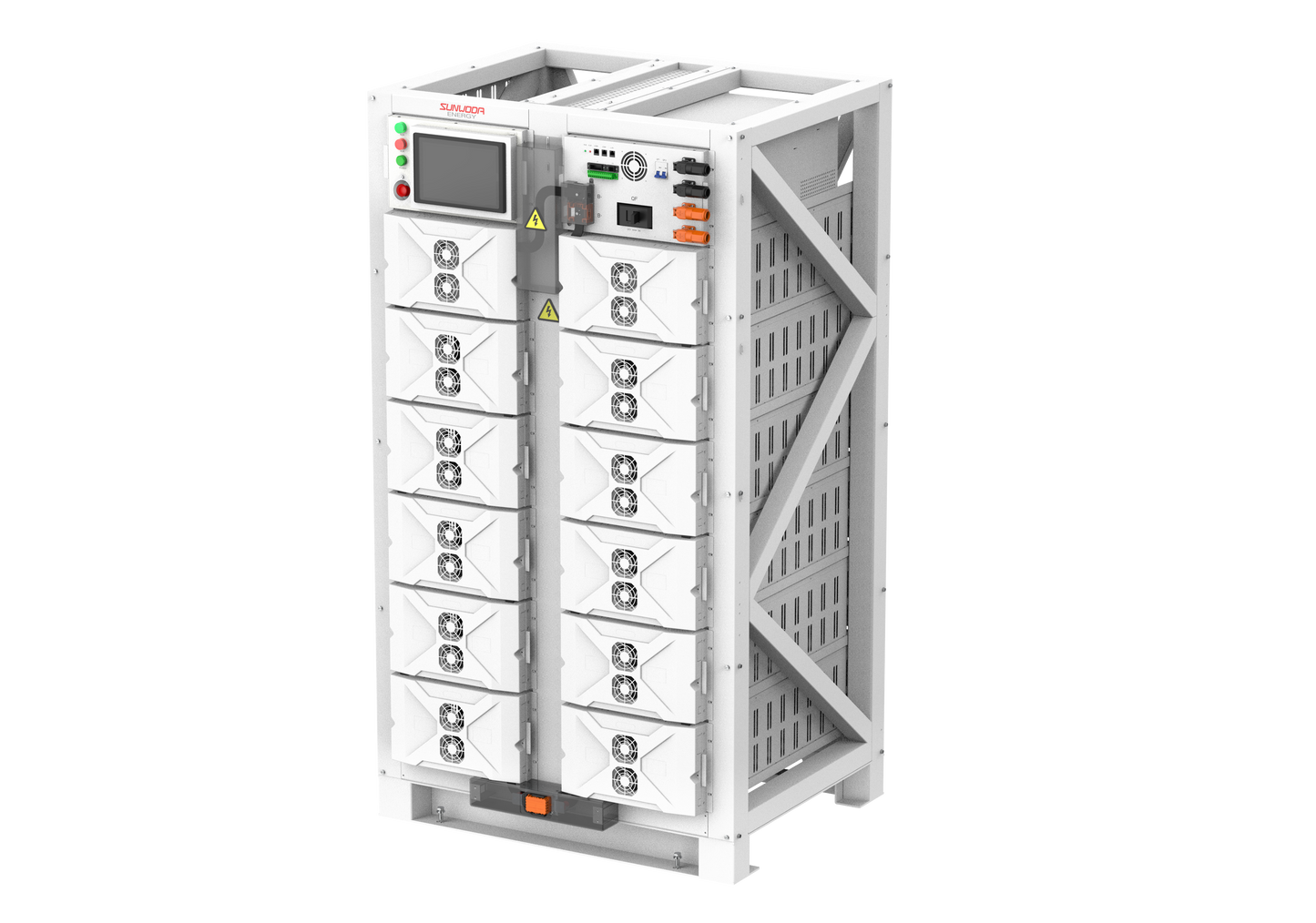

Sunwoda OASIS Rack Pro+
The Rack Pro+ is an indoor modular energy storage system designed to provide scalable battery capacity, allowing storage installations to expand as energy requirements grow.
Select model
| Variant | Price (exc tax) |
|---|---|
|
SWD-CIESS-100-RP
Sunwoda OASIS Rack Pro+, 100kWh, 314Ah, 1P20S*5, 290~360Vdc, indoor rack, air cooling |
Regular price
£18,190.07
Regular price
Unit price
per
|
|
SWD-CIESS-120-RP
Sunwoda OASIS Rack Pro+, 120kWh, 314Ah, 1P20S*6, 348~432Vdc, indoor rack, air cooling |
Regular price
£21,716.42
Regular price
Unit price
per
|
|
SWD-CIESS-160-RP
Sunwoda OASIS Rack Pro+, 160kWh, 314Ah, 1P20S*8, 464~576Vdc, indoor rack, air cooling |
Regular price
£26,475.56
Regular price
Unit price
per
|
|
SWD-CIESS-200-RP
Sunwoda OASIS Rack Pro+, 200kWh, 314Ah, 1P20S*10, 580~720Vdc, indoor rack, air cooling |
Regular price
£31,521.39
Regular price
Unit price
per
|
Sunwoda OASIS Rack Pro+
The Rack Pro+ is an indoor modular energy storage system designed to provide scalable battery capacity, allowing storage installations to expand as energy requirements grow.
Multi-Output Power: different inverter capacities can be used.
High Performance BMS: multi-level architecture using neural networks for intelligent SOC and SOH tracking.
Multi-Protection Design: cluster level active security isolation.
Flexible Installation: modular, plug and play installation with seamless parallel expansion.
Intelligent EMS: real-time monitoring, cloud set dimension, multi-platform display.
Key Features:
- Cell type: Lithium Iron Phosphate (LFP)
- Intelligent air cooling making it possible for operation from 0°C to 55°C
- Modular design build from 100 kWh up to 200 kWh
- 100% Depth of discharge to maximize economy
- Built-in safety functions and intelligent management
- Cabinet dimensions (H/W/D): 2060 x 1160 x 976mm
- IP20 Rated
- Compatible with the SMA Sunny Island X
Application Scenario:
- PV and storage integration
- Peak shaving and valley filling
- Emergency backup
- Micro-grid
- Cloud platform scheduling
Good to know
Technical Specifications
| SKU | SWD-CIESS-100-RP | SWD-CIESS-120-RP | SWD-CIESS-160-RP | SWD-CIESS-200-RP |
|---|---|---|---|---|
| Intrastat Commodity Code | 85076000 | 85076000 | 85076000 | 85076000 |
