Victron Blue Solar Charge Controller MPPT 75/10, 75/15,100/15 & 100/20

Victron Energy Logo
From £36.07
From £36.07
Sale Sold out
Shipping calculated at checkout.

These Victron Blue Solar Charge Controllers support a PV input with a maximum open circuit voltage of 75V or 100V respectively and have a maximum output of 20A. They work with and will automatically recognise 12V and 24V battery systems, except the VBS-MPPT100/20-48 which can be used with 12, 24 or 48V systems.

See full details

Retail customers
Many of the products we supply require training and experience to install, we recommend seeking the assistance of a professional to help you with your project.

Find the right installer for you

Trade customers
Please login or apply for a trade account for trade pricing, check stock and order online.

Log in / Apply for a trade account

Select model

Variant Price (exc tax)

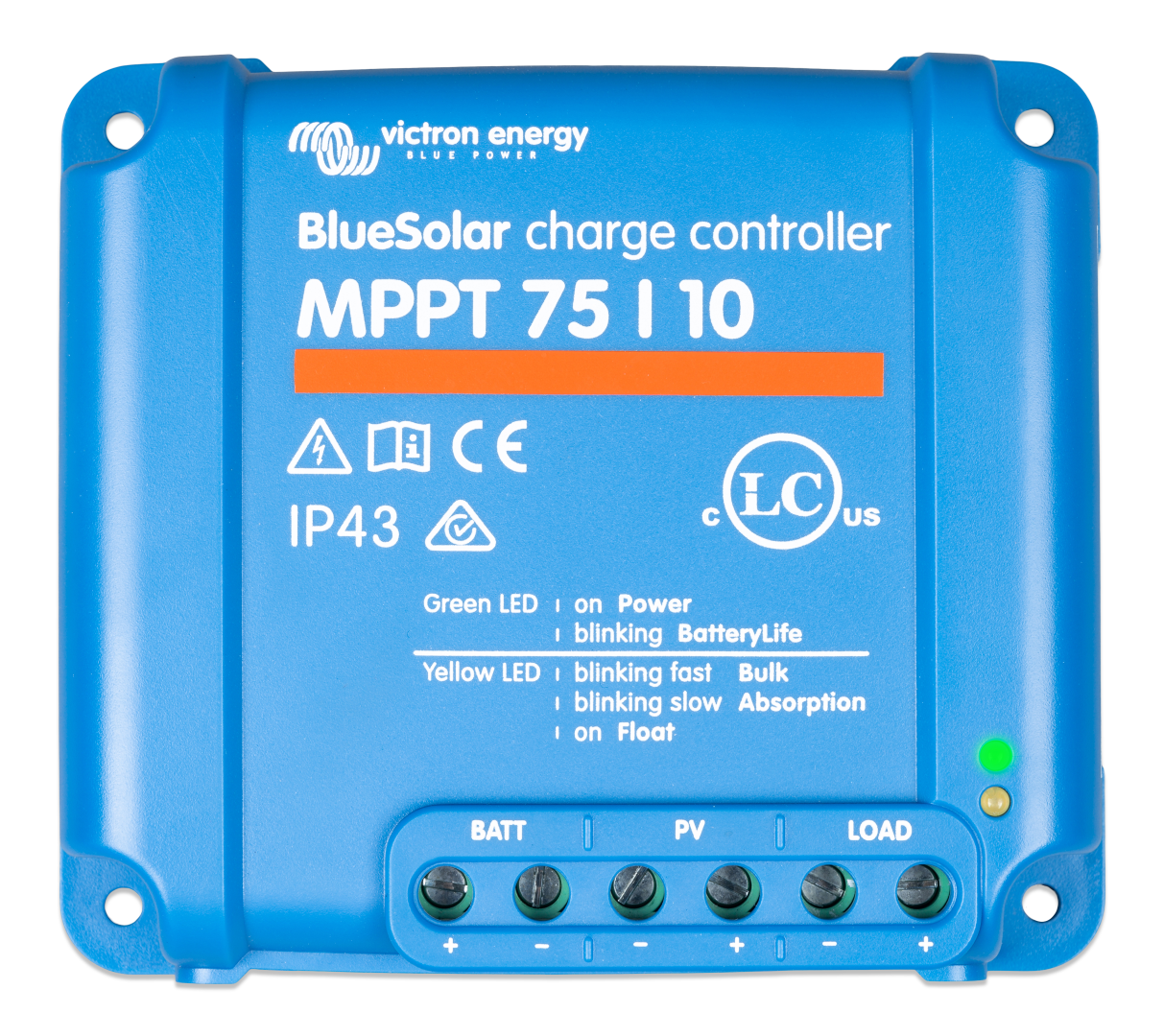

VBS-MPPT75/10
BlueSolar MPPT 10A charge controller 75V input 12/24Voutput
£36.07
£36.07
VBS-MPPT75/15
BlueSolar MPPT 15A charge controller 75V input 12/24Voutput
£40.10
£40.10
VBS-MPPT100/15
BlueSolar MPPT 15A charge controller 100V input 12/24Voutput
£54.35
£54.35

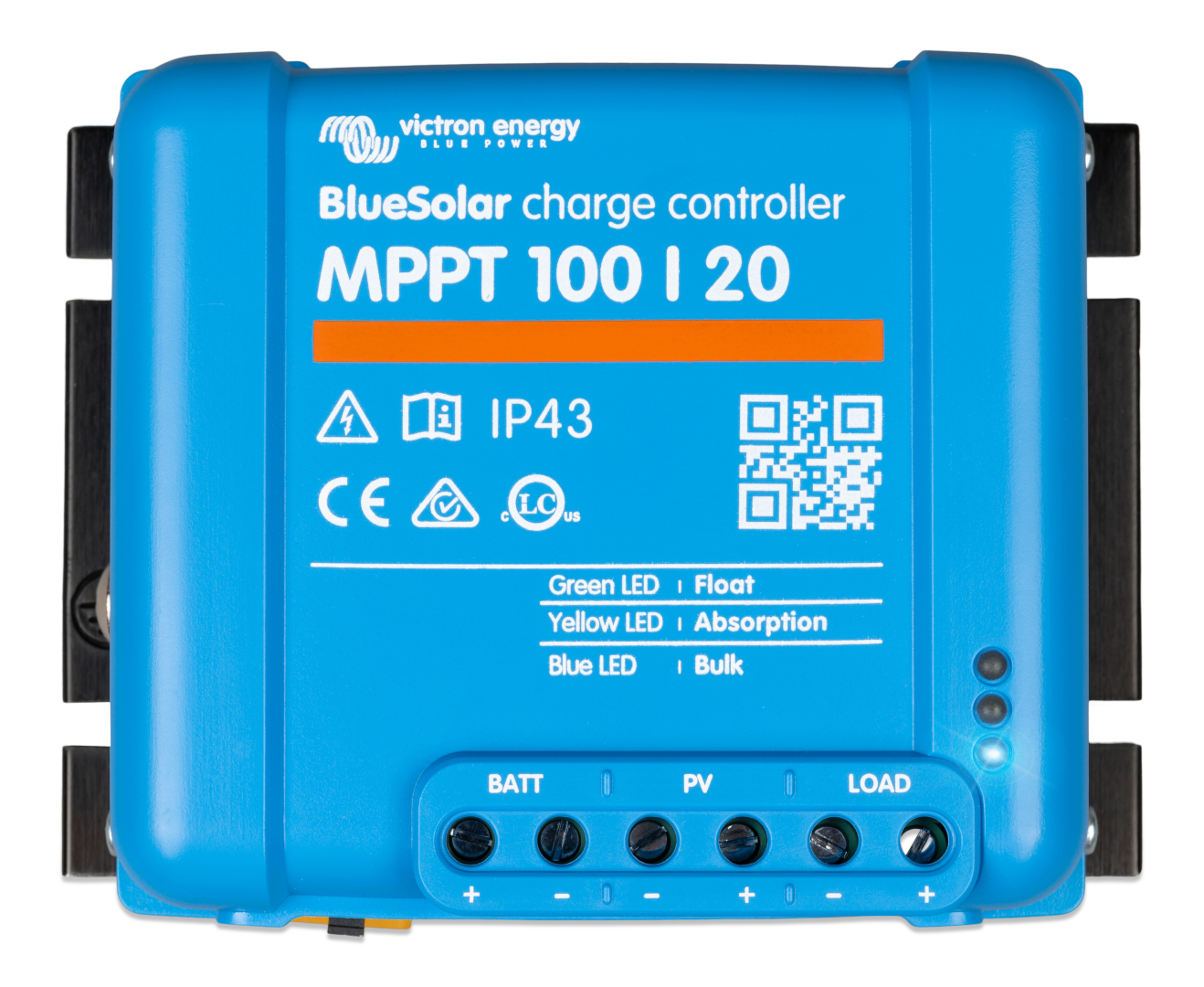

VBS-MPPT100/20-48
BlueSolar MPPT 20A charge controller 100V input 12/24/48V
£58.52
£58.52
(exc tax)
Login for trade prices

Victron Blue Solar Charge Controller MPPT 75/10, 75/15,100/15 & 100/20

These Victron Blue Solar Charge Controllers support a PV input with a maximum open circuit voltage of 75V or 100V respectively and have a maximum output of 20A. They work with and will automatically recognise 12V and 24V battery systems, except the VBS-MPPT100/20-48 which can be used with 12, 24 or 48V systems.

Highlights:

  • Ultra fast Maximum Power Point Tracking (MPPT)
  • 6 mm² screw terminals
  • Up to 98% efficient
  • Load output, connect ≤20A loads to be automatically disconnected/reconnected by the charge controller to stop the battery being over discharged
    • ≤1A on 48V model
  • BatteryLife: intelligent battery management algorithm, designed to increase the battery's life (see data sheet for details)
  • Resin encapsulated electronics, added protection from the environment
  • Automatic battery voltage recognition, no need to configure for 12V/24V systems
  • 5 years warranty

Quick Links

Technical Specifications

Downloads

Good to know

Technical Specifications

SKUVBS-MPPT75/10VBS-MPPT75/15VBS-MPPT100/15VBS-MPPT100/20-48
System Battery Voltage 12V, 24V 12V, 24V 12V, 24V 12V, 24V, 36V*, 48V
Max VOC 75V 75V 100V 100V
MPPT Trackers 1 1 1 1
Connectivity VE.Direct VE.Direct VE.Direct VE.Direct
Connection Screw terminals Screw terminals Screw terminals Screw terminals
Height 100 100 100 100
Width 113 113 113 113
Depth 40 40 50 60
Weight (kg) 0.5 1.3 1.3 0.7
Packaging Height 210 210 210 210
Packaging Width 150 150 150 150
Packaging Depth 50 50 50 50
Warranty 5 5 5 5
IP Rating IP43 (electronic components), IP22 (connection area) IP43 (electronic components), IP22 (connection area) IP43 (electronic components), IP22 (connection area) IP43 (electronic components), IP22 (connection area)
On Grid / Off Grid Off Grid Off Grid Off Grid Off Grid
Lithium Compatibility Yes* Yes* Yes* Yes*
Intrastat Commodity Code 85044055 85044055 85044055 85044055

Downloads / Documents

Related Products

1 3

*see manufacturer's documentation for further information
