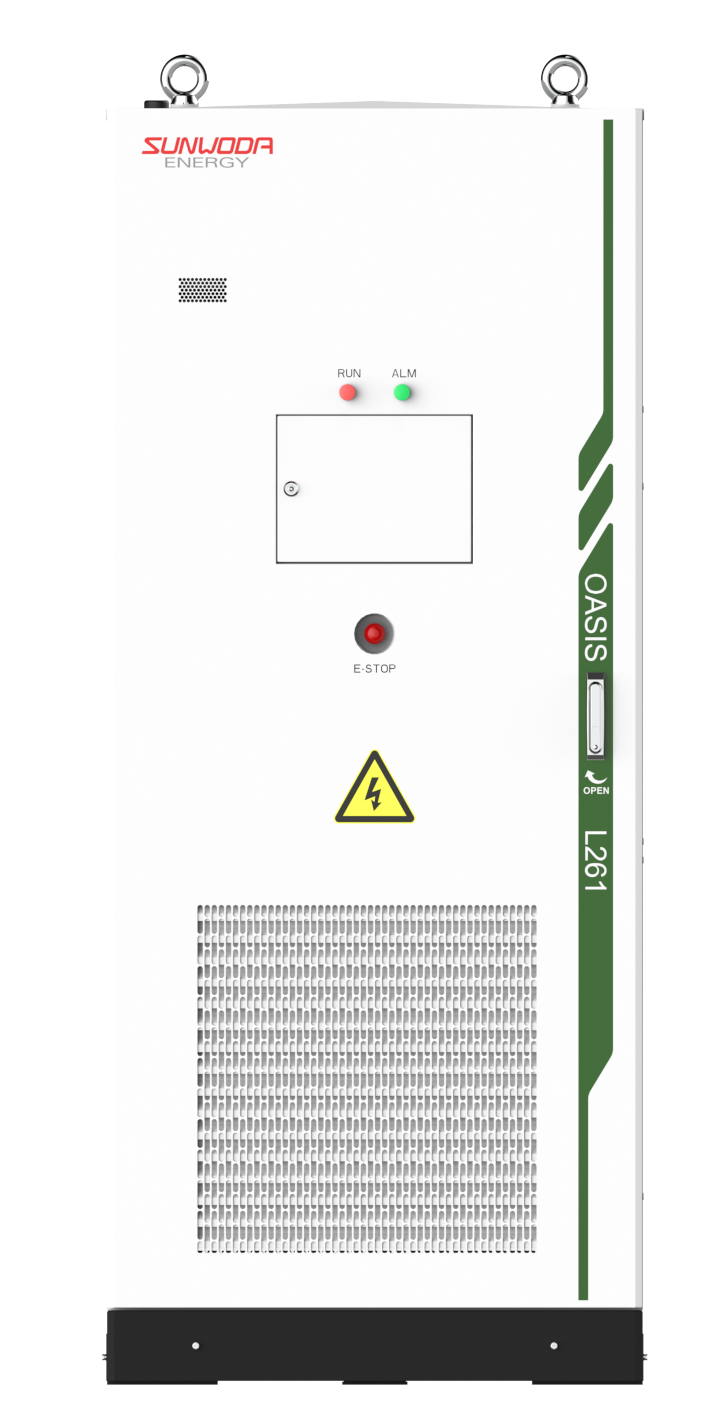

Sunwoda OASIS L261
The Sunwoda OASIS L261 is a modular, outdoor rated, high-security energy energy storage solution with 261kWH useable capacity. Designed to optimise commercial and industrial power management by enabling easy system scaling through parallel expansion, helping businesses lower electricity costs via peak-shaving and providing secure uninterrupted operations with emergency backup power.
Select model
| Variant | Price (exc tax) |
|---|---|
|
SWD-CIESS-L261
Sunwoda OASIS L261, 261kWh, 314Ah, 1P52S*5, IP55 outdoor cabinet, liquid cooling |
Regular price
£44,706.51
Regular price
Unit price
per
|
|
SWD-CIESS-L-L261
Sunwoda OASIS L261 All-in-One, 125/261kWh, 314Ah, 1P52S*5, IP55 outdoor cabinet, liquid cooling |
Regular price
£47,325.47
Regular price
Unit price
per
|
Sunwoda OASIS L261
The Sunwoda OASIS L261 is a modular, outdoor rated, high-security energy energy storage solution with 261kWH useable capacity. Designed to optimise commercial and industrial power management by enabling easy system scaling through parallel expansion, helping businesses lower electricity costs via peak-shaving and providing secure uninterrupted operations with emergency backup power.

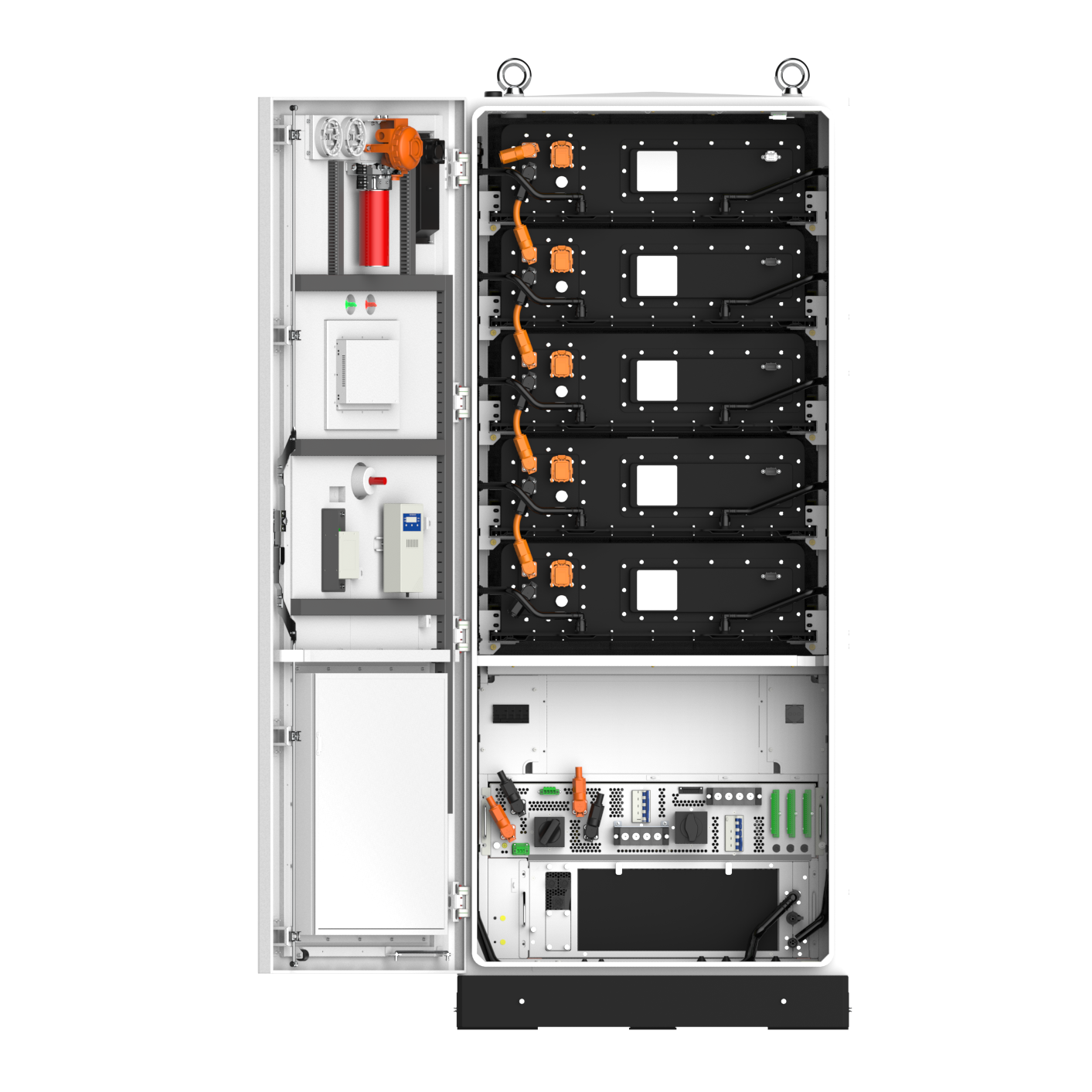

The system features a fully integrated architecture comprising battery PACKs, control box, BMS, fire suppression system.
Optional STS (Static Transfer Switch - for seamless switching to back-up mode) also available (must be specified at time of ordering).

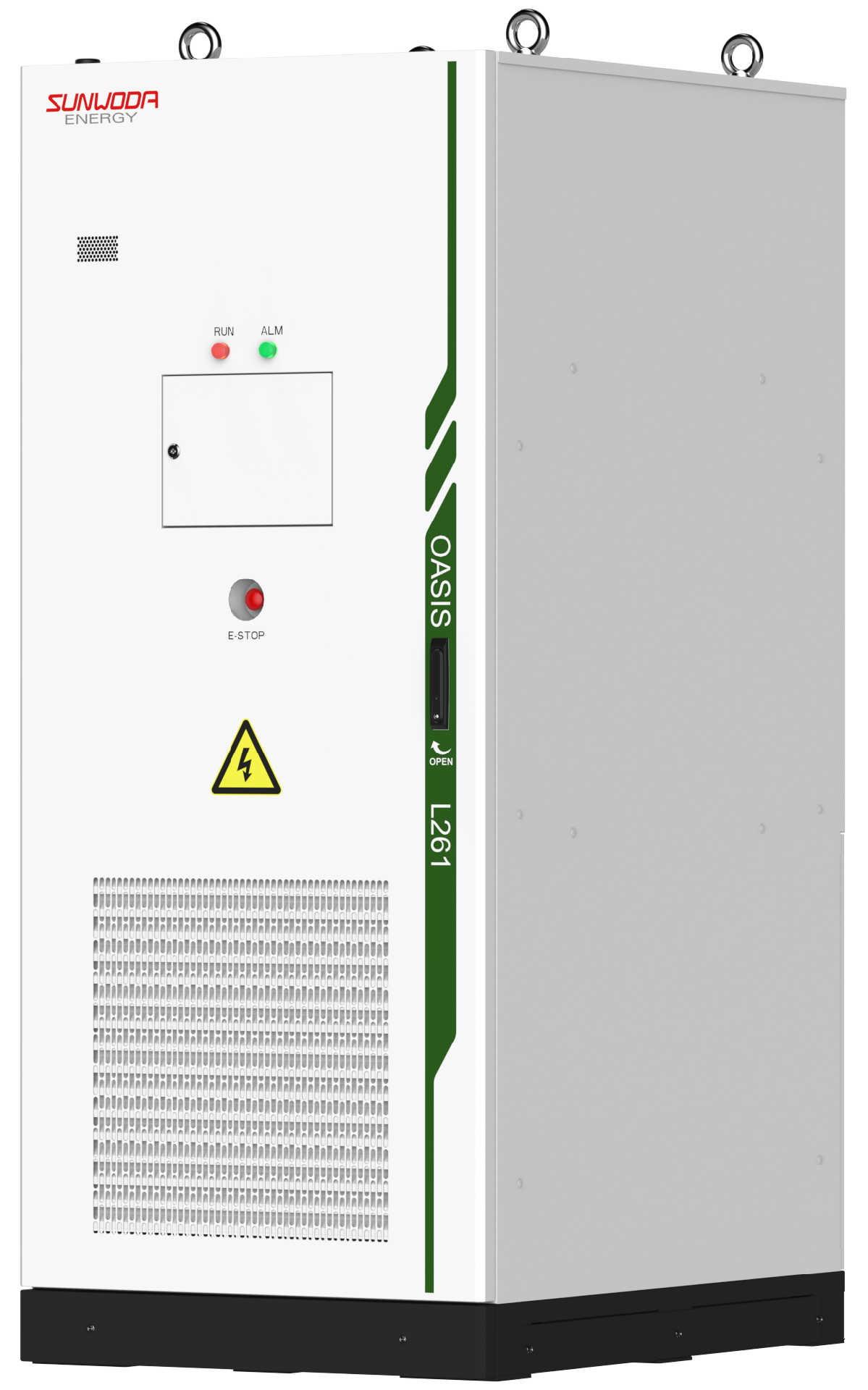

L261
261kWh battery storage only version for use with external battery inverter such as the SMA Sunny Island X 30/50

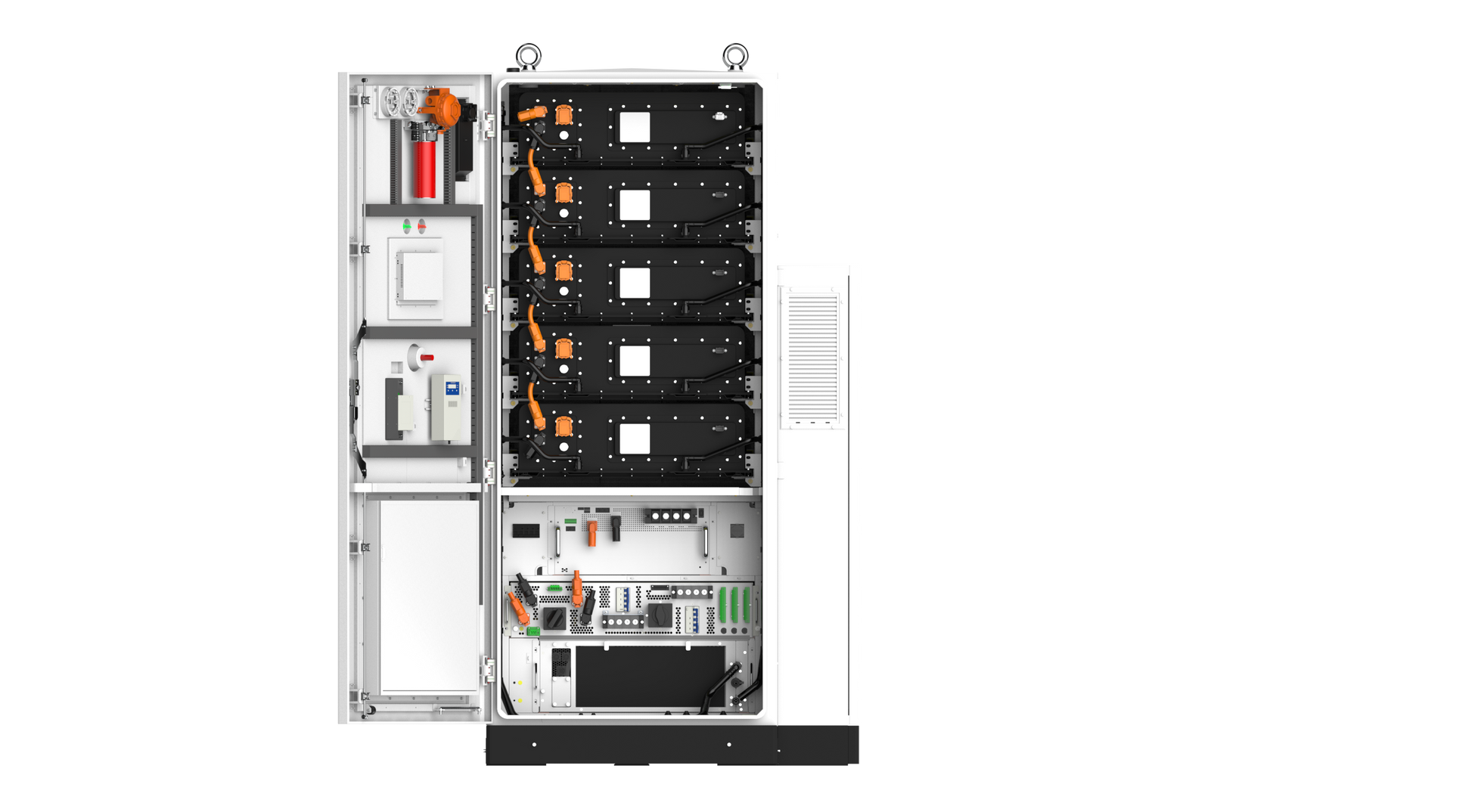

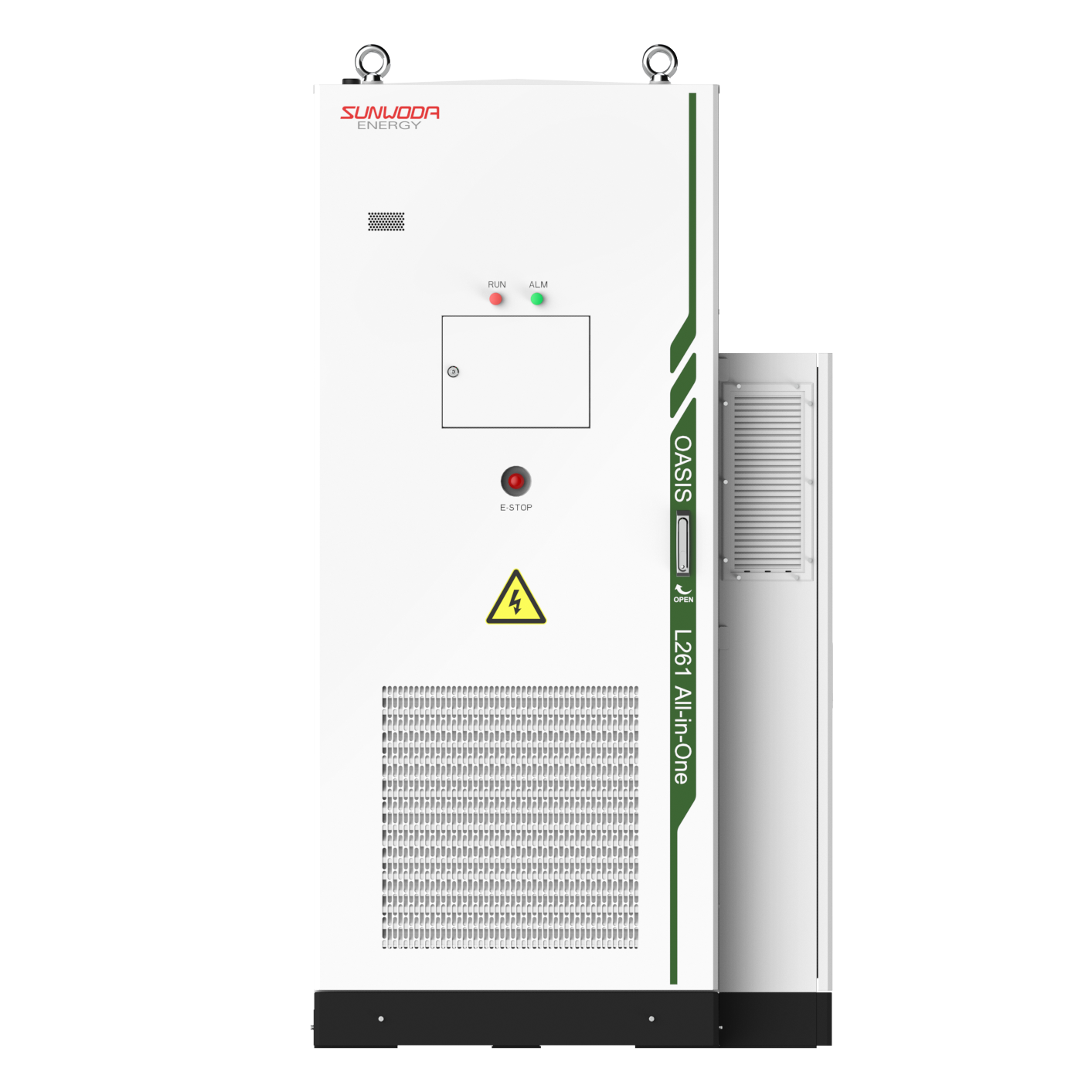

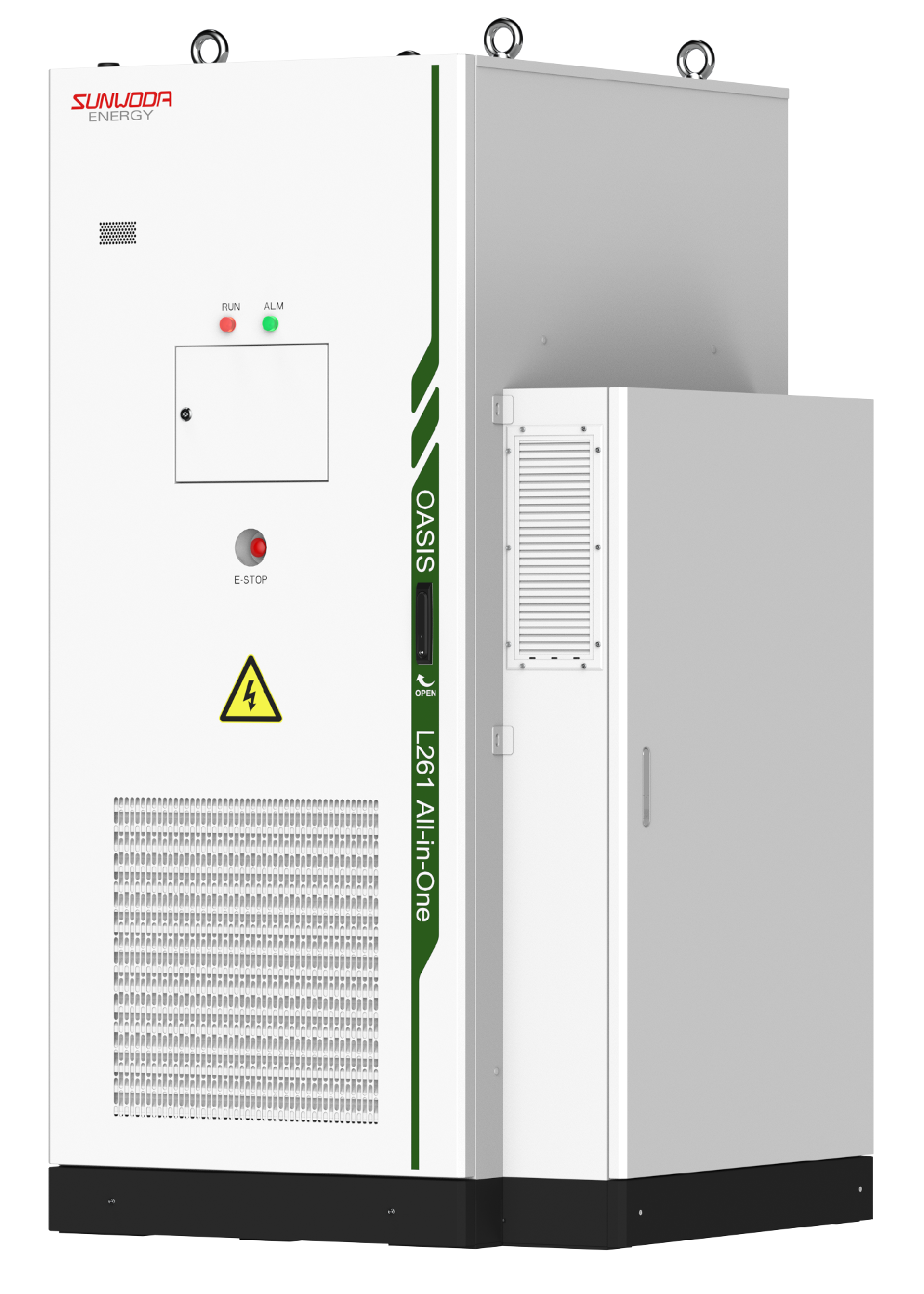

L261 All-In-One
All-in-One version includes 125kW 3-phase inverter/charger and 261kWh battery storage
Key Features:
Long Life Cell: Using Sunwoda self-developed long-life battery cells.
Multi-Protection Design: Equipped with multiple sensors, aerosol fire suppression, anti-explosion valve and water fire protection port.
Flexible Installation: Modular, plug-and-play, parallel expansion
Application Scenario:
- PV and storage integration
- Peak shaving and valley filling
- Emergency backup power
- Cloud-based platform scheduling
- Micro-grid applications
L261
For use with external battery/hybrid inverter such as the SMA Sunny Island X 30/50
L261 All-In-One
All-in-One version includes 125kW 3-phase inverter/charger and 261kWh battery storage.
Good to know
Technical Specifications
| SKU | SWD-CIESS-L261 | SWD-CIESS-L-L261 |
|---|---|---|
| Intrastat Commodity Code | 85076000 | 85076000 |
Related Products
SMA Sunny Island X
The SMA Sunny Island X 30kW and 50kW represent their next generation of battery inverters. Suitable for multiple applications on-grid and off-grid the SMA Sunny Island X is extremely versatile.
Sunwoda OASIS 60
The Oasis 60 kWh is a high-performance energy storage solution designed for commercial and industrial energy storage applications, supporting higher-capacity energy management requirements such as renewable integration, peak shaving, and backup power.
Sunwoda OASIS A200
The A200 system combines battery storage and system control into a compact integrated platform, designed to simplify installation while delivering reliable energy storage performance. It ensures uninterrupted backup for critical loads serving as a reliable alternative to traditional UPS systems. It also supports micro-grid applications in remote or off-grid areas and features an intelligent LCU with cloud platform capabilities for real-time monitoring, remote scheduling, and efficient energy management.
Sunwoda OASIS Rack Pro+
The Rack Pro+ is an indoor modular energy storage system designed to provide scalable battery capacity, allowing storage installations to expand as energy requirements grow.

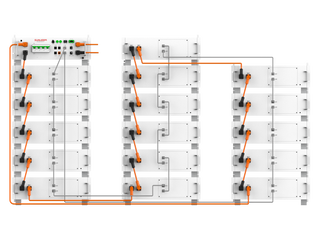

Sunwoda OASIS Flex
