Collection: Products

• Easy to install 4 fused circuits using blade fuses
• Mounts on the battery terminal stud
• Screw terminals for securing wires

Standard blade type fuse, 32 V DC rated

Complete tool for the assembly of the original MC4 connectors.

Crimping pliers for crimping both MC4 and MC4-Evo 2 connectors

Stäubli MC4 branch connectors for parallel connections.

• Locking fit

• IEC 62852 DC voltage rating - 1000V
• IEC 62852 DC Current rating - 39A (4-6sqmm cable), 45A (10sqmm cable)

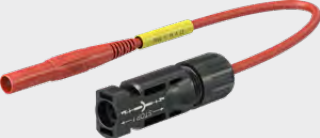

This test plug is used to check the correct location of the MC4 EVO 2 contact in the insulation.

This test plug is used to check the correct location of the MC4 contact in the insulation.

This set contains all the tools specifically designed for professional field installation of the entire Original MC4 product family. The assembly of PV connectors can make or break a project, by using the Stäubli toolset for PV connector field installation you will improve the quality and reliability of the PV DC connection. Supplied with crimp die-set suitable for 4, 6 and 10 sq mm connectors.

The MC4 is now available in an easy-to-use snap-in PV connector. The MC4-Evo Ready is quick to install as it enables crimp-free assembly without the need for special tools allowing savings in time whilst still ensuring Stäubli quality.

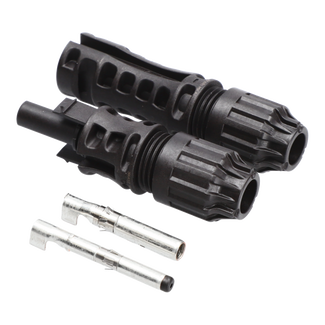

The Stäubli MC4-Evo Stor are DC connectors designed specifically to allow connection of battery energy storage systems (BESS) whilst avoiding the possibility of mis-matching errors between BESS and PV strings.

The Staubli MC4-Evo2 is latest version of the MC4 connector.

Assembly and unlocking tool, for use with MC4/MC4 Evo2 connectors to tighten and unscrew the cable gland and to open the locking device of the connection.

Assembly and unlocking tool, for use with MC4-Evo ready connectors to tighten and unscrew the cable gland and to open the locking device of the connection.

Stäubli recommend the this slotted socket wrench insert to ensure correct assembly of connectors.
